Home >> Ford >> 2009 >> Mustang V6-4.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> System Specifications >> Additional Specifications

Additional Specifications

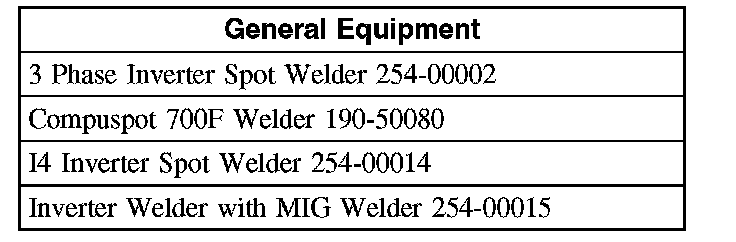

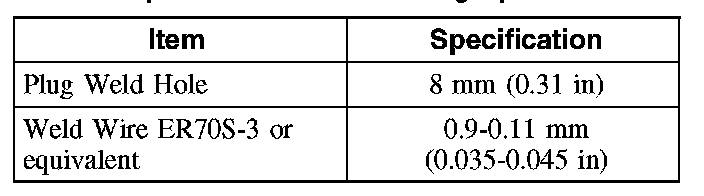

General Specifications - Welding Specifications

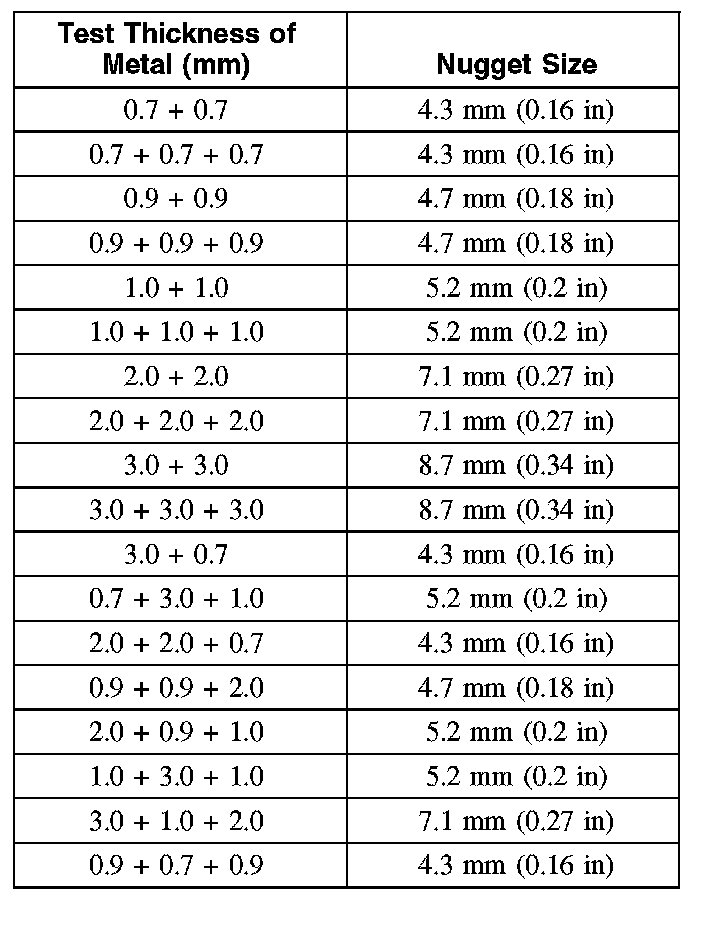

Weld Nugget Chart
