Inertia Fuel Shutoff Switch: Service and Repair

Inertia Fuel Shutoff (IFS) Switch

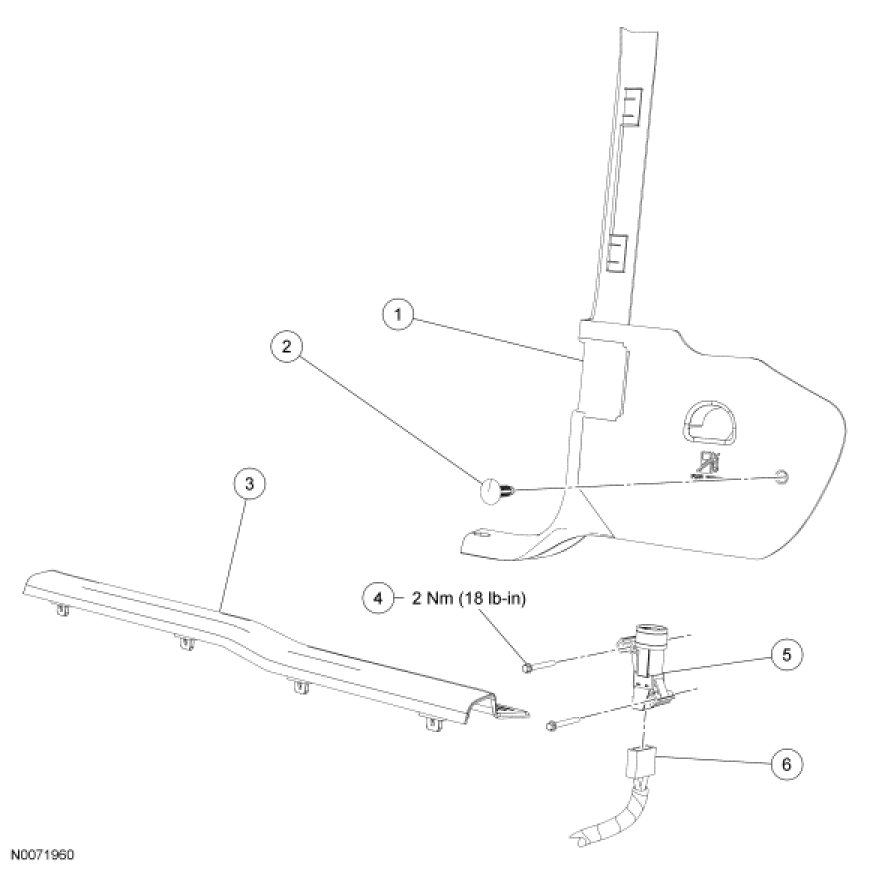

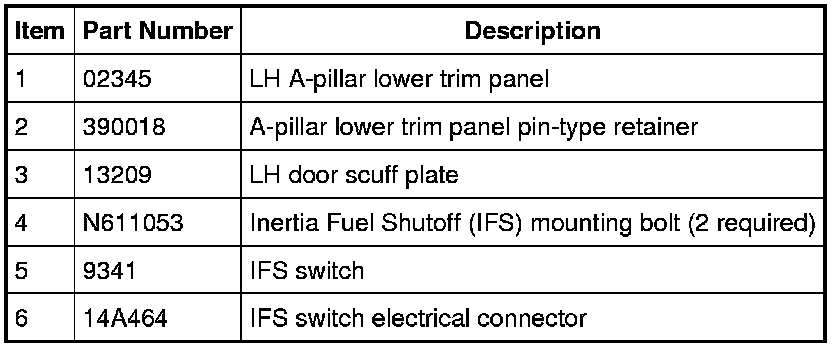

Removal and Installation

1. Remove the LH door scuff plate.

2. Remove the LH A-pillar lower trim panel.
- Remove the pin-type retainer and the trim panel.

3. Disconnect the Inertia Fuel Shutoff (IFS) switch electrical connector.

4. NOTICE: Do not overtighten the fasteners or damage to the switch will occur.

Remove the 2 bolts and the IFS switch.

- To install, tighten to 2 Nm (18 lb-in).

5. To install, reverse the removal procedure.
- If necessary, reset the IFS switch after the installation has been completed.
