Dimmer Switch: Service and Repair

Instrument Panel Dimmer Switch









Removal and Installation

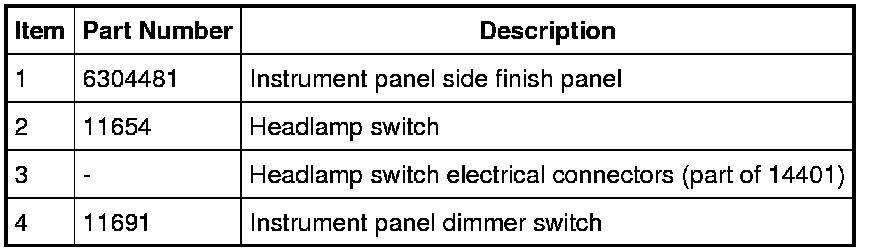

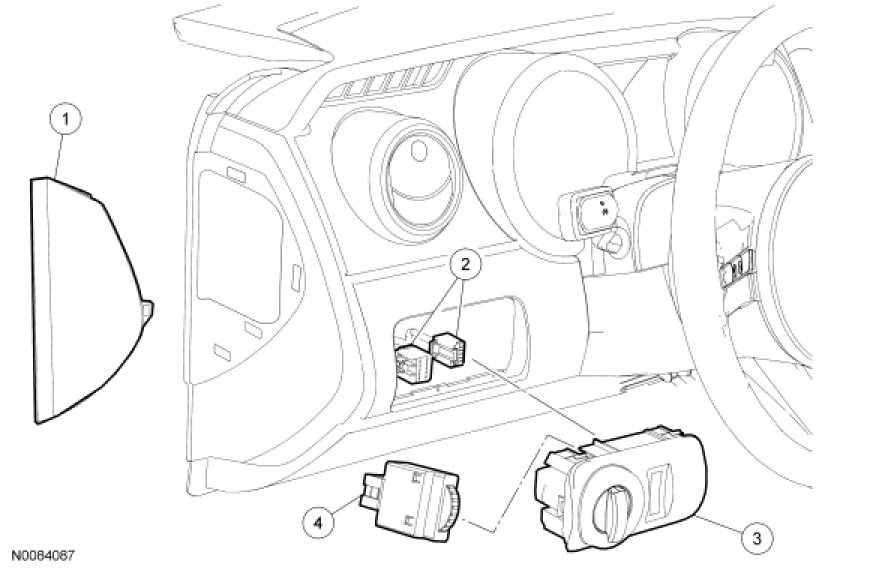

1. Remove the instrument panel side finish panel.

2. NOTE: The headlamp switch is removed by pushing from behind.

Remove the headlamp switch.

- Disconnect the electrical connectors.

3. NOTE: The instrument panel dimmer switch is removed by releasing the tabs and pulling from behind.

Release the tabs and remove the instrument panel dimmer switch assembly.

4. To install, reverse the removal procedure.
