Wheel Speed Sensor Ring - Rear

Wheel Speed Sensor Ring - Rear





Removal

1. Remove the rear axle shaft.

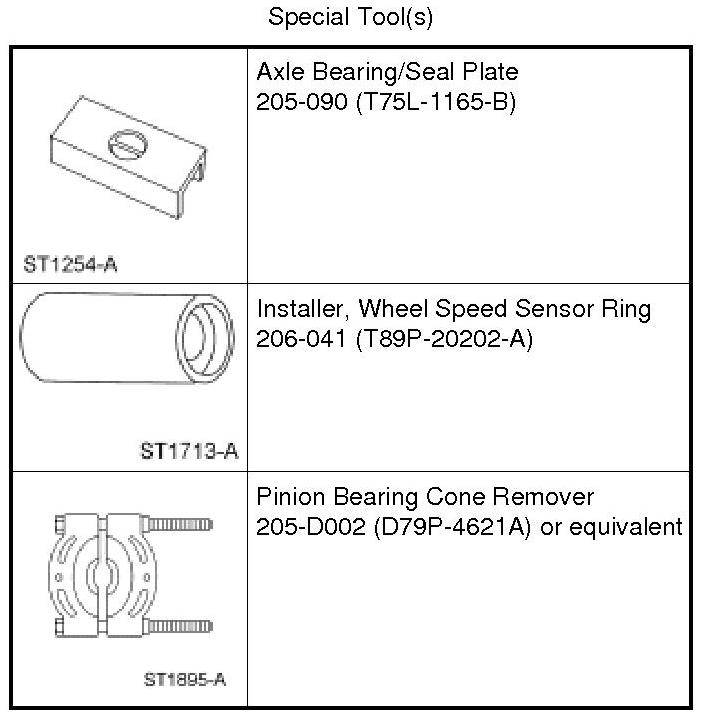

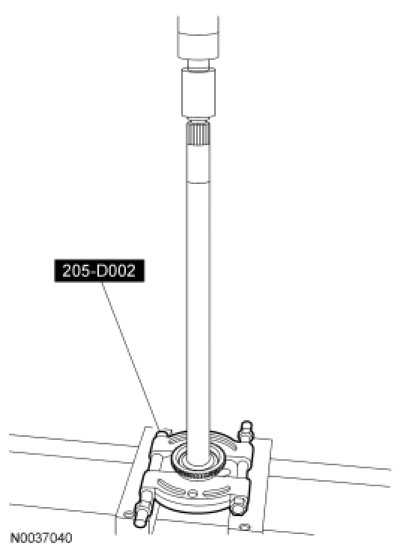

2. Using the Pinion Bearing Cone Remover, remove the anti-lock brake sensor indicator from the axle shaft.





Installation

1. Using the Axle Bearing/Seal Plate and the Wheel Speed Sensor Ring Installer, align the rear anti-lock brake sensor indicator to the rear axle shaft.

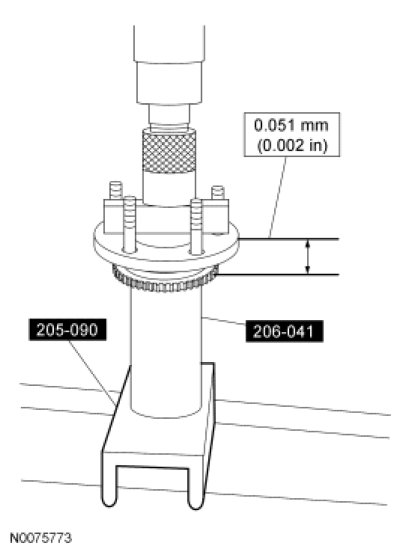

2. Using the Axle Bearing/Seal Plate and the Wheel Speed Sensor Ring Installer, press the rear anti-lock brake sensor on the rear axle shaft to specification.





3. Install the rear axle shaft.
