Wheel Speed Sensor Ring - Front

Wheel Speed Sensor Ring - Front





Removal

1. Remove the front hub and bearing assembly.

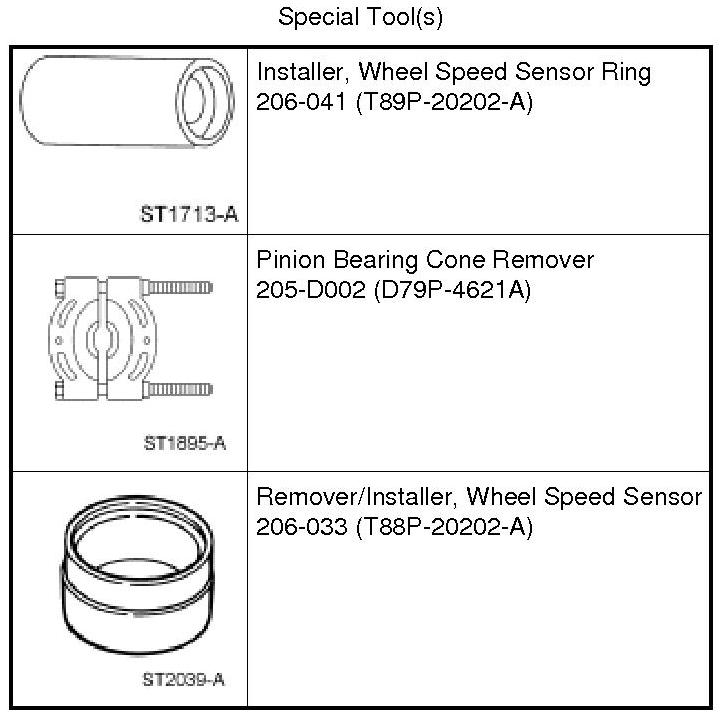

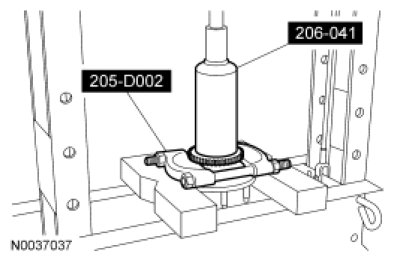

2. Using the Pinion Bearing Cone Remover and the Wheel Speed Sensor Ring Installer, remove the front wheel speed sensor ring from the front hub.





Installation

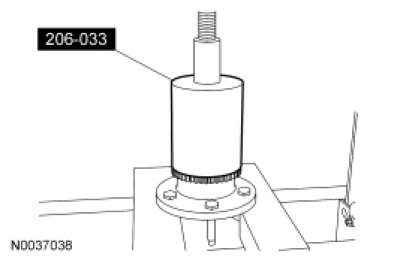

1. Using the Wheel Speed Sensor Remover/Installer, install the front wheel speed sensor ring to the front hub.





2. Install the front hub and bearing assembly.
