Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear

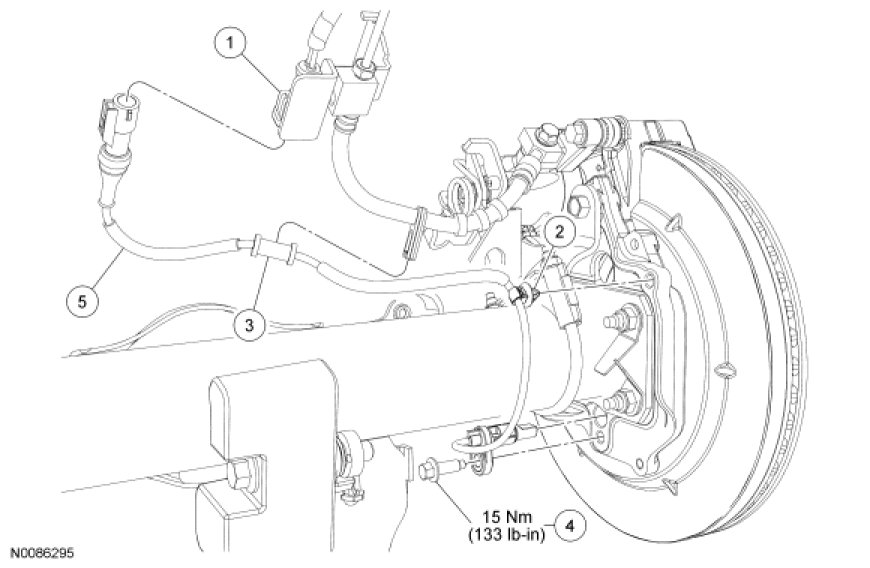

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

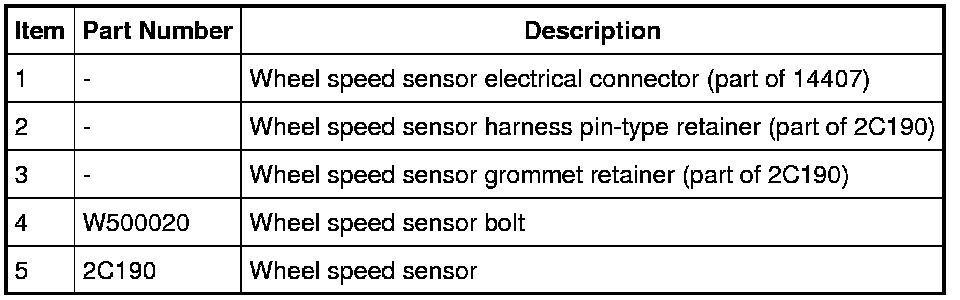

2. Disconnect the wheel speed sensor electrical connector.

3. Disconnect the 2 wheel speed sensor harness pin-type retainers.

4. Disconnect the wheel speed sensor grommet retainer from the brake hose clip.

5. Remove the wheel speed sensor bolt.
- To install, tighten to 15 Nm (133 lb-in).

6. Remove the wheel speed sensor.

7. To install, reverse the removal procedure.
