Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

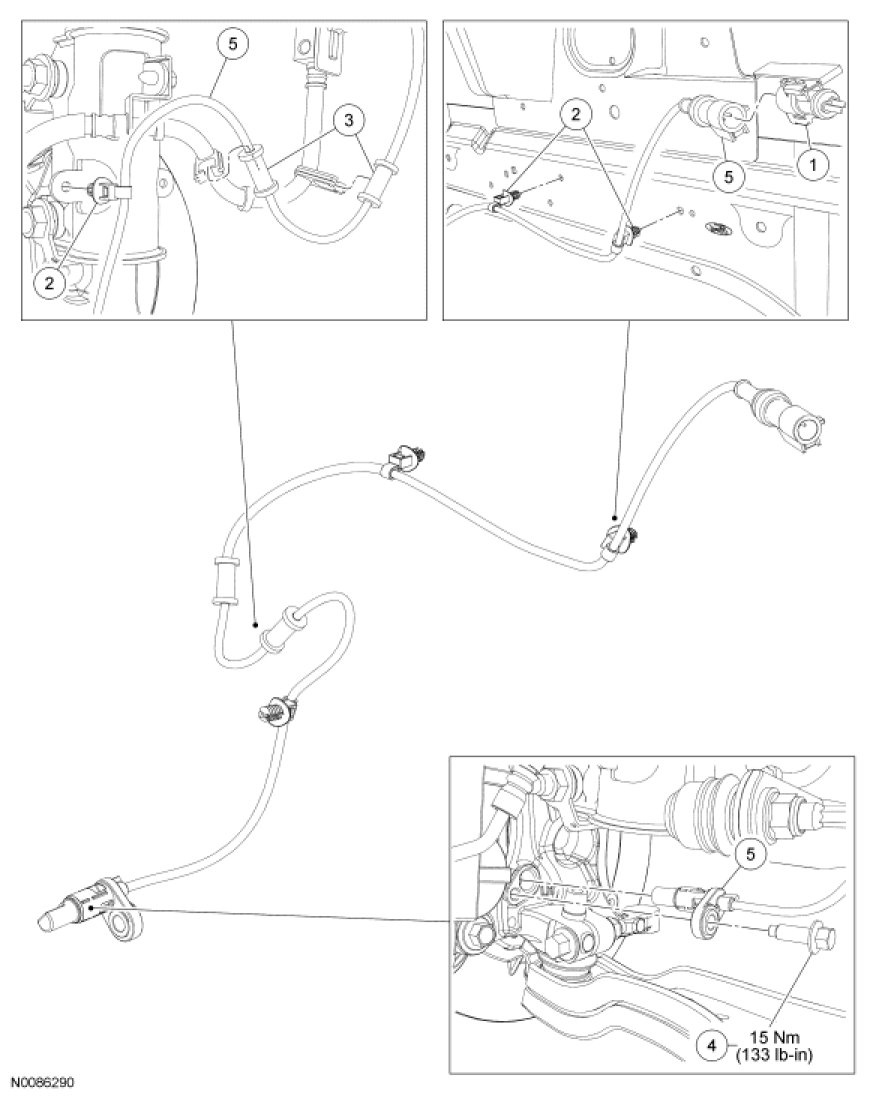

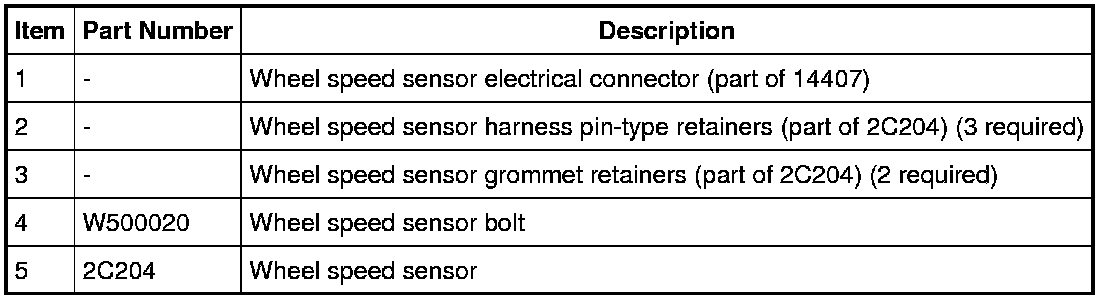

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the wheel speed sensor electrical connector.

3. Disconnect the 3 wheel speed sensor harness pin-type retainers.

4. Disconnect the 2 wheel speed sensor grommet retainers from the brake hose clips.

5. Remove the wheel speed sensor bolt.
- To install, tighten to 15 Nm (133 lb-in).

6. Remove the wheel speed sensor and harness assembly.

7. To install, reverse the removal procedure.
