Fuel Pump Control Unit: Service and Repair

Fuel Pump Driver Module (FPDM)









Removal and Installation

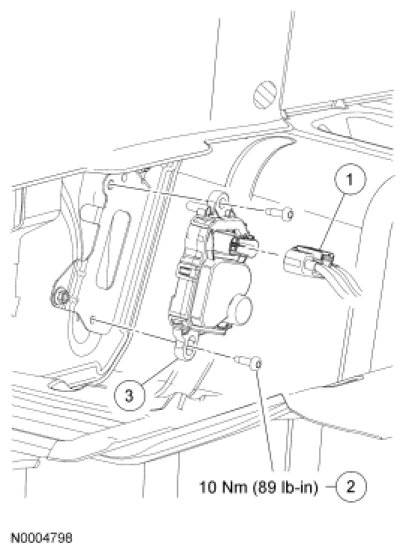

NOTE: The Fuel Pump Driver Module (FPDM) is located in the spare tire stowage compartment.

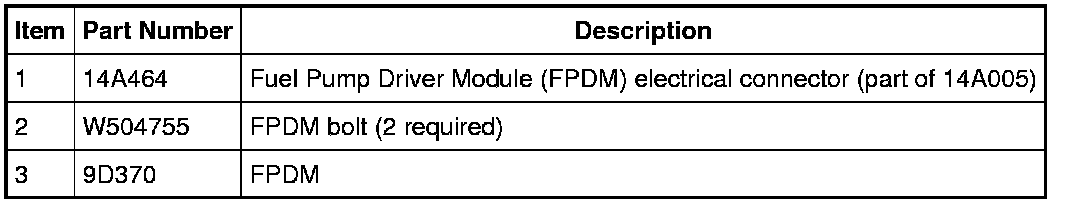

1. Disconnect the FPDM electrical connector.

2. Remove the 2 bolts and the FPDM.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
