Bussed Electrical Center (BEC)

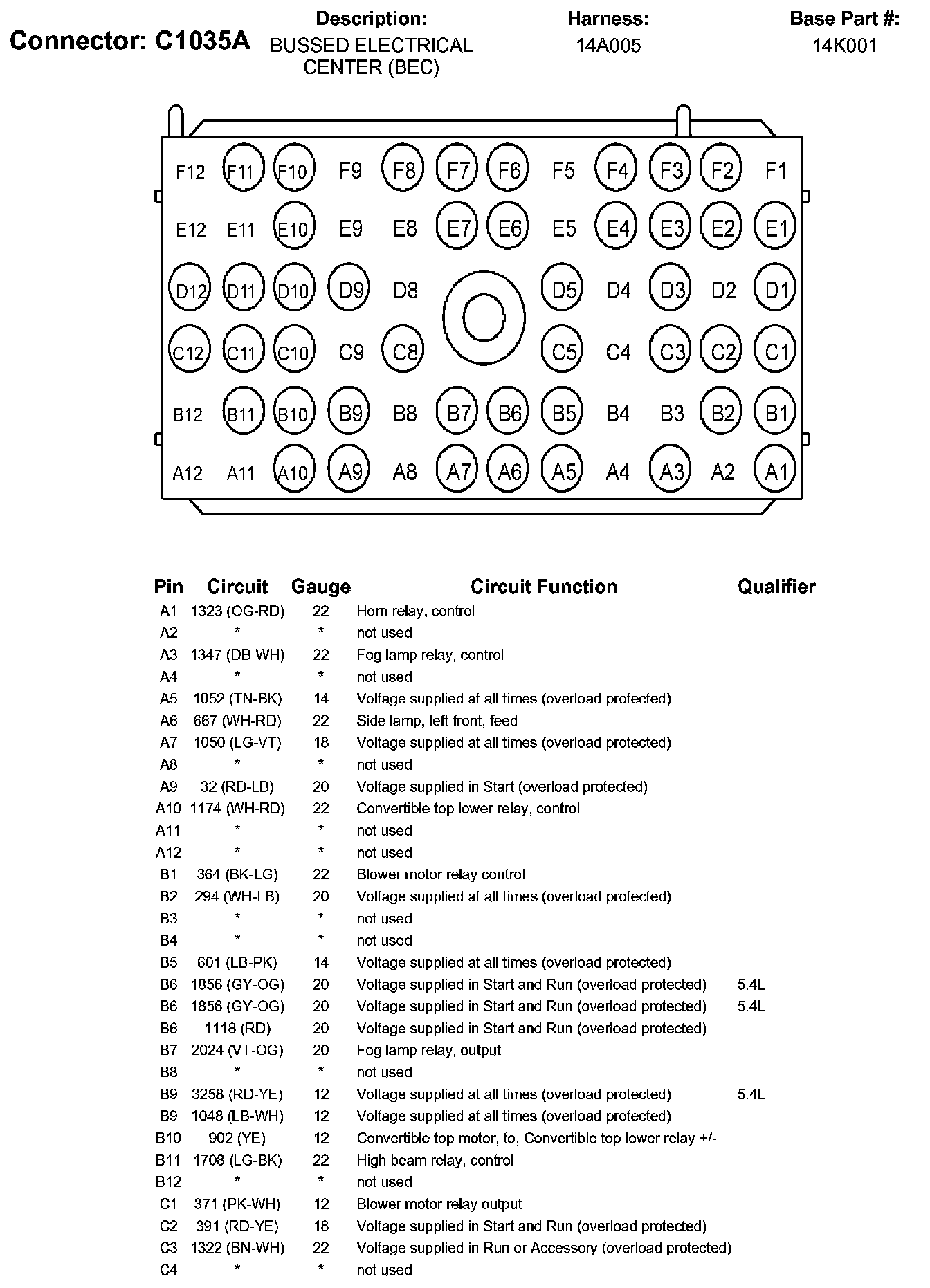

C1035A Part 1:

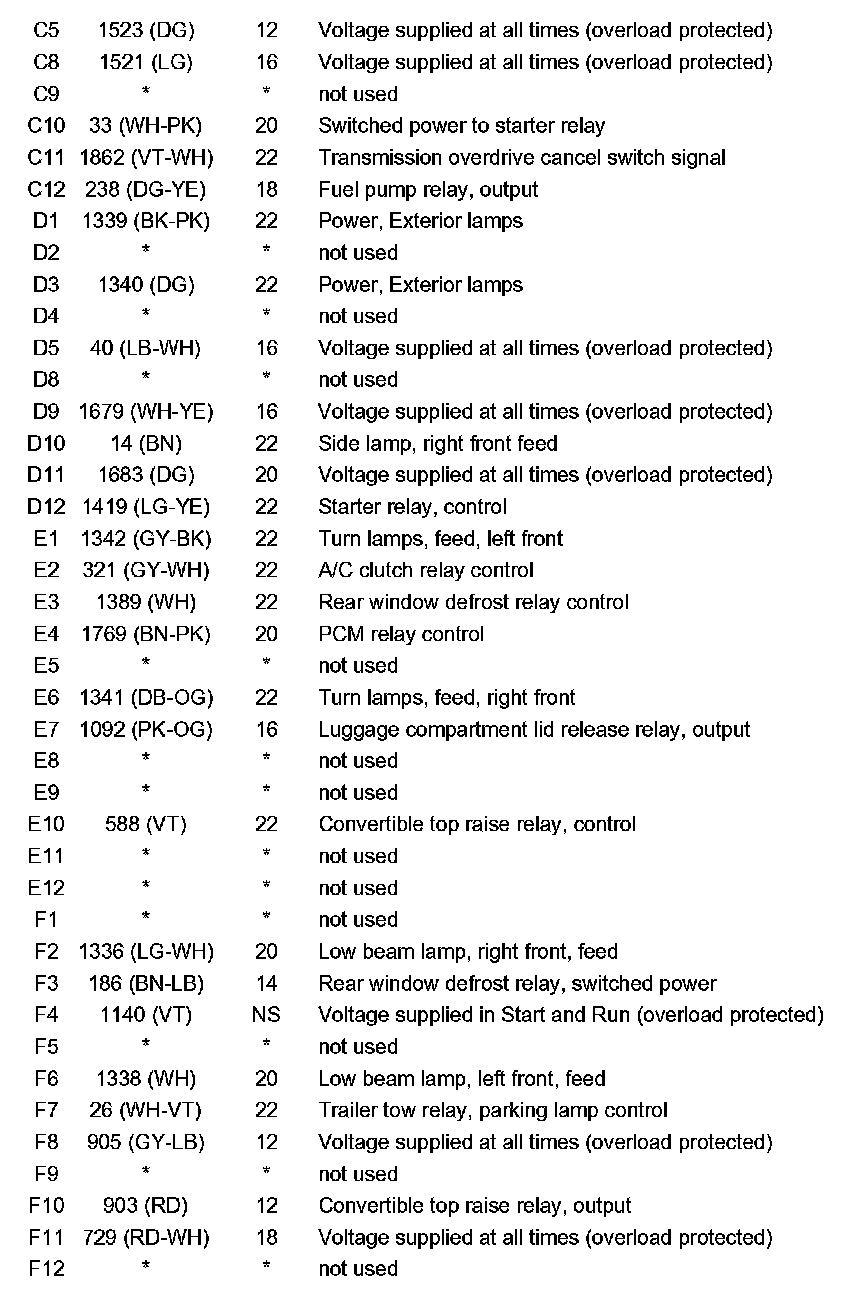

C1035A Part 2:

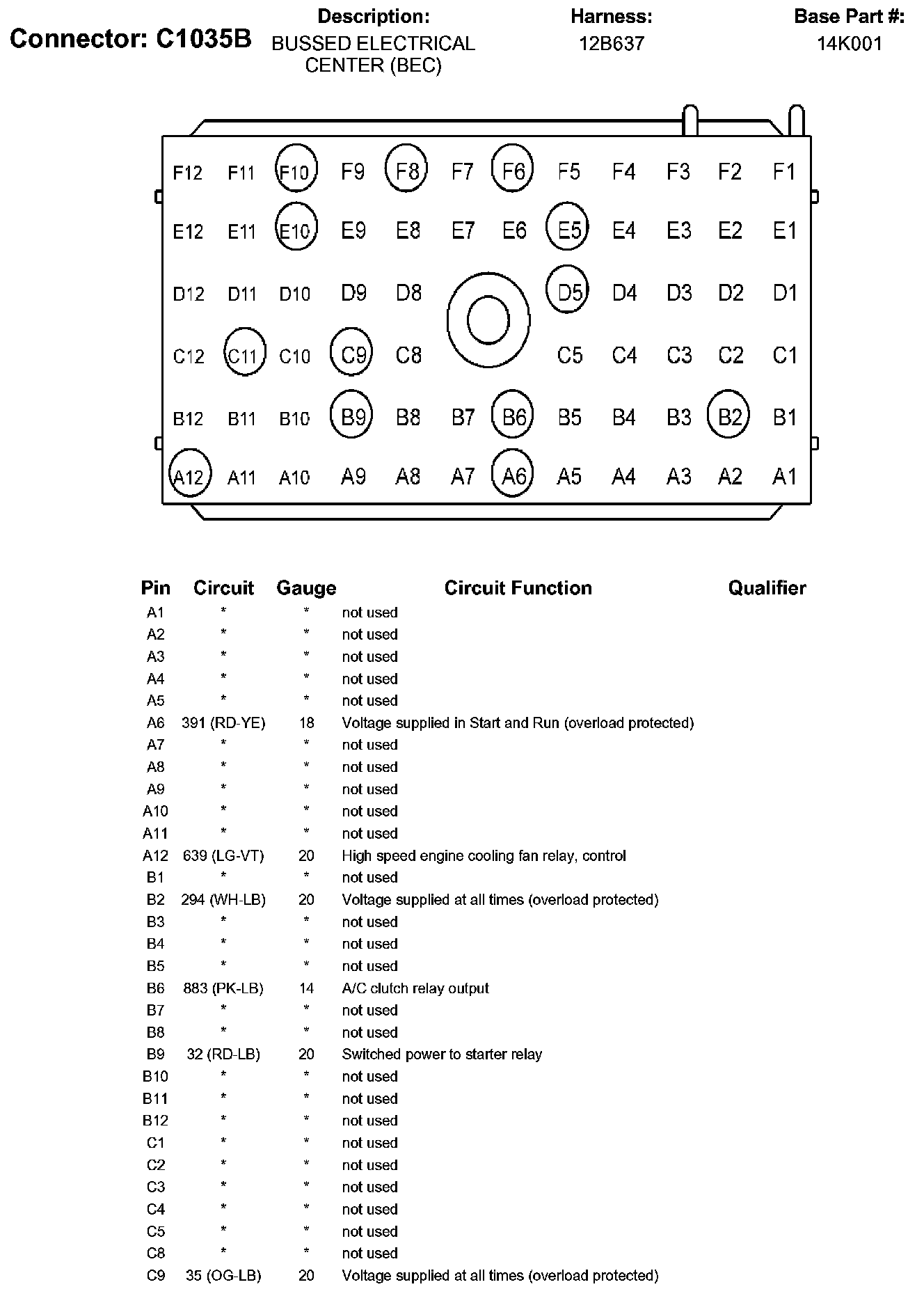

C1035B Part 1:



C1035B Part 2:



C1035C Part 1:



C1035C Part 2:



C1035D:

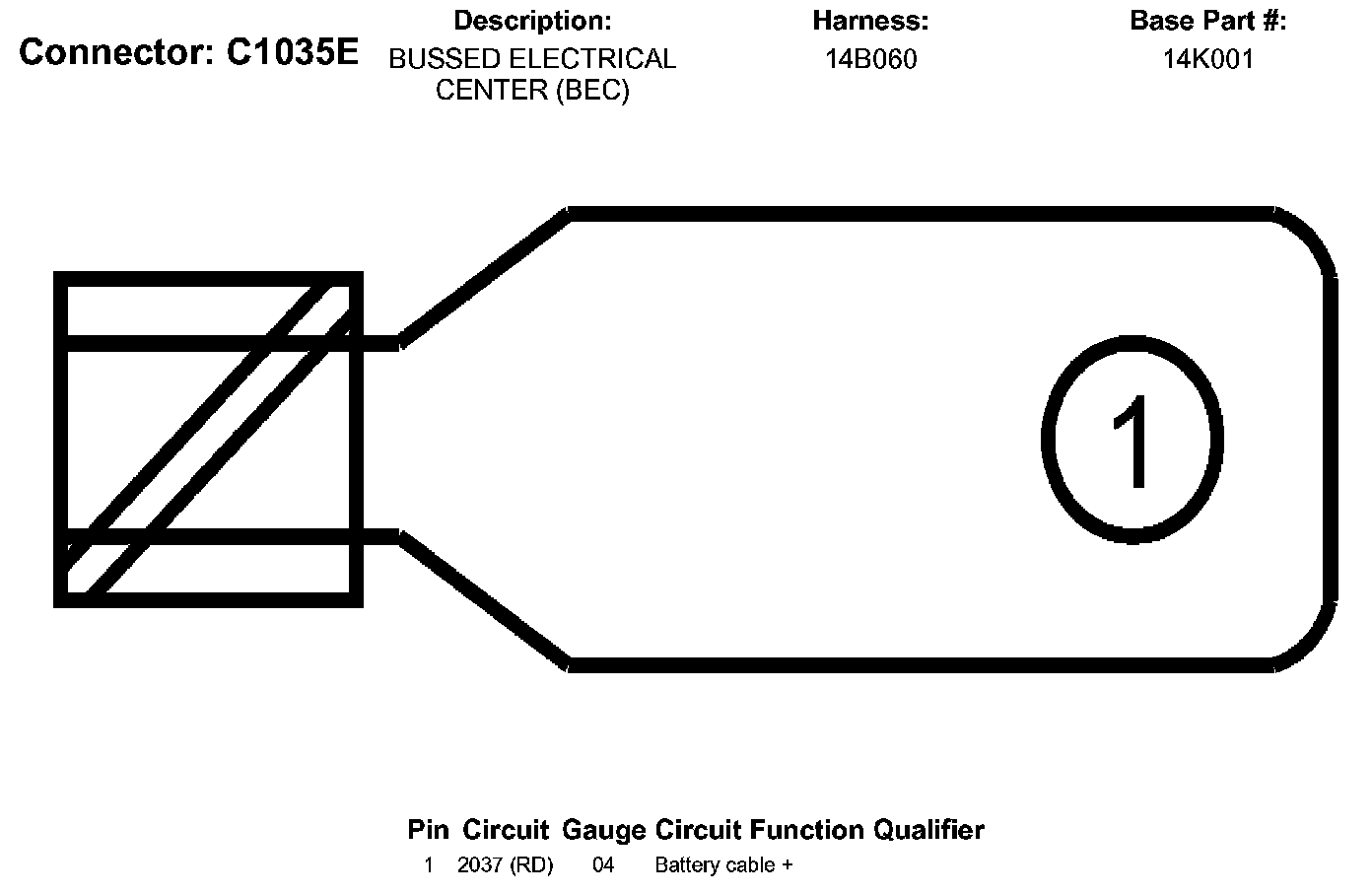

C1035E:
