Removal and Replacement

Audio Control Module (ACM)









Removal and Installation

NOTE: It is not necessary to remove the Audio Control Module (ACM) to retrieve the part number. For additional information, refer to Audio Unit Part Number Retrieval Audio Unit Part Number Retrieval.

NOTE: If installing a new navigation ACM, remove the navigation DVD, if possible, before sending the ACM to an authorized audio system repair facility.

1. NOTE: Module configuration is only required if a new ACM is being installed.

Upload the ACM configuration information to the scan tool. For additional information, refer to Information Bus, to carry out Programmable Module Installation (PMI). Programming and Relearning

2. Remove the instrument panel center finish panel.

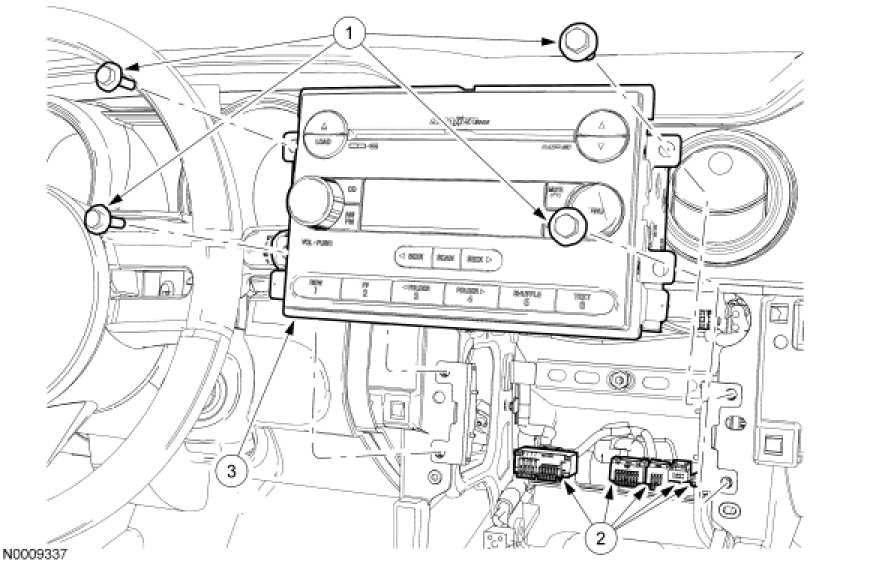

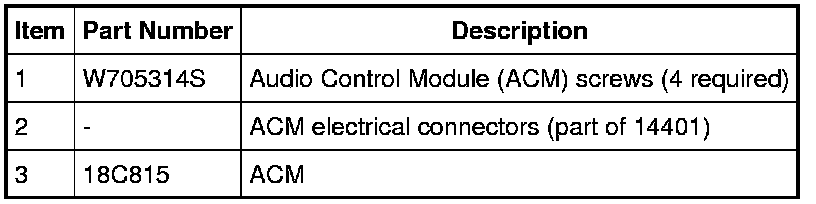

3. Remove the 4 screws and the ACM.
- Disconnect the electrical connectors and the antenna lead-in cable.

4. To install, reverse the removal procedure.
- Download the configuration information to the ACM. For additional information, refer to Information Bus, to carry out PMI. Programming and Relearning
