Spark Plugs

Spark Plugs









Removal

1. NOTICE: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

NOTE: Spark plug wires must be connected to the correct spark plug.

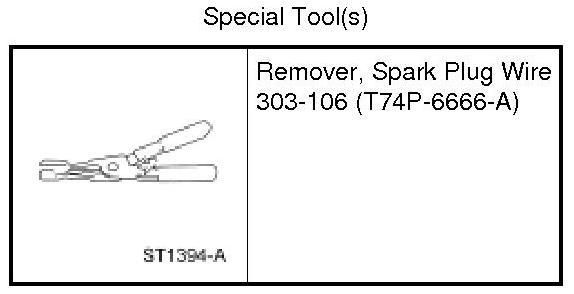

Using the Spark Plug Wire Remover, remove the spark plug wires from the spark plugs using a twisting motion.





2. NOTICE: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.

NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.

Remove the 6 spark plugs.

Installation

1. NOTICE: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.

Install the 6 spark plugs.

- Tighten to 17 Nm (150 lb-in).

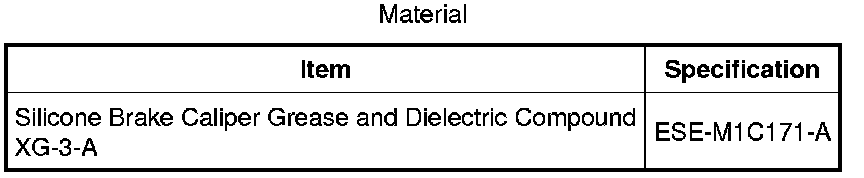

2. Apply silicone brake caliper grease and dielectric compound to the inside of the spark plug wire-to-boots.

3. NOTE: Make sure the spark plug boots are positioned so that the spark plug wires do not contact the exhaust manifold, or any sharp edges.

Connect the 6 spark plug wires to the spark plugs.
