Accelerator Pedal: Service and Repair

Accelerator Pedal









Removal and Installation

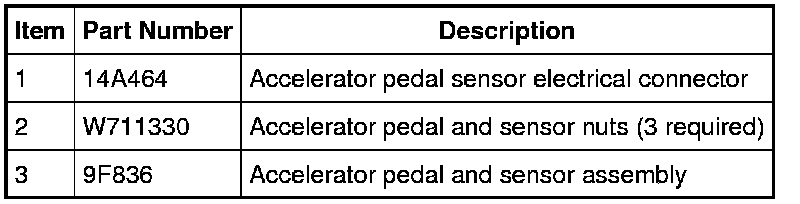

1. Disconnect the accelerator pedal sensor electrical connector.
- During installation, make sure that the red lock tab on the electrical connector is fully engaged to make sure of a complete connection.

2. Remove the 3 nuts and the accelerator pedal and sensor.
- To install, tighten to 9 Nm (80 lb-in).

3. To install, reverse the removal procedure.
