Fuel System - MIL ON/Misfire, O2 Sensor DTC's Set
TSB 10-7-104/26/10
4.0L MIL ON WITH DTC'S P030X, P0300, P0316, P0172, P0175 OR MISFIRE/RUNS ROUGH-ENGINES BUILT 5/4/2008-5/14/2008
FORD:
2009 Mustang
This article supersedes TSB 08-19-10 to update the Title, Issue and Service Procedure.
ISSUE
Some 2009 Mustang vehicles equipped with a 4.0L engine and having an engine built date from 5/4/2008-5/14/2008 may experience a malfunction indicator lamp (MIL) on with diagnostic trouble codes (DTCs) PO3Ox, P0300, P0316, P0172, P0175 or drivability concerns, such as misfire and/or runs rough.
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE

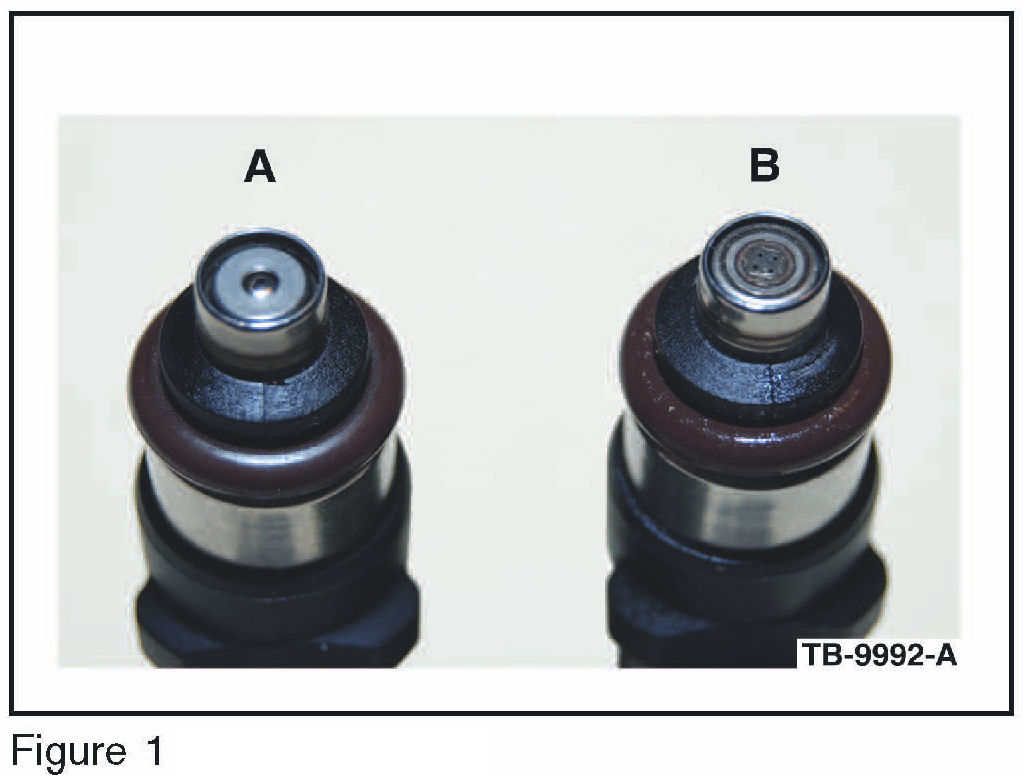

This may be caused by a damaged or missing fuel injector orifice plate. (Figure 1)
^ Figure 1-A injector has a missing orifice plate.
^ Figure 1-B injector shows what the normal injector orifice plate looks like.
1. Follow the normal diagnostic procedure in the Powertrain Control/Emissions Diagnosis (PC/ED) manual.

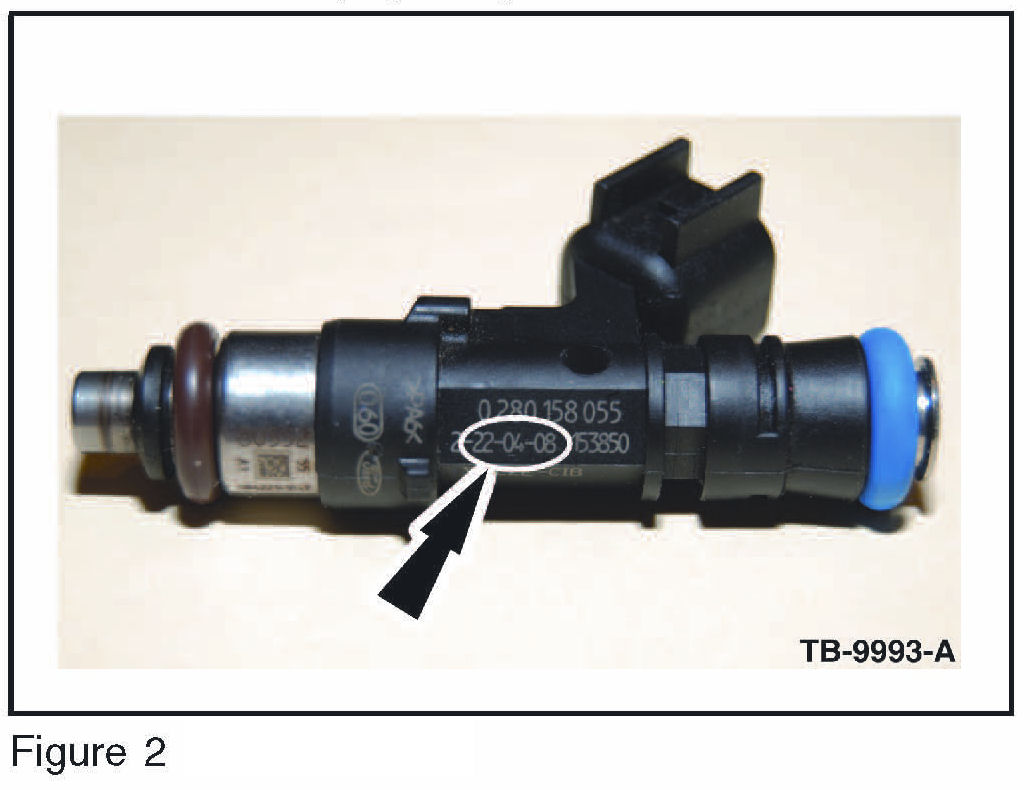

2. If diagnostics show that the causal part is a fuel injector, remove the causal injector and check the injector build date. Date format is DD-MM-YY. (Figure 2)
a. If the injector date is 22-4-08 as shown in Figure 2, replace all six (6) injectors following Workshop Manual (WSM), Section 303-04A.
b. If the injector date is not 22-4-08, this procedure does not apply. Continue with normal diagnostics.

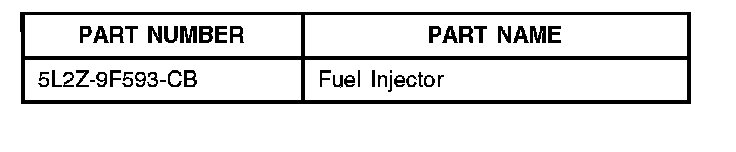

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.
OPERATION DESCRIPTION TIME
100701A 2009 Mustang 4.0L SOHC: 1.7 Hrs.
Replace All Six Fuel
Injectors, Includes Time To
Check Injector Build Date
And DTCs (Do Not Use
With Any Other Labor
Operations)
DEALER CODING
CONDITION
BASIC PART NO. CODE
9F593 42
