Pinpoint Test B: The ABS Module Does Not Respond To The Scan Tool
Refer to Wiring Diagram Set 14, Module Communications Network for schematic and connector information. Diagrams By Number
Refer to Wiring Diagram Set 42, Vehicle Dynamic Systems for schematic and connector information. Diagrams By Number
Normal Operation
The ABS module communicates with the scan tool through the High Speed Controller Area Network (HS-CAN). Circuits 1827 (WH/LG) (HS-CAN +) and 1828 (PK/LG) (HS-CAN -) provide the network connection to the ABS module. The ABS module shares the HS-CAN with the PCM and the Instrument Cluster (IC). Voltage for the ABS module is provided by circuits 601 (LB/PK) and 1844 (LG/RD). Both circuits 1205 (BK) provide ground.
This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- ABS module
PINPOINT TEST B: THE ABS MODULE DOES NOT RESPOND TO THE SCAN TOOL
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
NOTE: Failure to disconnect the battery when instructed will result in false resistance readings. Refer to Battery.
-------------------------------------------------
B1 CHECK THE ABS MODULE VOLTAGE SUPPLY CIRCUITS FOR AN OPEN
- Ignition OFF.
- Disconnect: ABS Module C135.
- Ignition ON.

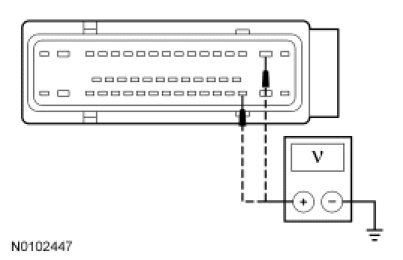

- Measure the voltage between the ABS module C135-2, circuit 601 (LB/PK), harness side and ground; and between the ABS module C135-32, circuit 1844 (LG/RD), harness side and ground.
- Are the voltages greater than 10 volts?
Yes
GO to B2.
No
VERIFY the SJB fuse 18 (10A) is OK. If OK, REPAIR the circuit. If not OK, REFER to the Wiring Diagrams to IDENTIFY the possible causes of the short circuit.
VERIFY the Bussed Electrical Center (BEC) fuse 65 (30A) is OK. If OK, REPAIR the circuit. If not OK, REFER to the Wiring Diagrams to IDENTIFY the possible causes of the short circuit.
CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
B2 CHECK THE ABS MODULE GROUND CIRCUITS FOR AN OPEN
- Ignition OFF.
- Disconnect: Negative Battery Cable.

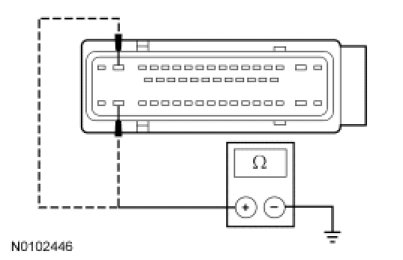

- Measure the resistance between the ABS module C135-16, circuit 1205 (BK), harness side and ground; and between the ABS module C135-45, circuit 1205 (BK), harness side and ground.
- Are the resistances less than 5 ohms?
Yes
GO to B3.
No
REPAIR the circuit in question. CONNECT the negative battery cable. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
B3 CHECK THE HS-CAN CIRCUITS BETWEEN THE ABS MODULE AND THE DLC FOR AN OPEN

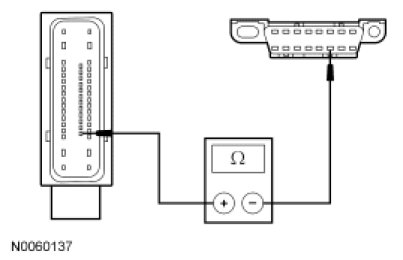

- Measure the resistance between the ABS module C135-3, circuit 1827 (WH/LG), harness side and the Data Link Connector (DLC) C251-6, circuit 1827 (WH/LG), harness side.

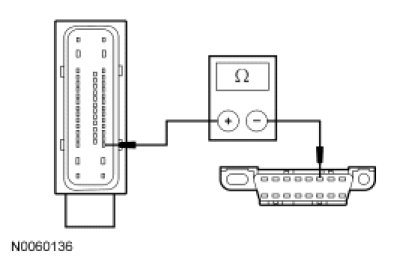

- Measure the resistance between the ABS module C135-18, circuit 1828 (PK/LG), harness side and the DLC C251-14, circuit 1828 (PK/LG), harness side.
- Are the resistances less than 5 ohms?
Yes
CONNECT the negative battery cable. GO to B4.
No
REPAIR the circuit in question. CONNECT the negative battery cable. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
B4 CHECK FOR CORRECT ABS MODULE OPERATION
- Disconnect the ABS module connector.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect the ABS module connector and make sure it seats correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
Yes
INSTALL a new ABS module. CLEAR the DTCs. REPEAT the network test with the scan tool.
No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
