Supercharger Belt

Supercharger Belt

Removal and Installation

1. Remove the accessory drive belt. For additional information, refer to Accessory Drive Belt - 5.4L (4V) Accessory Drive Belt.

2. Using a suitable belt tensioner release tool, rotate the Supercharger (SC) belt tensioner clockwise and remove the SC belt from the SC pulley.

3. NOTE: The SC belt is routed behind the SC belt tensioner.

Remove the SC belt tensioner bolt, the tensioner and the SC belt.
- To install, tighten to 48 Nm (35 lb-ft).

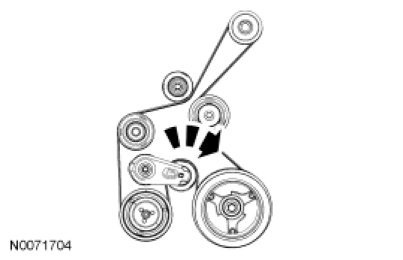

4. NOTE: Refer to the illustration for correct SC belt routing.

To install, reverse the removal procedure.
