Fog/Driving Lamp: Service and Repair

Fog Lamp

4.0L Vehicles










4.6L Vehicles










5.4L Vehicles









Removal and Installation

4.0L and 4.6L vehicles

1. Remove the front bumper cover.

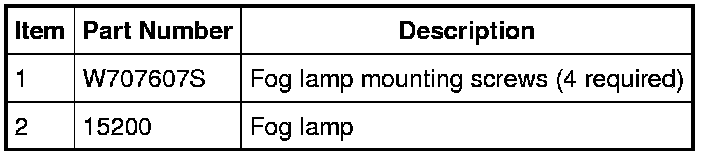

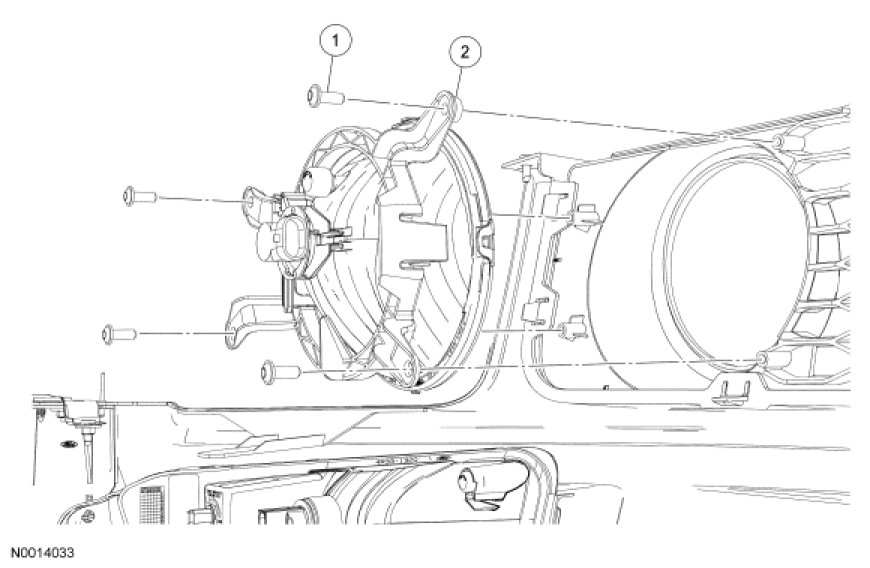

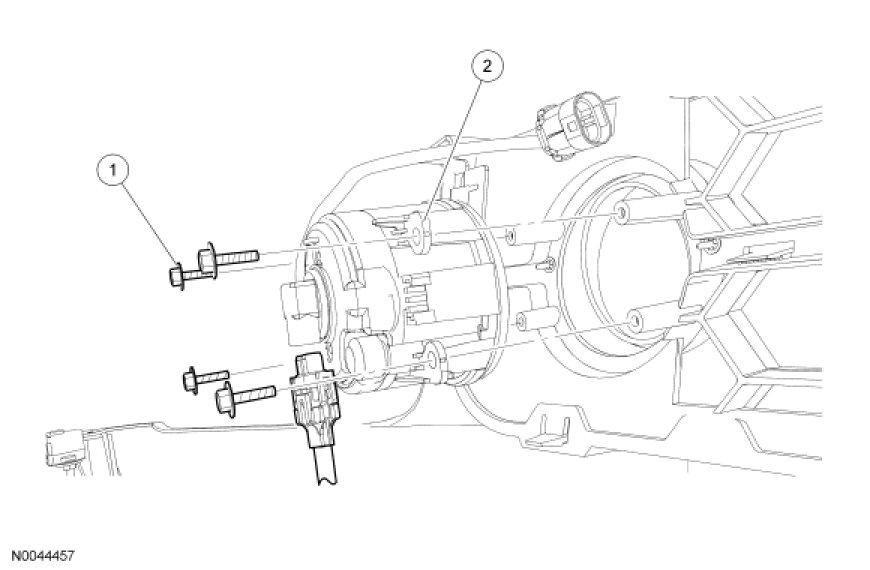

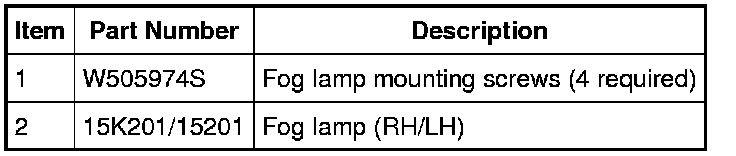

2. Remove the 4 screws and the fog lamp.

5.4L vehicles

3. With the vehicle in NEUTRAL, position it on a hoist.

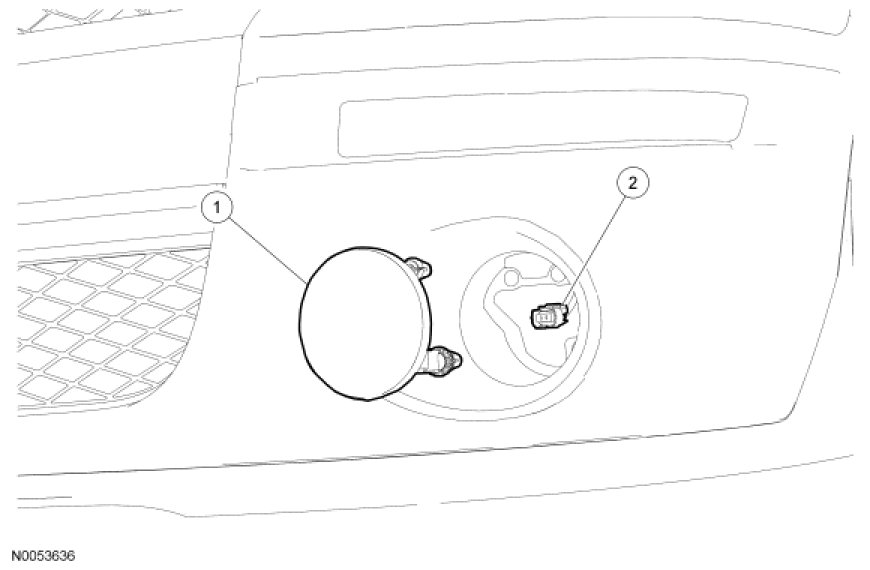

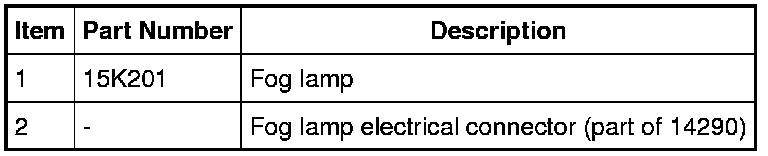

4. Release the tabs and remove the fog lamp.
- Disconnect the electrical connector.

All vehicles

5. To install, reverse the removal procedure.
