Courtesy Lamp
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
Diagnostic Trouble Code Tests and Associated Procedures
Interior Lighting

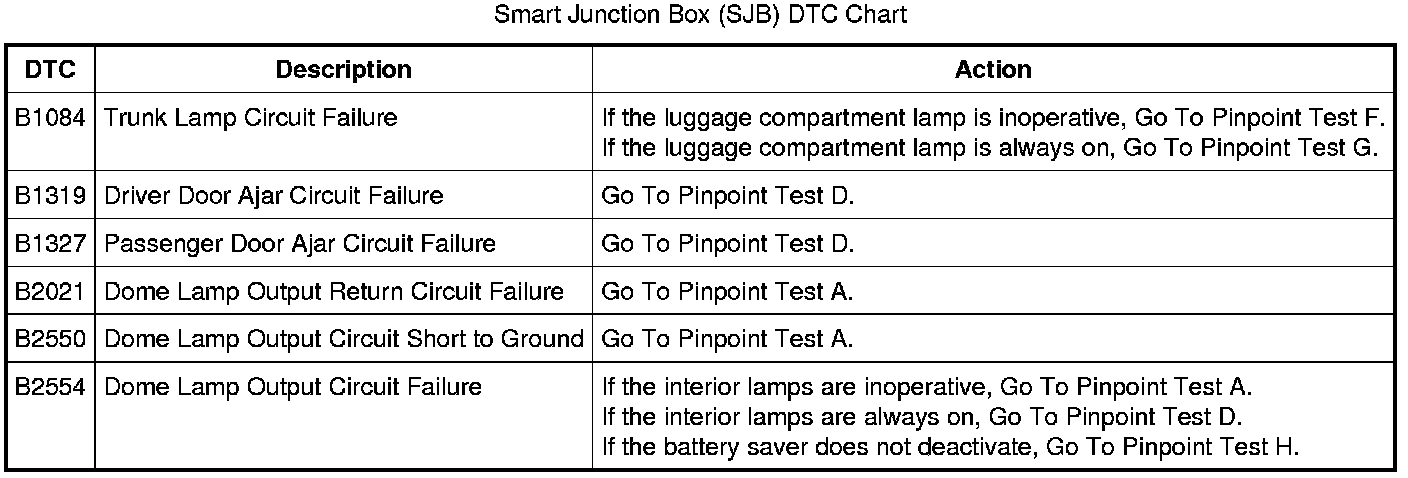

DTC Charts
B1084-B2554:
