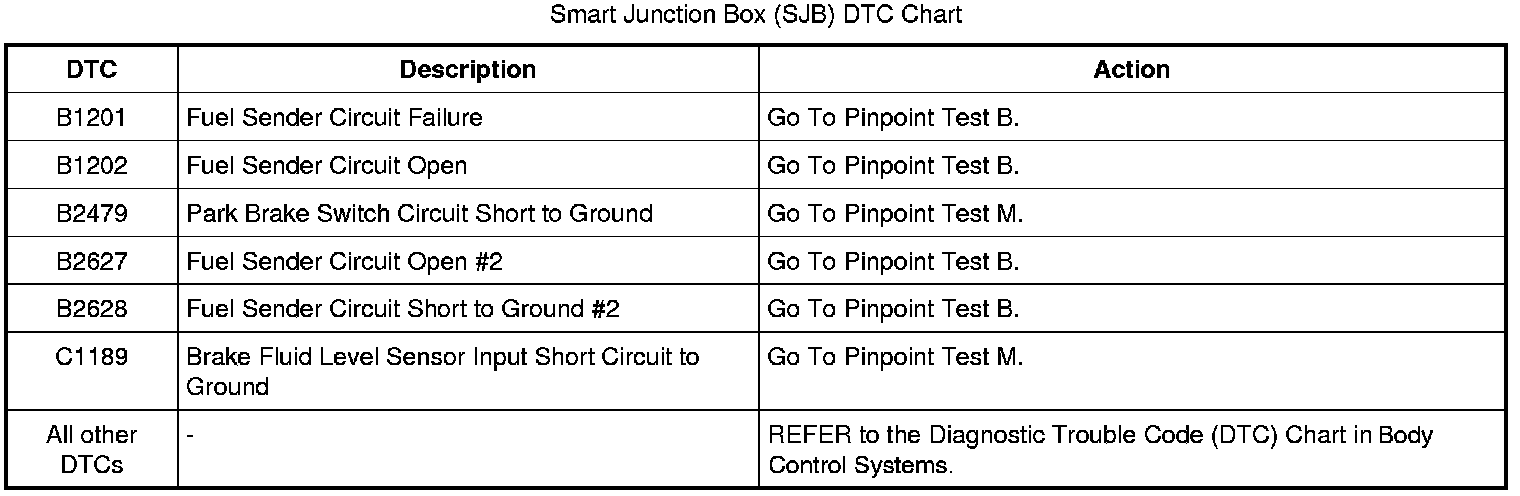

Smart Junction Box (SJB) DTC Chart
Smart Junction Box (SJB) DTC Chart
Instrumentation, Message Center and Warning Chimes
DTC Charts
B1201-B2628 / C1189:
