Blower Motor: Service and Repair

Blower Motor

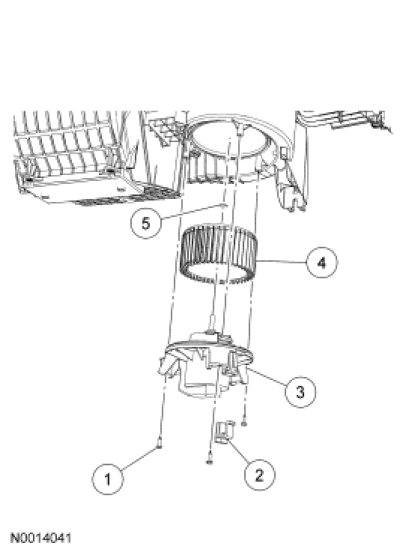

Removal and Installation

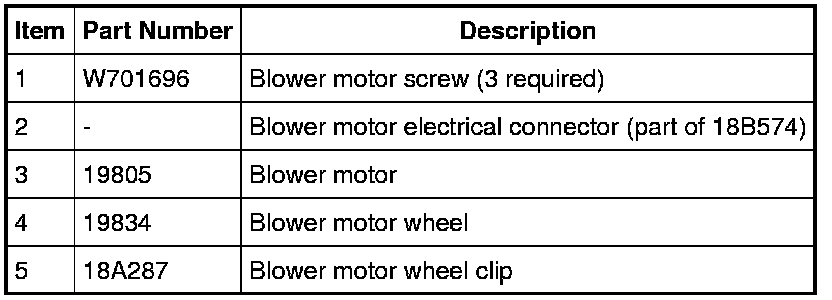

1. Disconnect the blower motor electrical connector.

2. Remove the 3 blower motor screws.

3. Remove the blower motor.

4. Remove the blower motor wheel clip.

5. Remove the blower motor wheel.

6. To install, reverse the removal procedure.
