Air Duct: Service and Repair

Air Inlet Duct









Removal and Installation

1. Remove the heater core and evaporator core housing. For additional information, refer to Heater Core And Evaporator Core Housing Heater Core And Evaporator Core Housing.

2. Disconnect the blower motor resistor electrical connector.

3. Disconnect the air inlet mode door actuator electrical connector.

4. Detach the heater core and evaporator core housing harness electrical connector from the bracket.

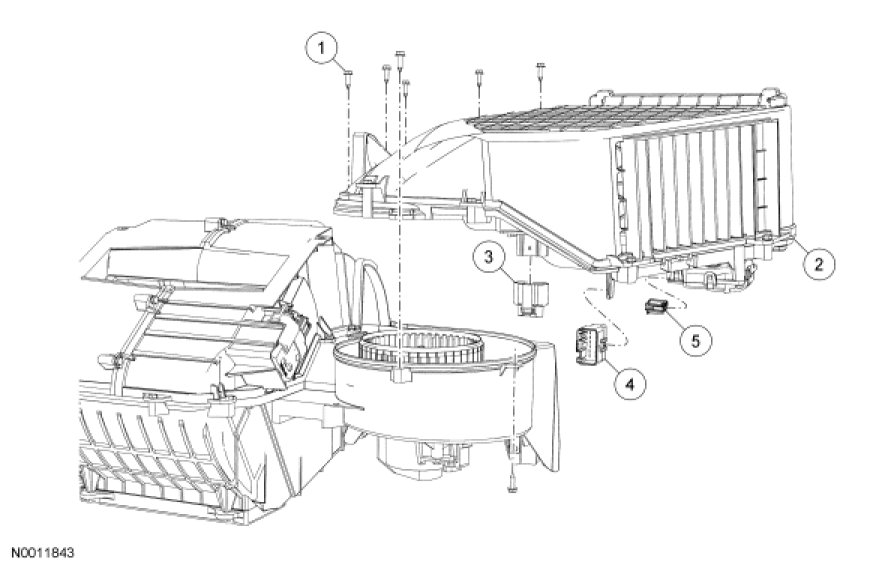

5. Remove the 7 air inlet duct screws.

6. Remove the air inlet duct.

7. To install, reverse the removal procedure.
