Exhaust Manifold - RH

Exhaust Manifold - RH

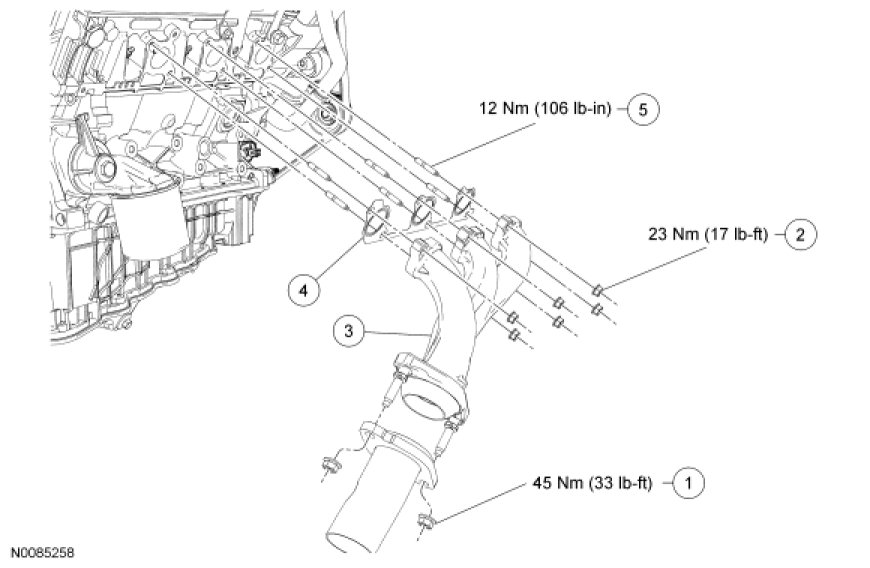

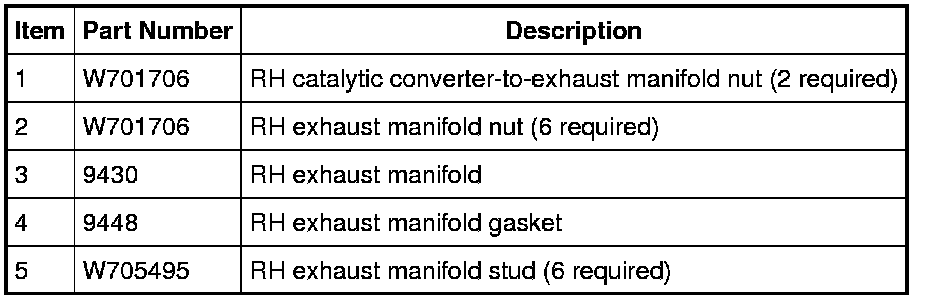

Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the 2 catalytic converter-to-exhaust manifold nuts.
- Discard the nuts.

3. Remove the nuts, the RH exhaust manifold and the gasket.
- Discard the nuts and gasket.

4. Clean and inspect the RH exhaust manifold.

5. Remove and discard the 6 RH exhaust manifold studs.

Installation

1. Install the 6 new RH exhaust manifold studs.
- Tighten to 12 Nm (106 lb-in).

2. Install the new RH exhaust manifold gasket, manifold and 6 new nuts.
- Tighten to 23 Nm (17 lb-ft).

3. Install the 2 new catalytic converter-to-exhaust manifold nuts.
- Tighten to 45 Nm (33 lb-ft).
