Exhaust Manifold - LH

Exhaust Manifold - LH









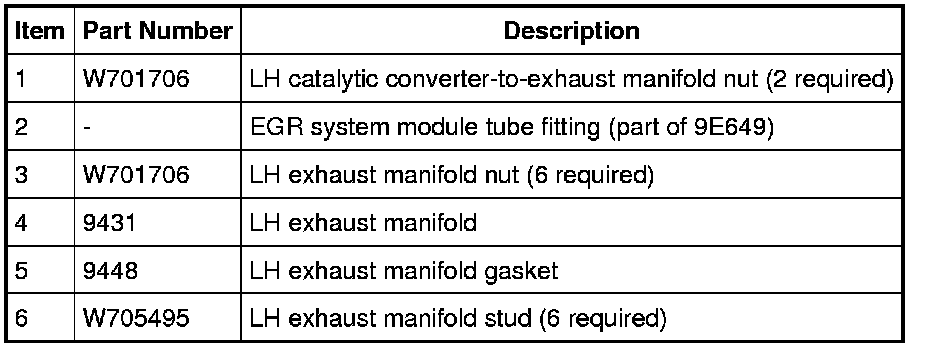

Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the 2 catalytic converter-to-exhaust manifold nuts.
- Discard the nuts.

3. Disconnect the EGR system module tube from the exhaust manifold.

4. Remove the 6 nuts, the LH exhaust manifold and the gasket.
- Discard the nuts and gasket.

5. Clean and inspect the LH exhaust manifold.

6. Remove and discard the 6 LH exhaust manifold studs.

Installation

1. Install the 6 new LH exhaust manifold studs.
- Tighten to 12 Nm (106 lb-in).

2. Install the new LH exhaust manifold gasket, manifold and 6 new nuts.
- Tighten to 23 Nm (17 lb-ft).

3. Connect the EGR system module tube to the exhaust manifold.
- Tighten to 40 Nm (30 lb-ft).

4. Install the 2 new catalytic converter-to-exhaust manifold nuts.
- Tighten to 45 Nm (33 lb-ft).
