Timing Drive Components - Hydraulic Chain Tensioner, RH




Timing Drive Components - Hydraulic Chain Tensioner, RH









Removal and Installation

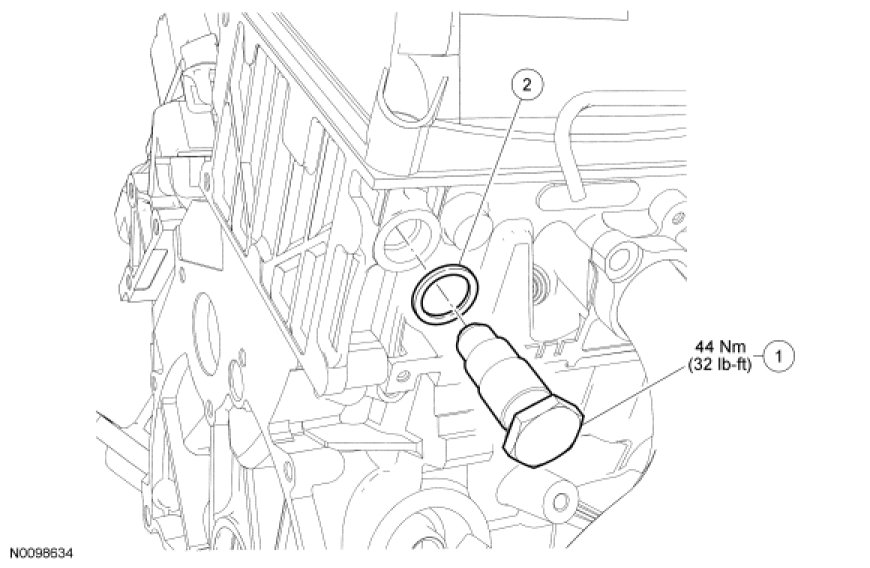

1. Remove the RH hydraulic chain tensioner.
- To install, tighten to 44 Nm (32 lb-ft).

2. Remove and discard the washer.

3. To install, reverse the removal procedure.
