Timing Drive Components - Hydraulic Chain Tensioner, LH




Timing Drive Components - Hydraulic Chain Tensioner, LH









Removal and Installation

1. Remove the Engine Coolant Temperature (ECT) sensor.

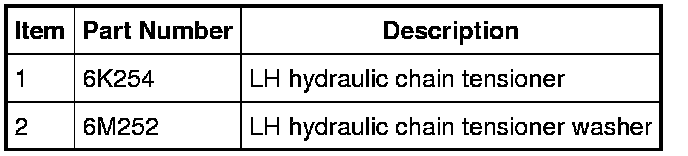

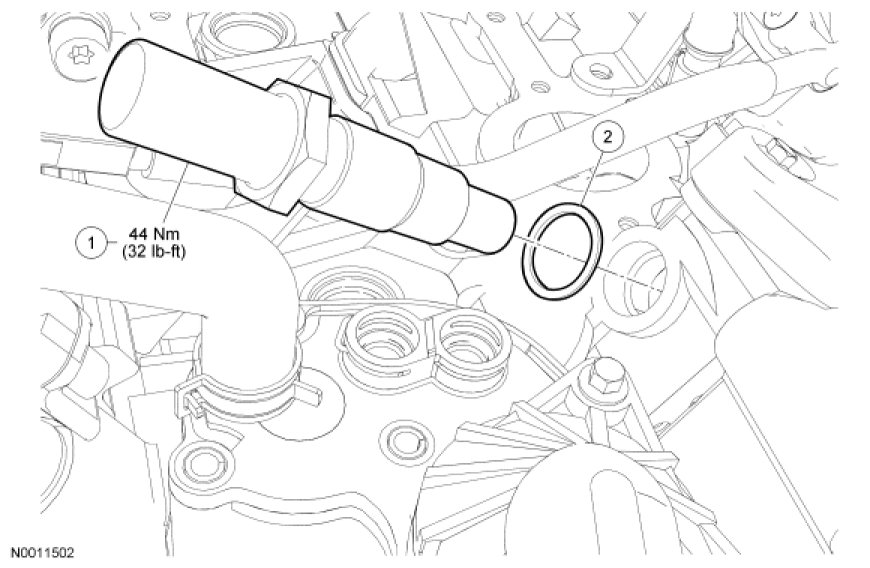

2. Remove the LH hydraulic chain tensioner.
- To install, tighten to 44 Nm (32 lb-ft).

3. Remove and discard the washer.

4. To install, reverse the removal procedure.
