Engine Mount - RH

Engine Mount - RH













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the battery ground cable.

3. Remove the Throttle Body (TB).

4. Remove the Front End Accessory Drive (FEAD) bracket bolt and install the Engine Lifting Bracket.
- To install, tighten to 48 Nm (35 lb-ft).





5. Remove the 8 pin-type retainers and the radiator sight shield.





6. Install the Engine Support Bar.

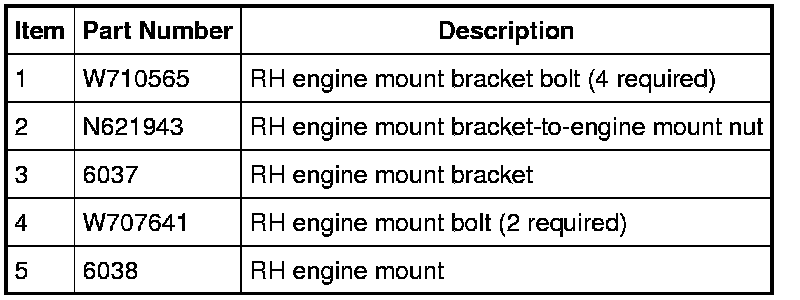

7. Remove the engine mount-to-engine bracket mount nut.
- To install, tighten to 63 Nm (46 lb-ft).

8. Remove the 4 engine mount bracket bolts and remove the bracket.
- To install, tighten to 80 Nm (59 lb-ft).

9. Remove the 2 engine mount bolts and the engine mount.
- To install, tighten to 70 Nm (52 lb-ft).

10. To install, reverse the removal procedure.
