Engine Mount - LH

Engine Mount - LH

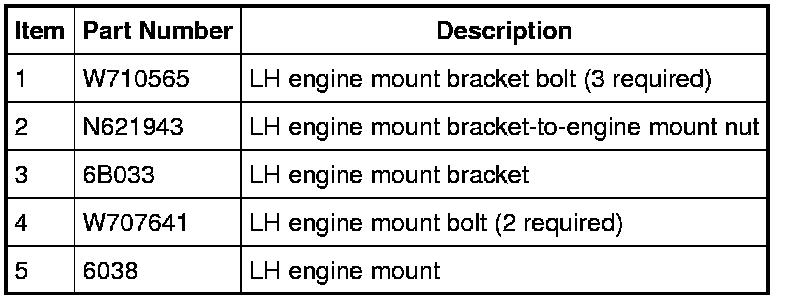

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the Throttle Body (TB).

3. Remove the Front End Accessory Drive (FEAD) bracket bolt and install the Engine Lifting Bracket.
- To install, tighten to 48 Nm (35 lb-ft).





4. Remove the 8 pin-type retainers and the radiator sight shield.





5. Install the Engine Support Bar.





6. Remove the engine mount bracket-to-engine mount nut.
- To install, tighten to 63 Nm (46 lb-ft).

7. Remove the 3 engine mount bracket bolts and remove the bracket.
- To install, tighten to 80 Nm (59 lb-ft).

8. Remove the 2 engine mount bolts and the engine mount.
- To install, tighten to 70 Nm (52 lb-ft).

9. To install, reverse the removal procedure.
