Connectors

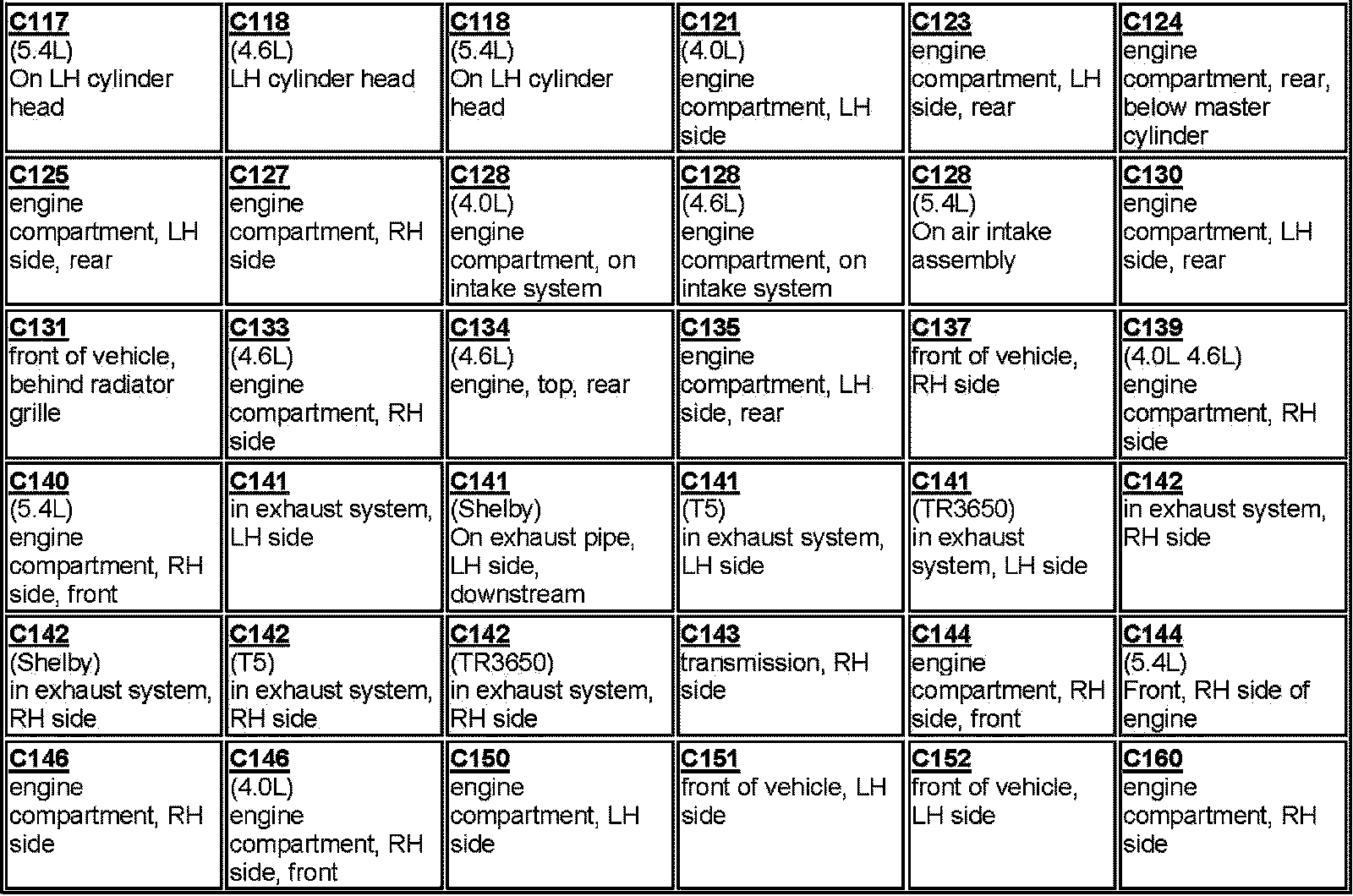

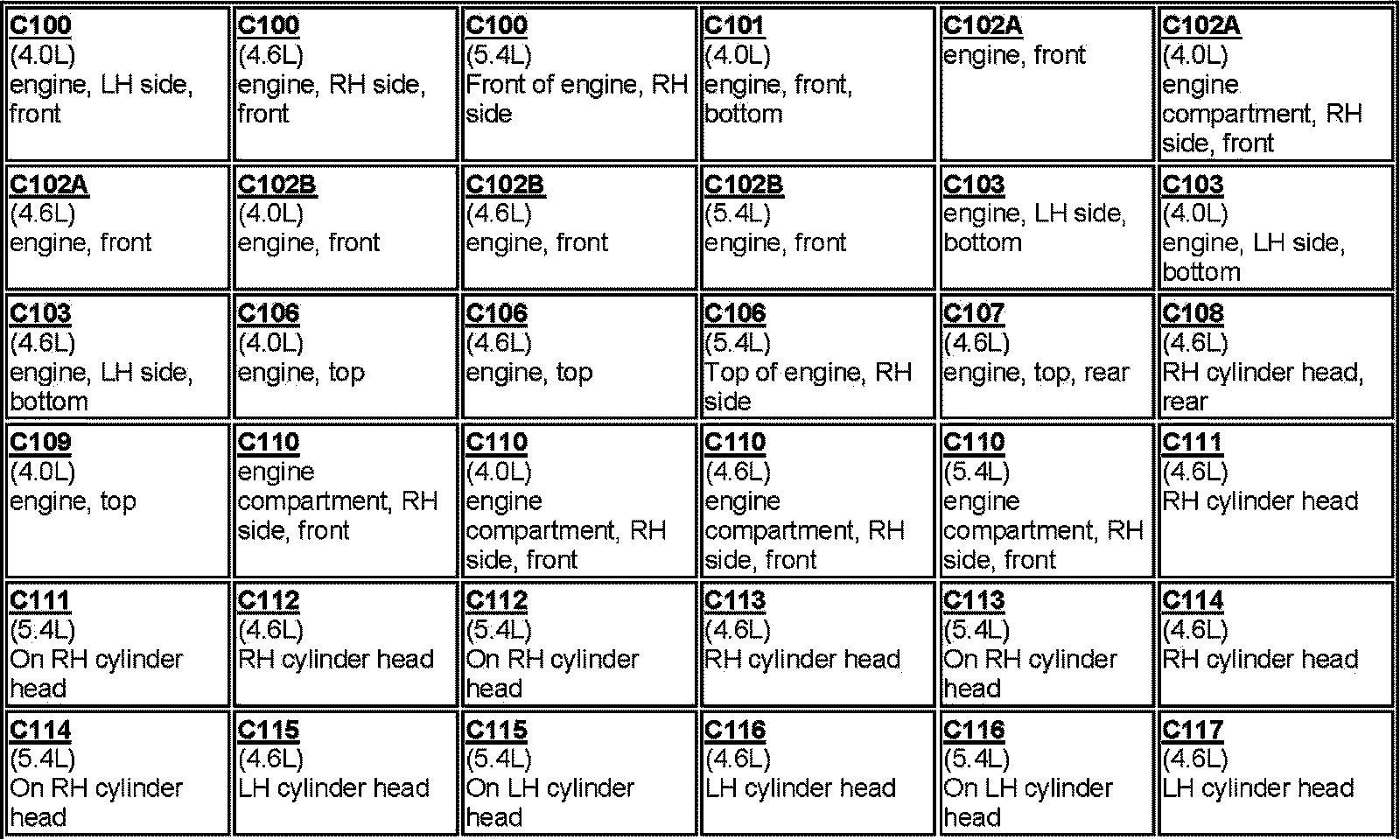

C100-C117:

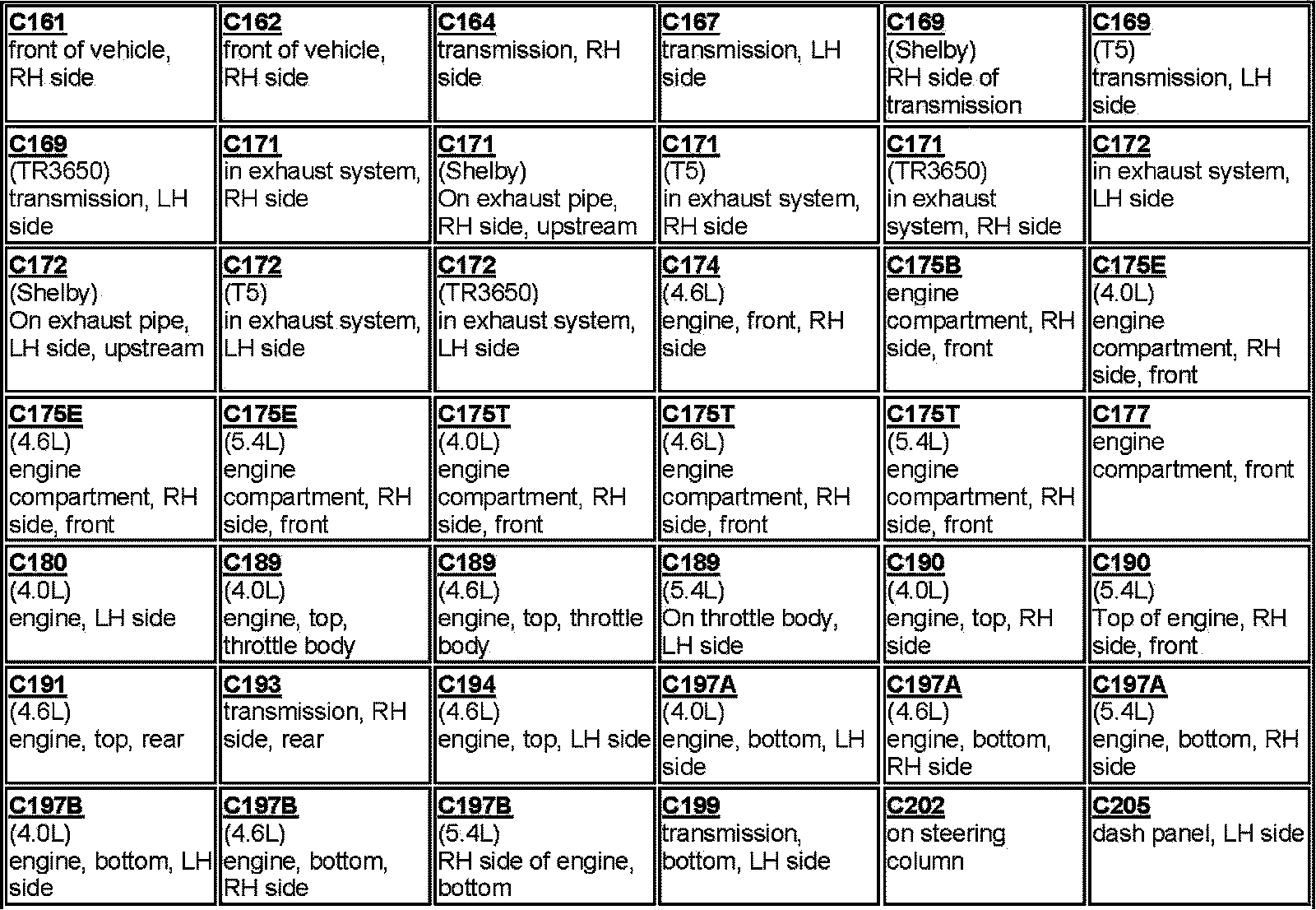

C117-C160:





C161-C205:

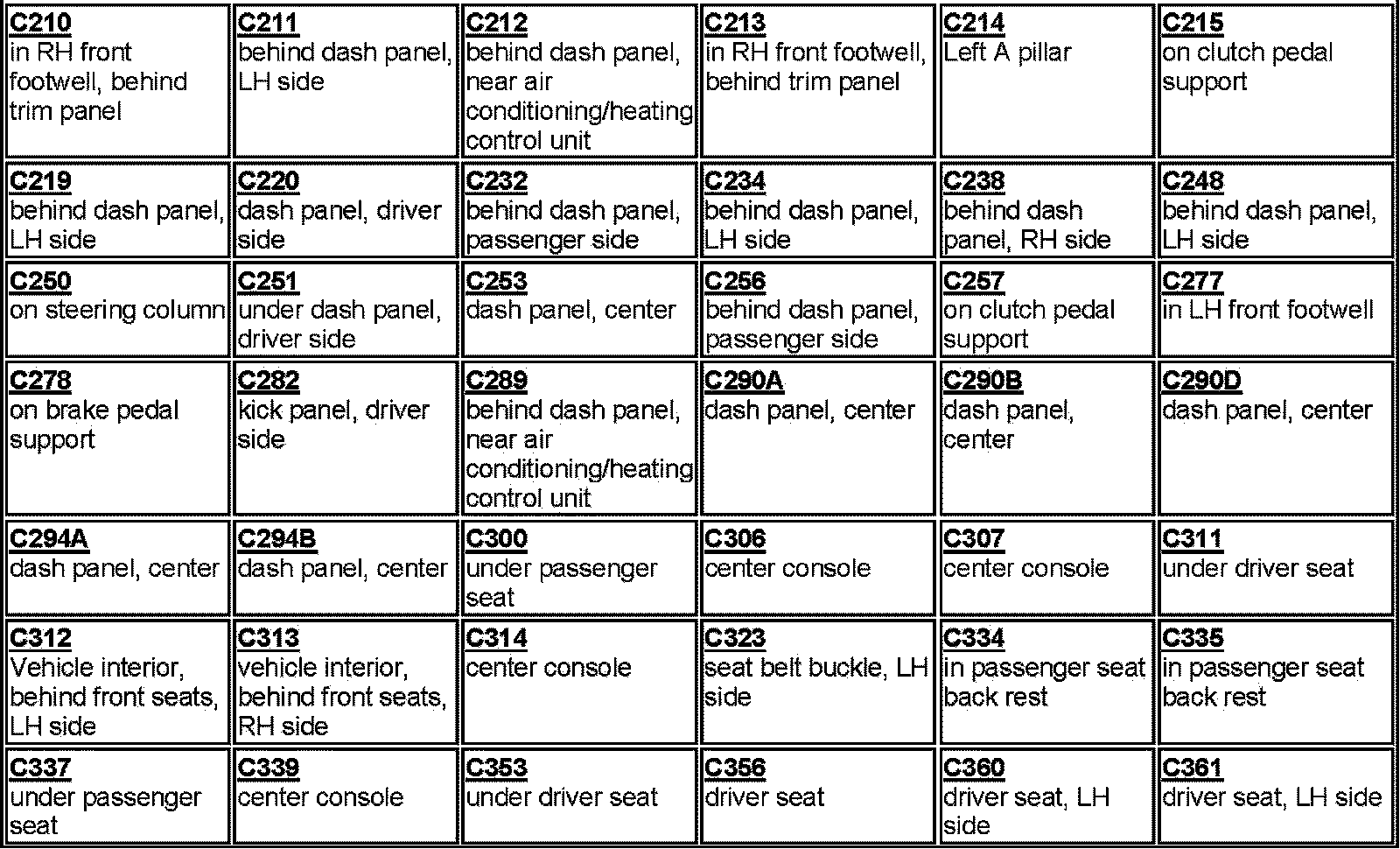

C210-C361:

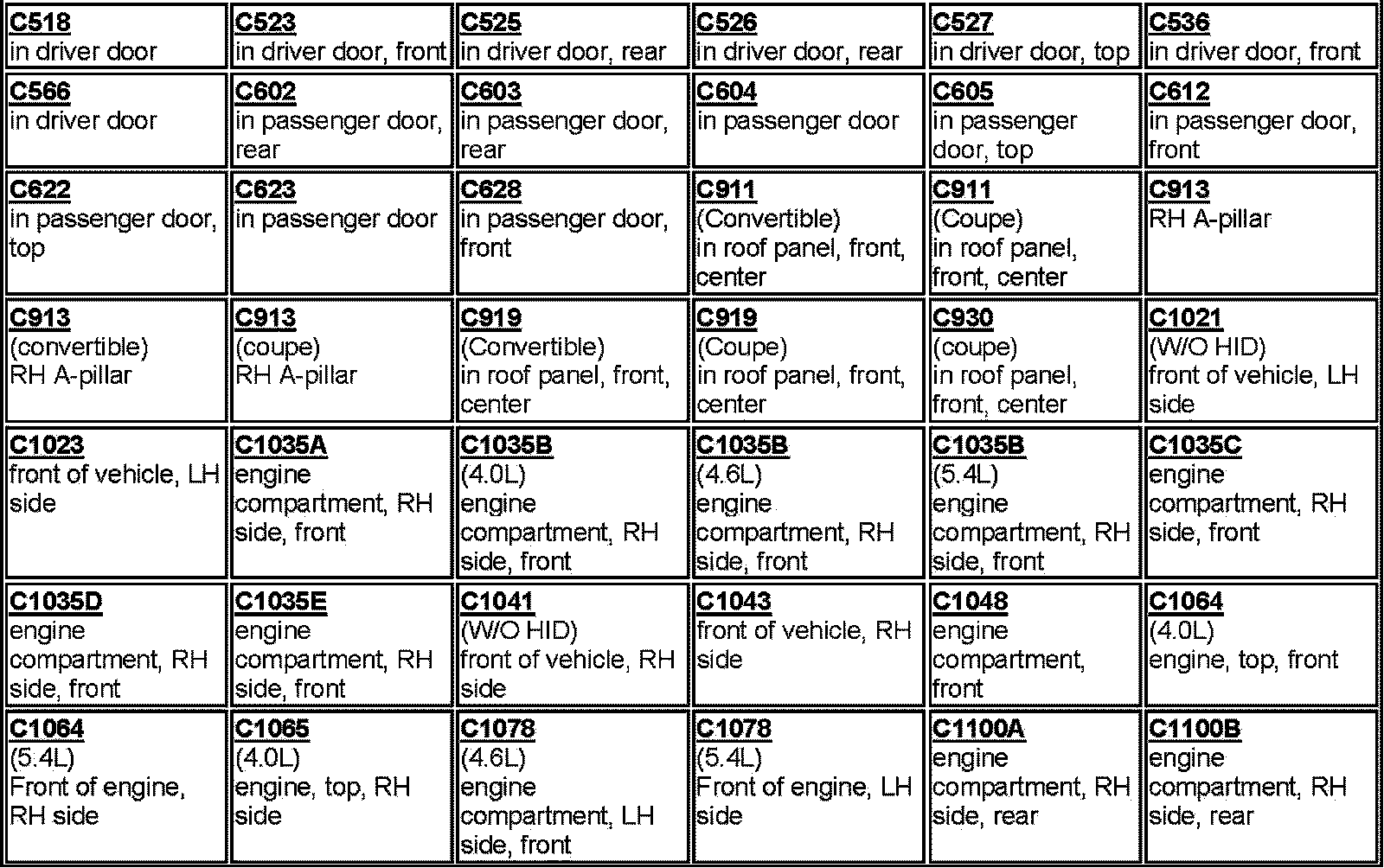

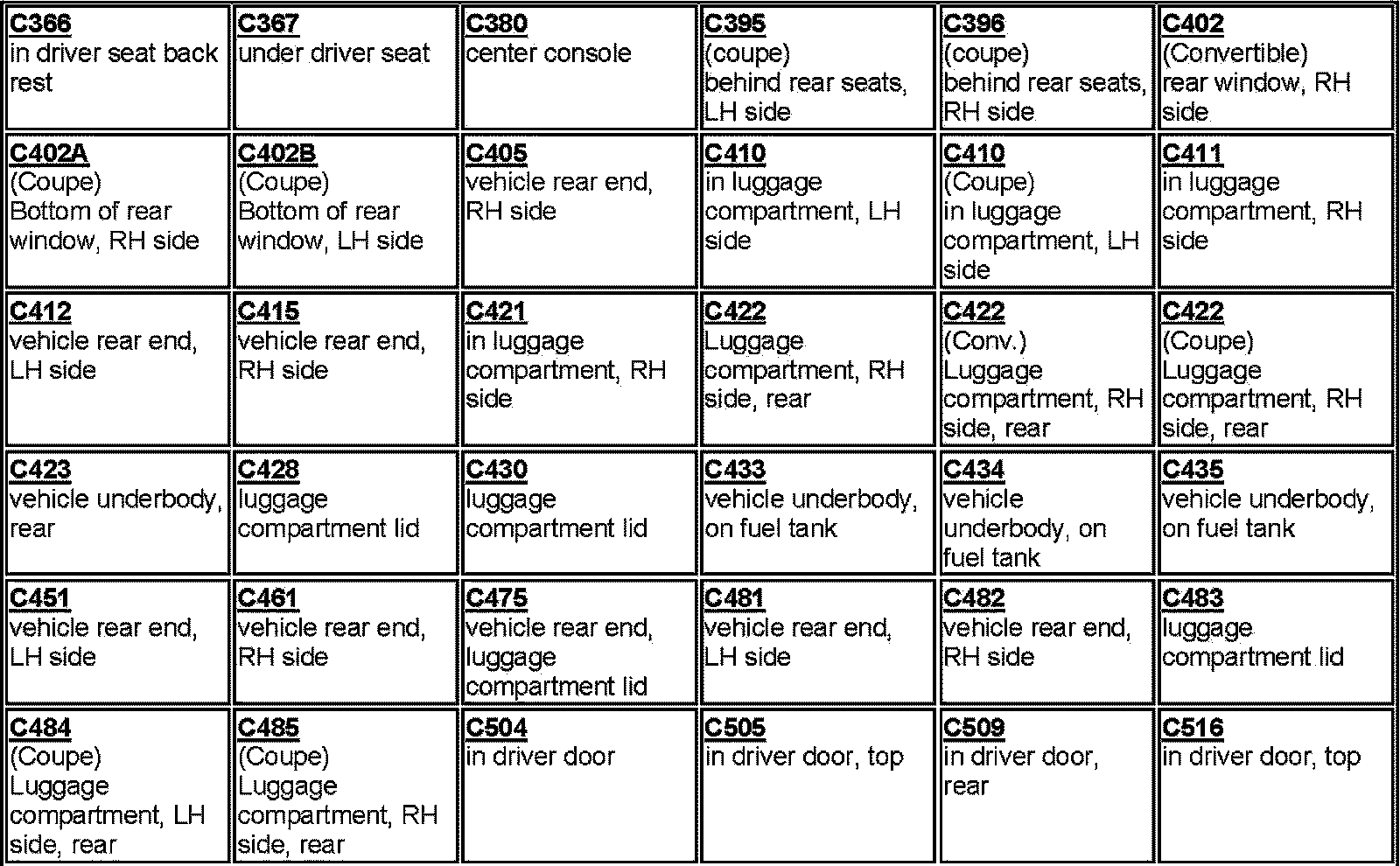

C366-C516:

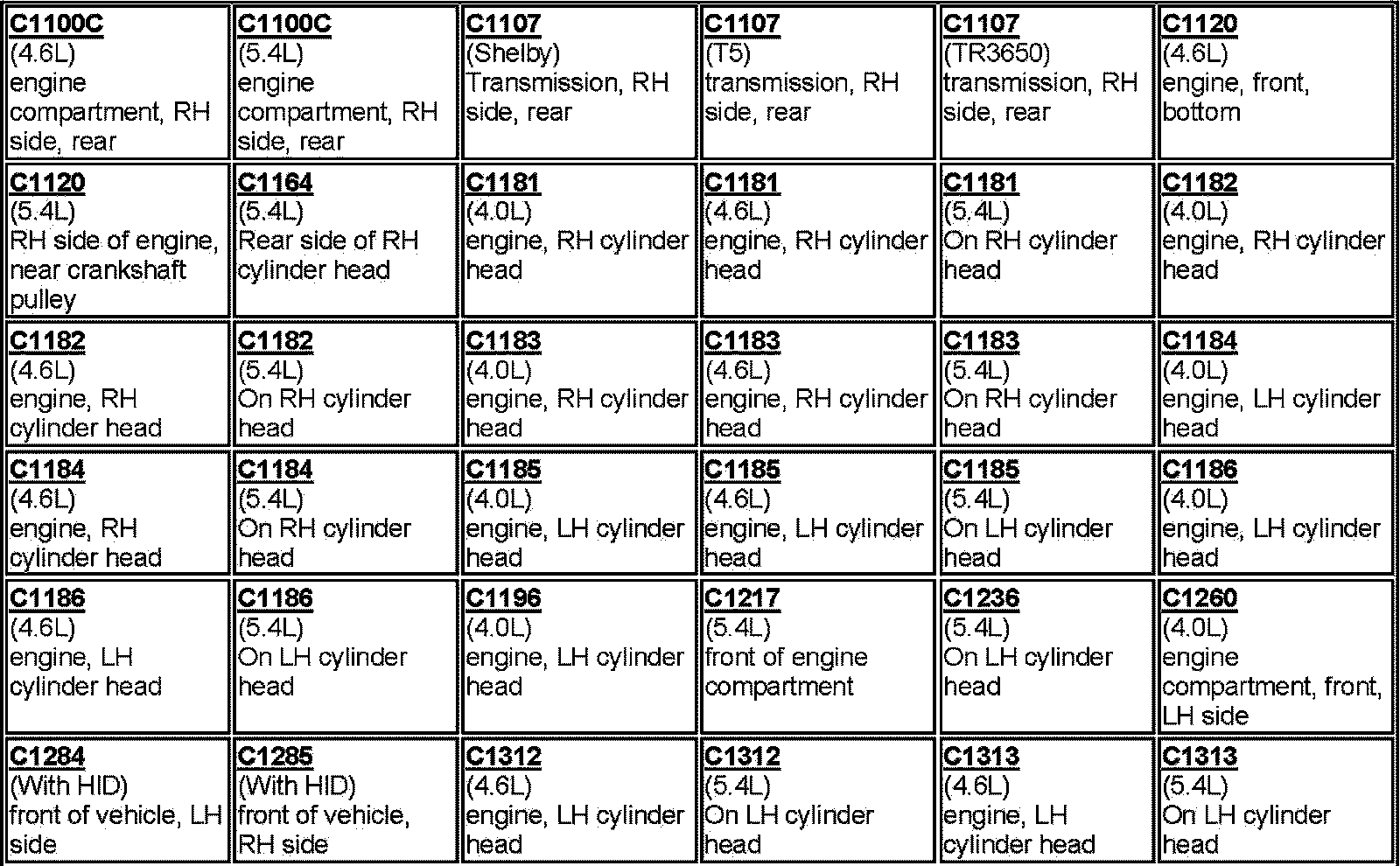

C518-C1100B:





C1100C-C1313:

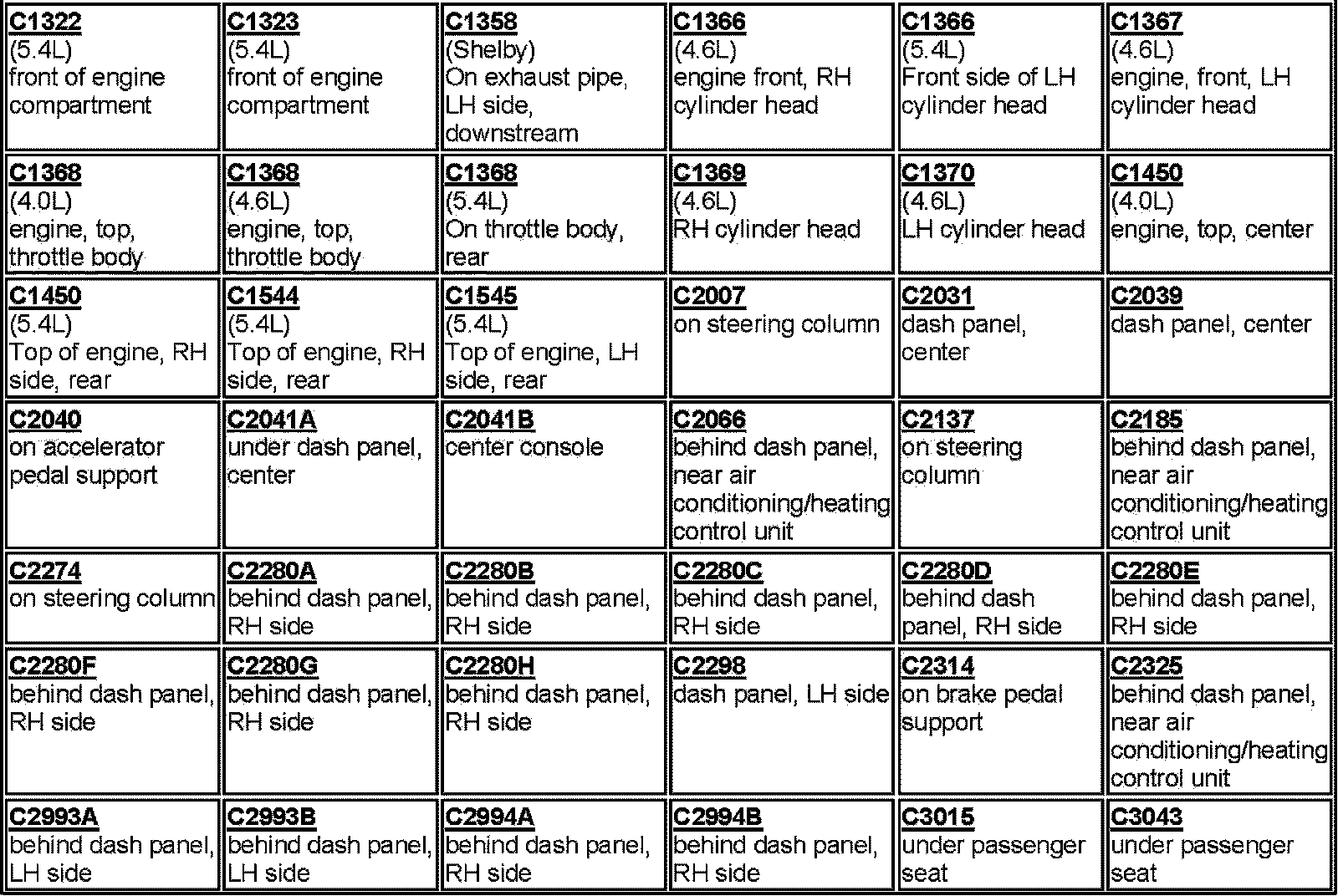

C1322-C3043:





C3066-C9013:
