Front Disc Brake

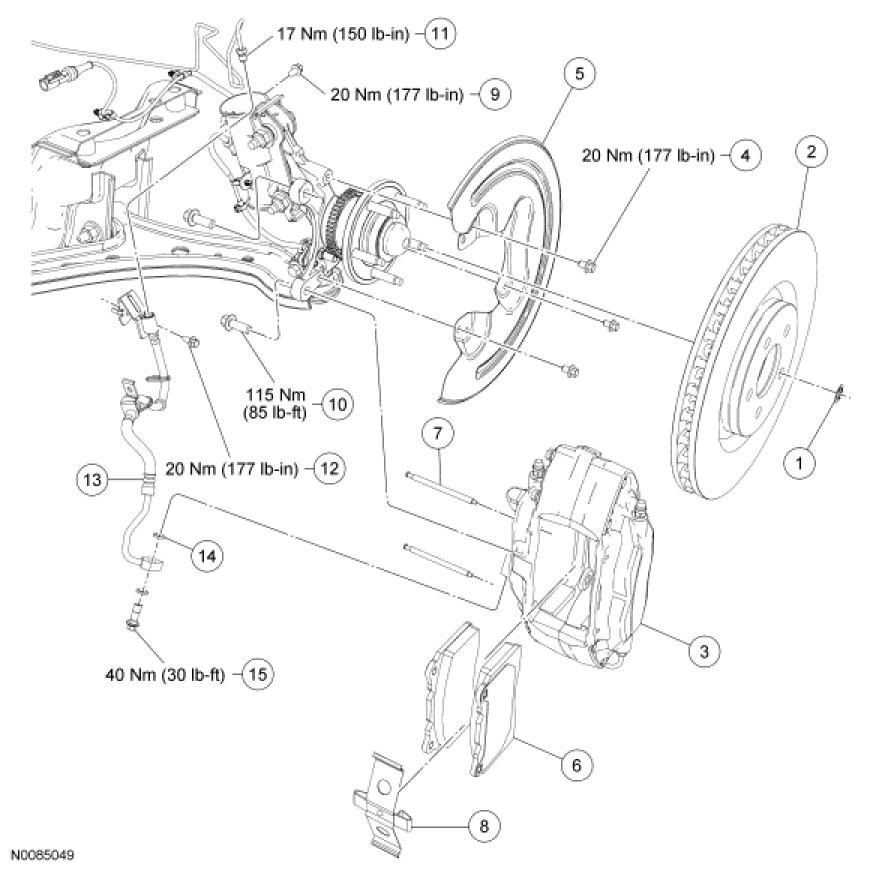

Disc Brake System - Exploded View

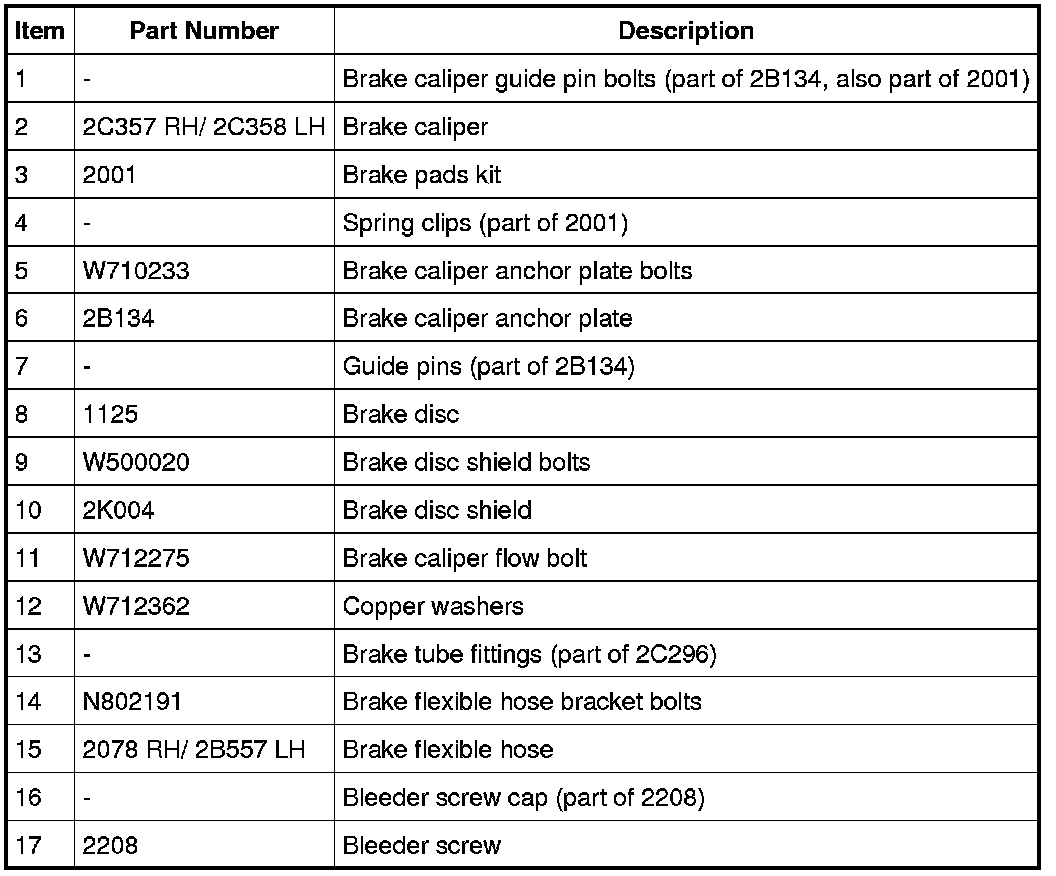

4.0L SOHC and 4.6L (3V)

NOTE: LH shown, RH similar.

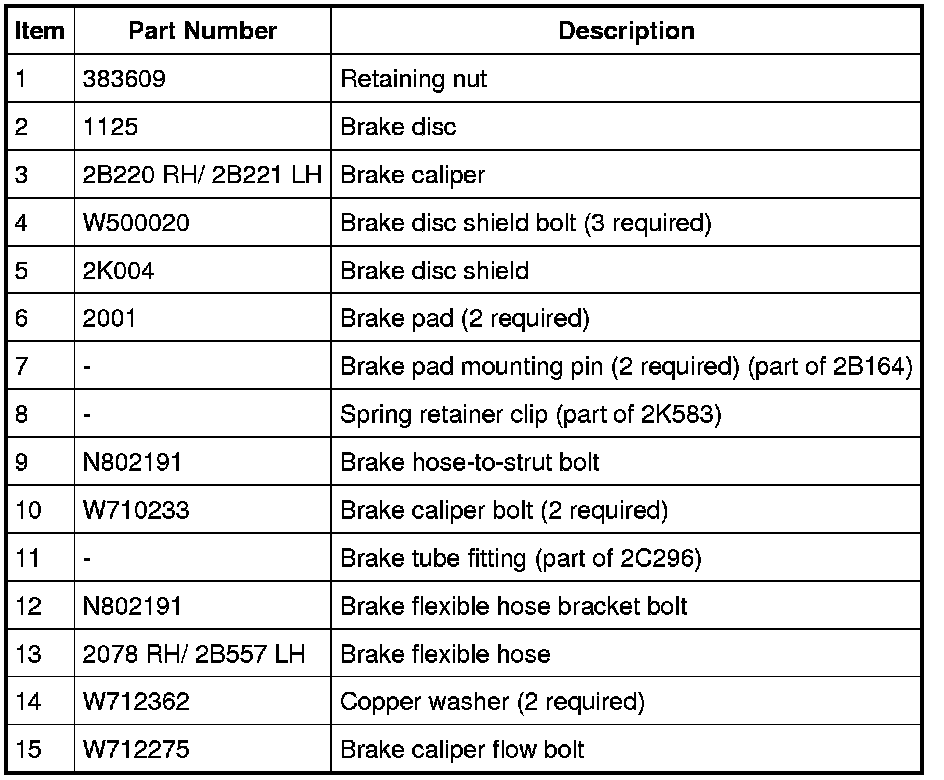

5.4L

NOTE: RH shown, LH similar










1. NOTE: A revised part, with the same base part number, has been released for the RH brake hose. When installing a new RH brake hose, position the anti-rotation tab on the mounting bracket toward the front of the vehicle and install the bolt with the head toward the rear of the vehicle.

For additional information, refer to the procedures.
