Rear Seat - Exploded View

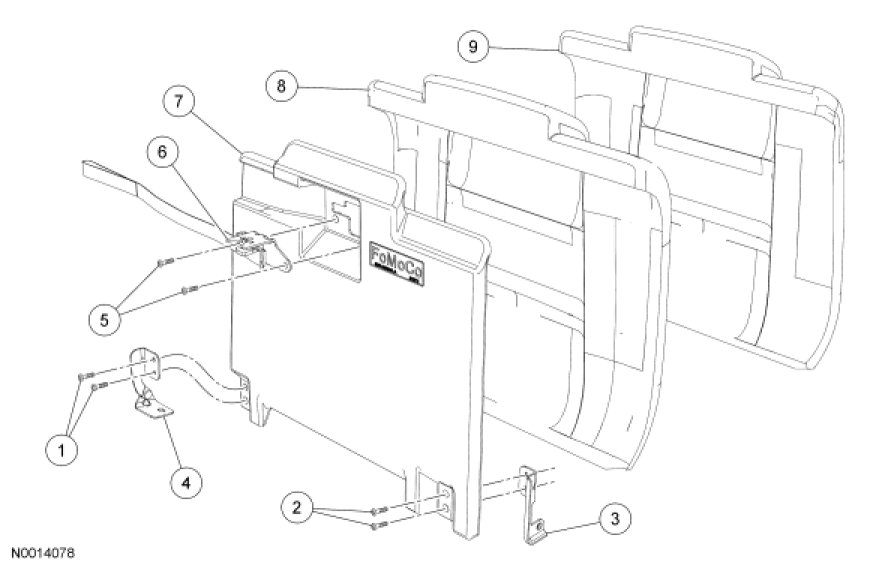

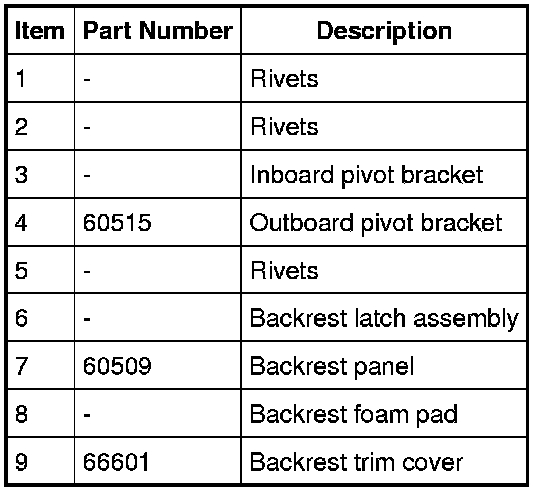

Seat - Exploded View, Rear

Hard Top 50 Percent Backrest









1. For additional information, refer to the procedures.
