Seat - Front

Seat - Front

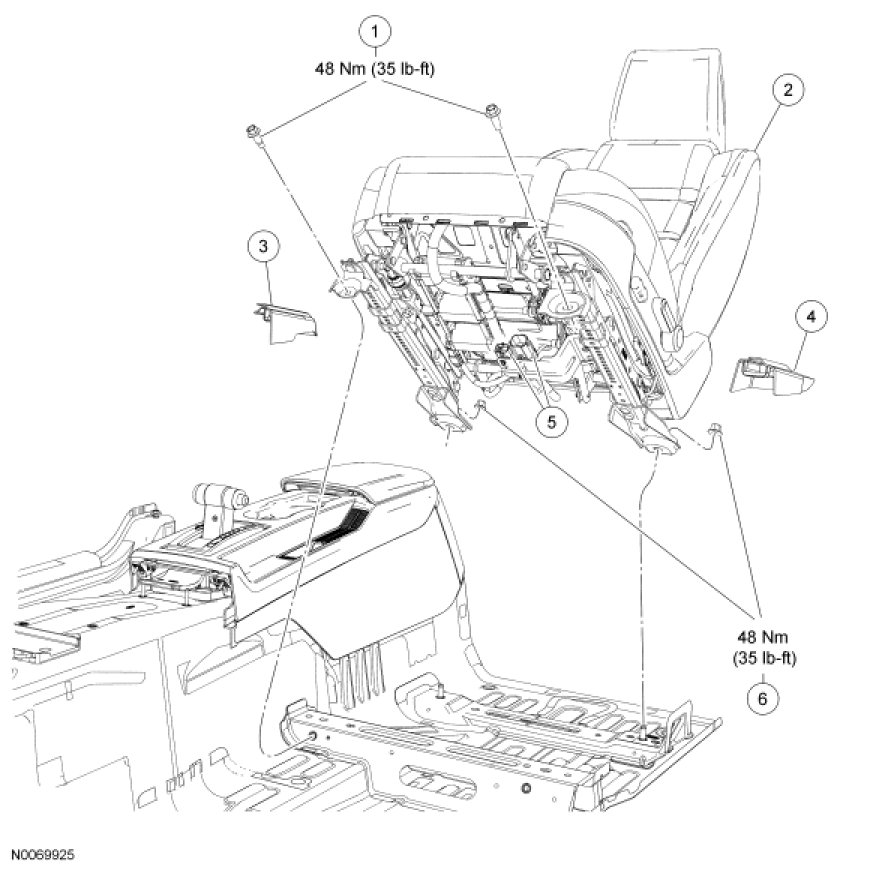

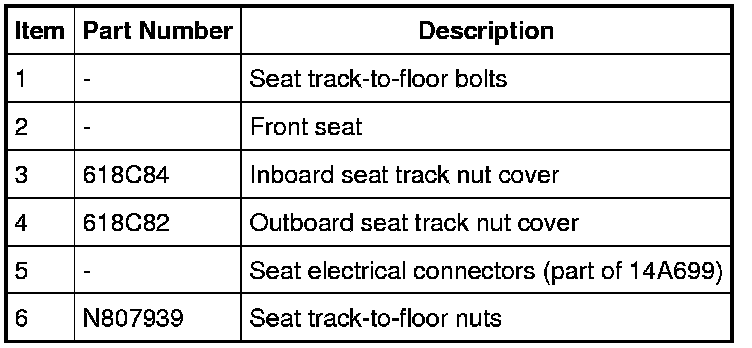

NOTE: LH shown, RH similar.










Removal and Installation

WARNING: Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

1. Position the seat to gain access to the seat track-to-floor nuts and bolts.

2. Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures of Air Bag Systems.

3. Remove the 2 seat track nut covers.

4. Remove the 2 seat track-to-floor nuts.
- To install, tighten to 48 Nm (35 lb-ft).

5. Remove the 2 seat track-to-floor bolts.
- To install, tighten to 48 Nm (35 lb-ft).

6. Disconnect the side air bag module and main seat harness electrical connectors and remove the seat.

7. To install, reverse the removal procedure.

8. Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures of Air Bag Systems.
