Rear Seat Backrest - Coupe

Seat Backrest - Rear, Coupe









Disassembly

1. Remove the rear seat cushion. For additional information, refer to Seat Cushion - Rear Removal and Replacement.

2. Remove the rear seat backrest. For additional information, refer to Seat Backrest - Rear Rear Seat Backrest.

3. Release the backrest trim cover J-strip and remove the staples.

4. Pull the backrest panel out from the backrest foam pad and backrest trim cover.
- During assembly, the latch release strap must come through the trim cover.

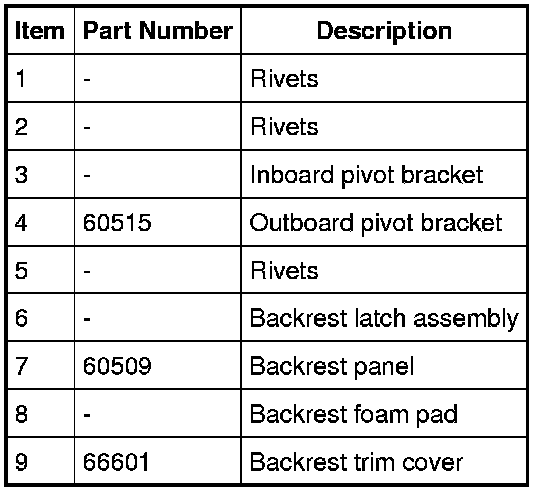

5. Remove the 4 rivets and pivot brackets.

6. Remove the rivets, separate the pin-type retainer from the cable end and remove the backrest latch assembly.

7. NOTICE: Use care when separating the seat backrest trim cover from the hook-and-loop strip. The hook-and-loop strip can be torn from the seat backrest foam.

Release the hook-and-loop strips and separate the backrest trim cover from the backrest foam pad.

8. To assemble, reverse the disassembly procedure.
