Pinpoint Test J: The Remote Keyless Entry (RKE) Transmitter Has Poor Range Performance
Locks, Latches and Entry Systems
Pinpoint Tests
Pinpoint Test J: The Remote Keyless Entry (RKE) Transmitter Has Poor Range Performance
Normal Operation
Remote locking and unlocking of the doors, activating the panic alarm, and releasing the luggage compartment lid latch is accomplished by the smart junction box (SJB) receiving a command message from the remote keyless entry (RKE) transmitter through the Tire Pressure Monitoring System (TPMS)/Remote Keyless Entry (RKE) antenna. The SJB processes the command and provides the appropriate output. The RKE transmitter has a normal operating range of 10 m (33 ft).

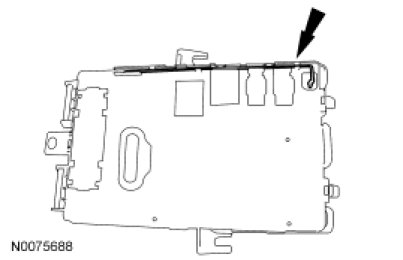

The TPMS/RKE antenna is located externally on the SJB.
This pinpoint test is intended to diagnose the following:
- Aftermarket systems
- High power devices
- RKE transmitter
- RKE transmitter battery
- TPMS/RKE antenna
- TV/radio transmission towers
- SJB
PINPOINT TEST J: THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER HAS POOR RANGE PERFORMANCE
NOTE: All RKE transmitters must be present to begin diagnosis of the RKE system.
NOTE: Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.
-------------------------------------------------
J1 CHECK FOR THE CORRECT RKE TRANSMITTERS
- NOTE: Make sure the RKE transmitters are those provided with the original equipment manufacturer (OEM) system and not from an aftermarket or a dealer installed system that may have been installed on the vehicle.
- Check that the correct RKE transmitters are used with the vehicle.
- Are all the correct RKE transmitters present?
Yes
GO to J2.
No
The system cannot be tested without the correct RKE transmitters. INFORM the customer that all the correct RKE transmitters must be present to proceed with diagnosis of the system.
-------------------------------------------------
J2 CHECK ALL RKE TRANSMITTERS FOR POOR RANGE PERFORMANCE
- NOTE: The 3 m (10 ft) measurement of range is not the standard but is a guideline that clearly indicates a vehicle is experiencing poor range performance.
- Check all RKE transmitters for poor range performance (less than 3 m [10 ft]).
- Do all RKE transmitters experience poor range?
Yes
GO to J4.
No
GO to J3.
-------------------------------------------------
J3 CHECK THE RKE TRANSMITTER BATTERY
- Using a thin coin, open the RKE transmitter.
- Do not clean off any grease from the battery terminals on the back surface of the circuit board.
- Verify the correct battery is used (CR2032).
- Remove the RKE transmitter battery and measure the voltage.
- Is the voltage greater than 2.5 volts?
Yes
REPLACE the inoperative RKE transmitter and PROGRAM all RKE transmitters. REFER to Remote Keyless Entry (RKE) Transmitter Programming Transmitter. INFORM the customer that any RKE transmitters not present need to be programmed. TEST the system for normal operation.
No
INSTALL a new battery (make sure the battery is seated correctly). DO NOT reprogram the RKE transmitters (weak or dead batteries do not erase TICs from memory). TEST the system for normal operation.
-------------------------------------------------
J4 CHECK THE LOCATION OF THE VEHICLE AND THE APPROACH ANGLES AROUND THE VEHICLE
- Make sure the poor performance is consistent in nature and is not from one approaching angle.
- The RKE transmitter range performance may be degraded in certain locations. For example, if the vehicle is within 0.8 km (0.5 mile) of high power devices or radio/TV towers, the operating distance of the RKE transmitters may be reduced.
- Is the poor range performance consistent around the vehicle?
Yes
GO to J5.
No
The system is operating correctly at this time. TEST the system for normal operation.
-------------------------------------------------
J5 CHECK THE TPMS/RKE ANTENNA
- Verify the TPMS/RKE antenna is connected and not damaged.
- Is the antenna OK?
Yes
GO to J6.
No
If the antenna is disconnected, CONNECT the antenna correctly. TEST the system for normal operation.
If the antenna is damaged, INSTALL a new SJB. TEST the system for normal operation.
-------------------------------------------------
J6 CHECK FOR CORRECT SJB OPERATION
- Disconnect all the SJB connectors.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect all the SJB connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
Yes
INSTALL a new SJB. TEST the system for normal operation.
No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
-------------------------------------------------
