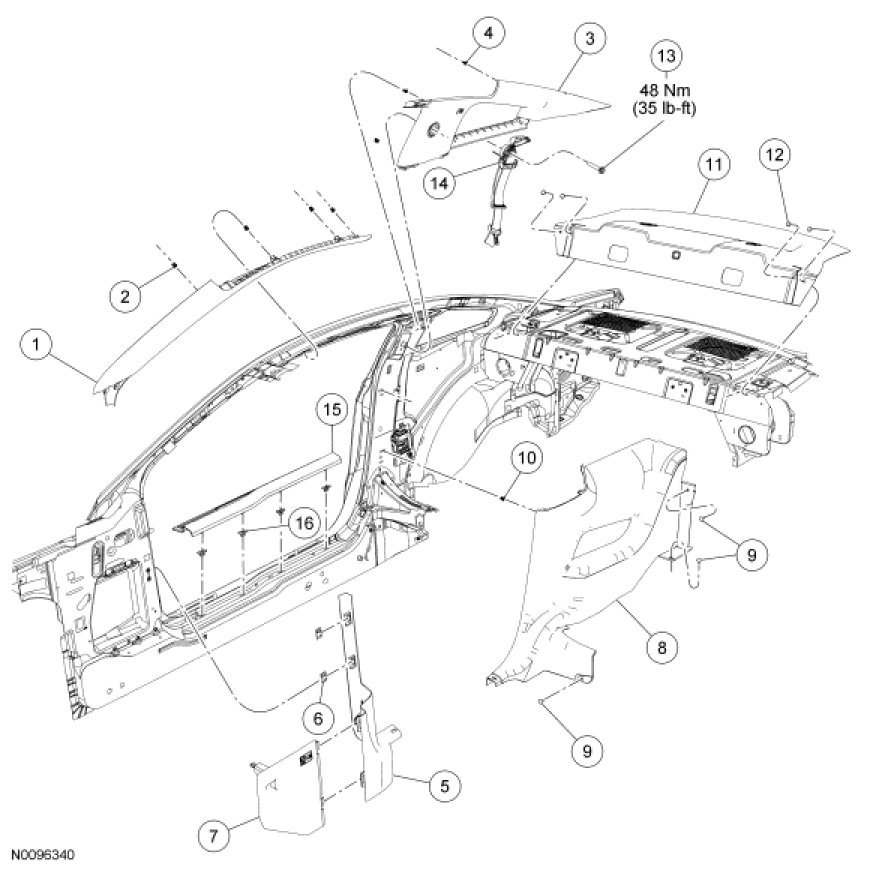

Interior Trim - Exploded View




Interior Trim - Exploded View

NOTE: Coupe shown, convertible similar.

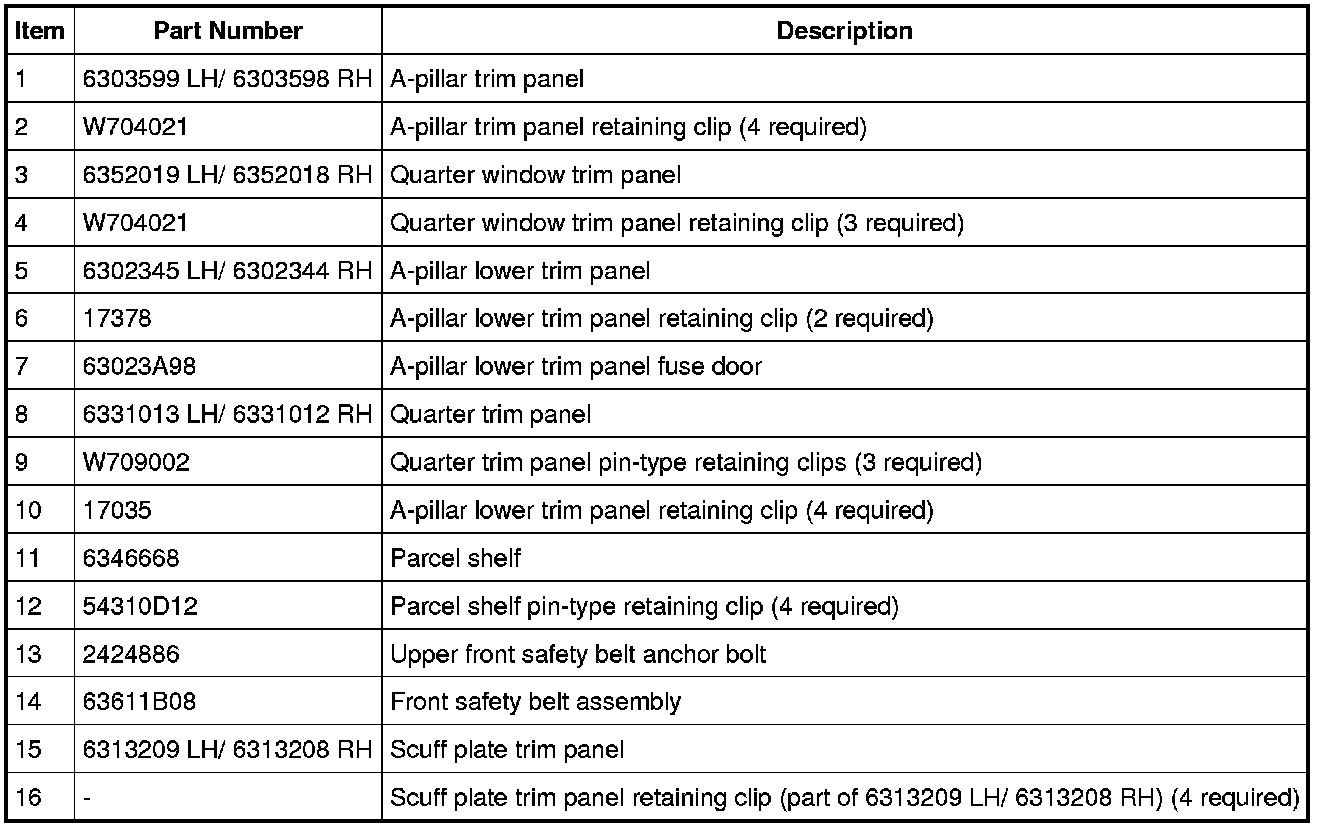

1. For additional information, refer to the procedures.
