A-Pillar Trim Panel

A-Pillar Trim Panel

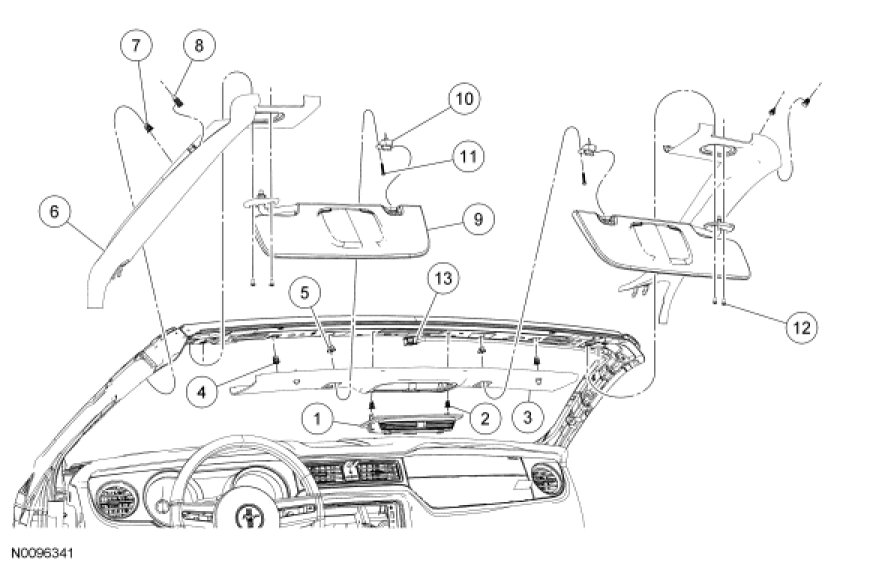

NOTE: Convertible shown, coupe similar.










Removal and Installation

1. Remove the 2 sun visor screws and set the sun visor aside.

2. Pull outward on the A-pillar trim to release the retaining clip and the pushpin from the body.

3. Pull slightly down and straight back on the A-pillar to unhook the front lower portions of the A-pillar trim panel.

4. NOTE: To avoid any damage to the A-pillar trim panel, remove any clips from the body and attach them to the A-pillar trim panel.

To install, reverse the removal procedure.
