Headliner: Service and Repair

Headliner

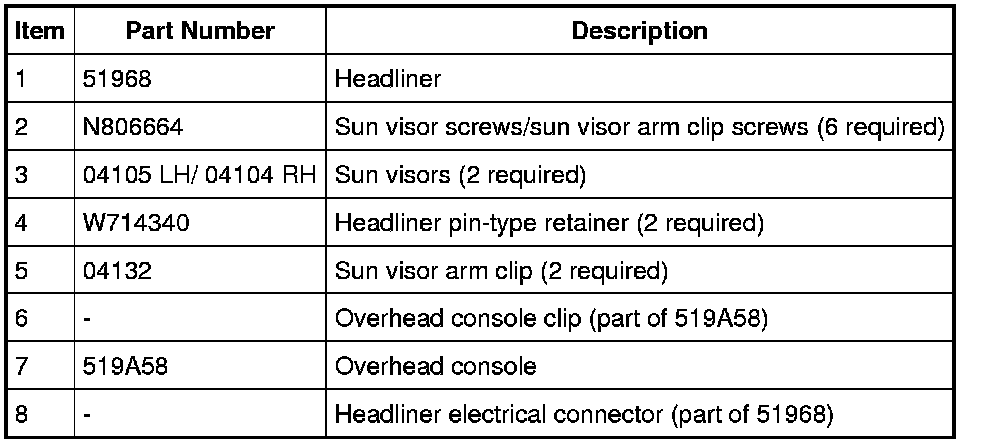

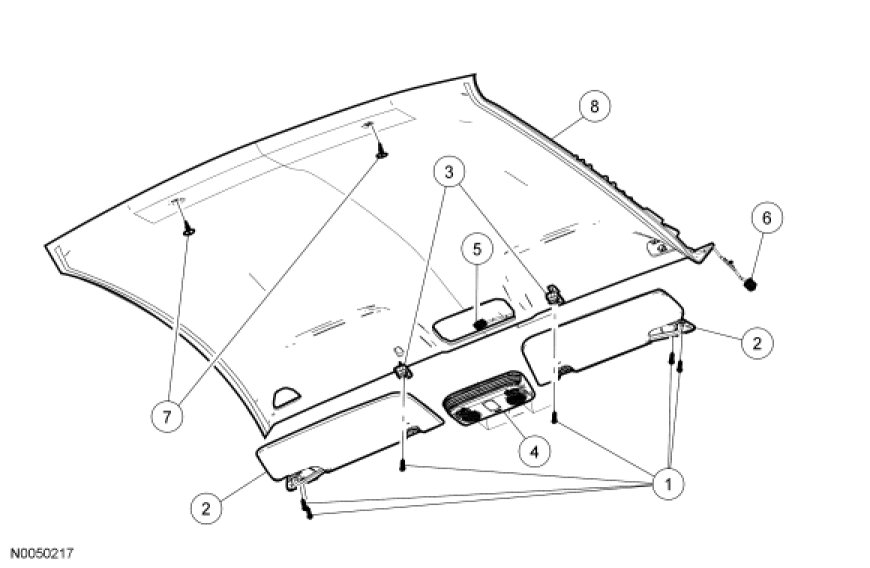

Coupe

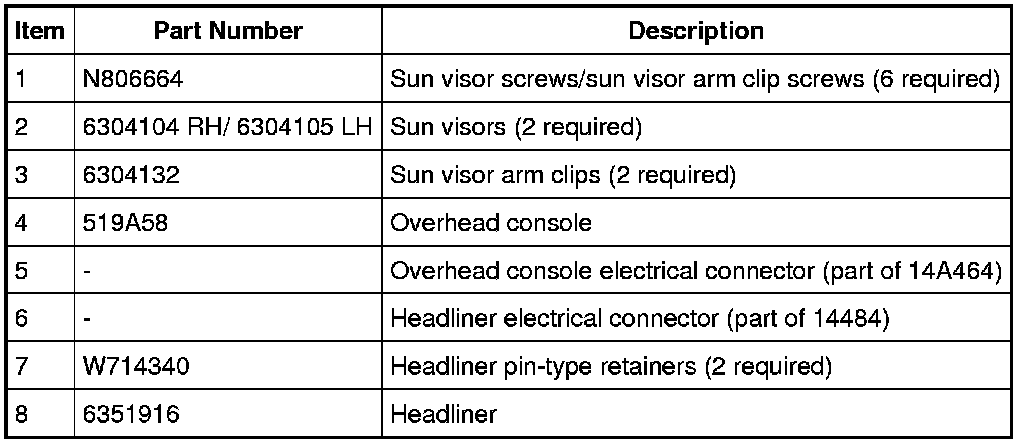

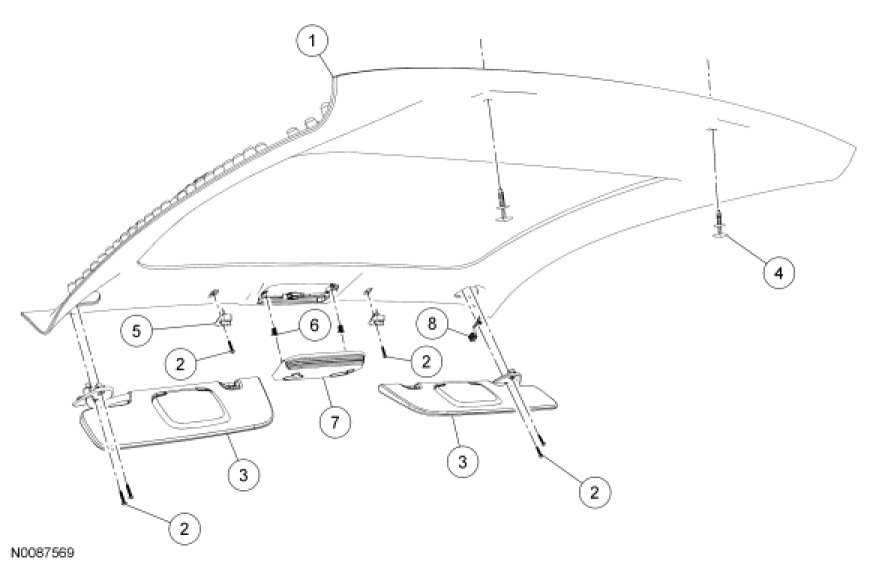

Glass Roof









Removal and Installation

1. Remove the quarter window trim panel. For additional information, refer to Quarter Window Trim Panel Quarter Window Trim Panel.

2. Remove the 6 sun visor screws, the 2 sun visors and the 2 sun visor arm clips.

3. Remove the overhead console.
- Disconnect the electrical connector.

4. Remove the 2 headliner pin-type retainers.

5. Disconnect the headliner electrical connector and remove the headliner.

6. NOTE: A new headliner will need to be installed if the headliner is folded during removal or installation.

To install, reverse the removal procedure.
