Front Fender: Service and Repair

Fender

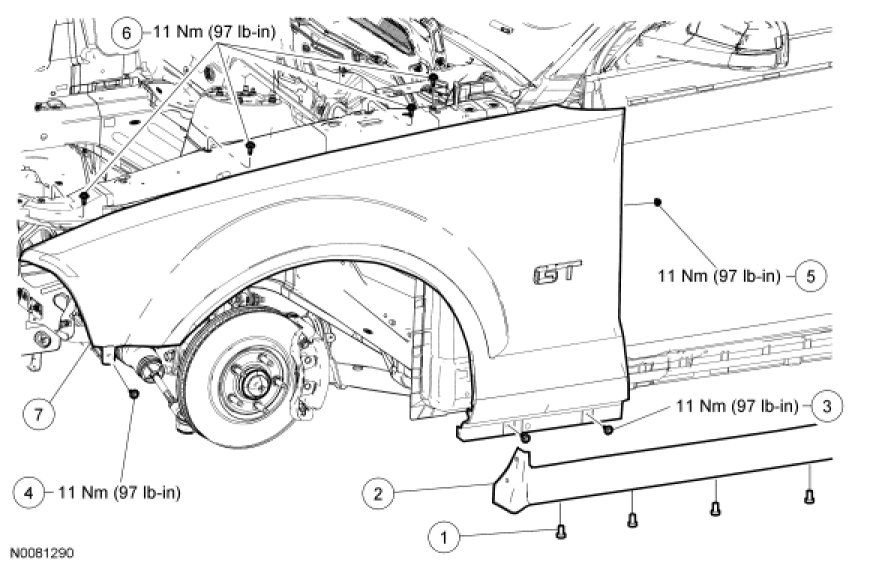

Removal and Installation

Both fenders

1. Remove the front bumper cover.

2. Remove the fender splash shield. For additional information, refer to Fender Splash Shield Service and Repair.

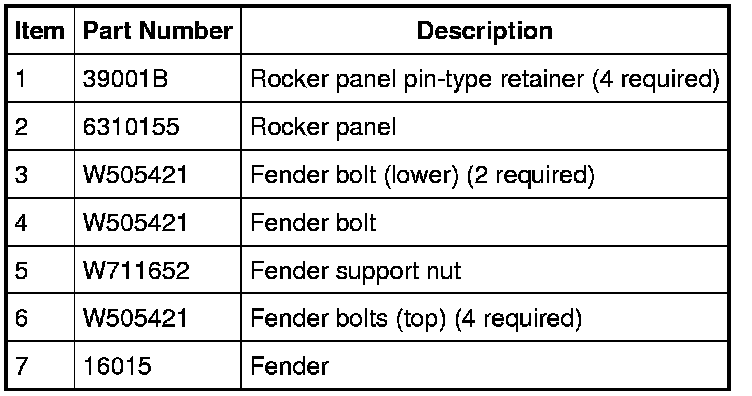

3. Remove the 4 front rocker panel pin-type retainers and position the rocker panel aside.

4. Remove the 2 lower fender bolts.
- To install, tighten to 11 Nm (97 lb-in).

5. Remove the fender bolt.

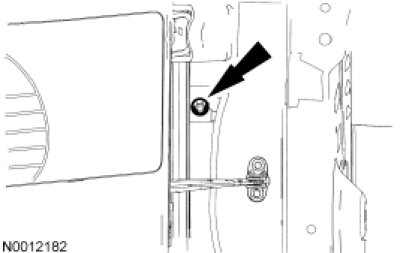

6. Remove the fender support nut through the door opening.
- To install, tighten to 11 Nm (97 lb-in).





Right fender

7. Disconnect the antenna lead-in cable.

8. Disconnect the hood ajar switch.

Both fenders

9. Remove the 4 top fender bolts and the fender.
- To install, tighten to 11 Nm (97 lb-in).

10. To install, reverse the removal procedure.
