Front Door: Service and Repair

Door

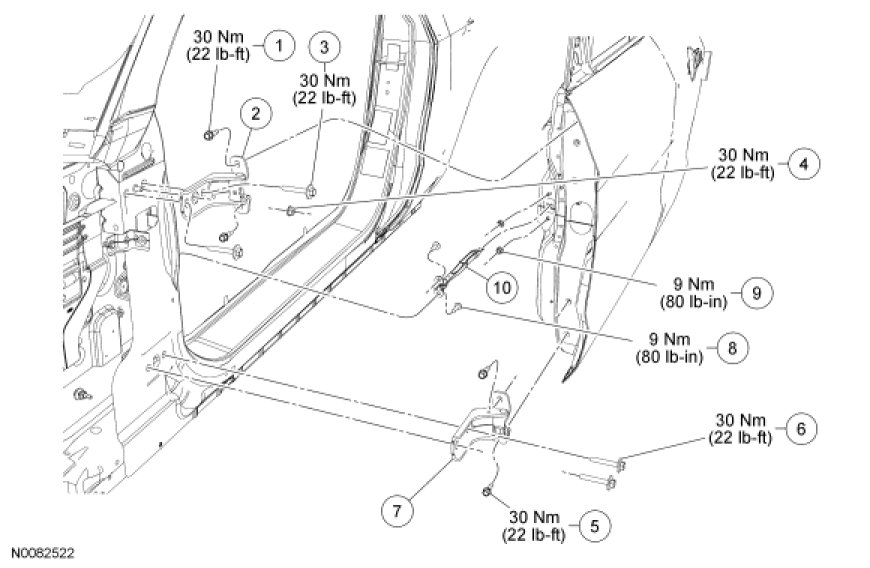

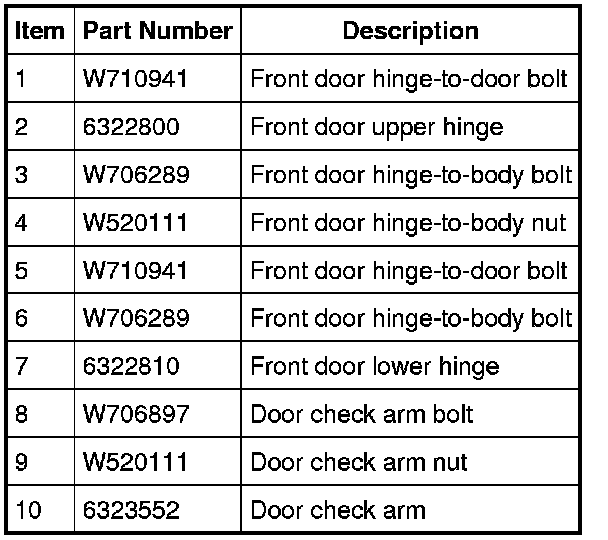

NOTE: Front door shown, rear door similar.










Removal and Installation

1. Remove the door check arm bolts.
- To install, tighten to 9 Nm (80 lb-in).

2. NOTICE: To minimize the possibility of cross threading, hand start all fasteners during the installation.

NOTICE: To avoid damaging the door, this step requires the help of an assistant.

Mark the position of each hinge and remove the hinge-to-door bolts.

- To install, tighten to 30 Nm (22 lb-ft).

3. Disconnect the door electrical connector at the A-pillar.

4. Remove the front door.

5. To install, reverse the removal procedure.
- If necessary, align the door. For additional information, refer to Door Alignment Door Alignment.
