Bumper - Exploded View, Front




Bumper - Exploded View, Front

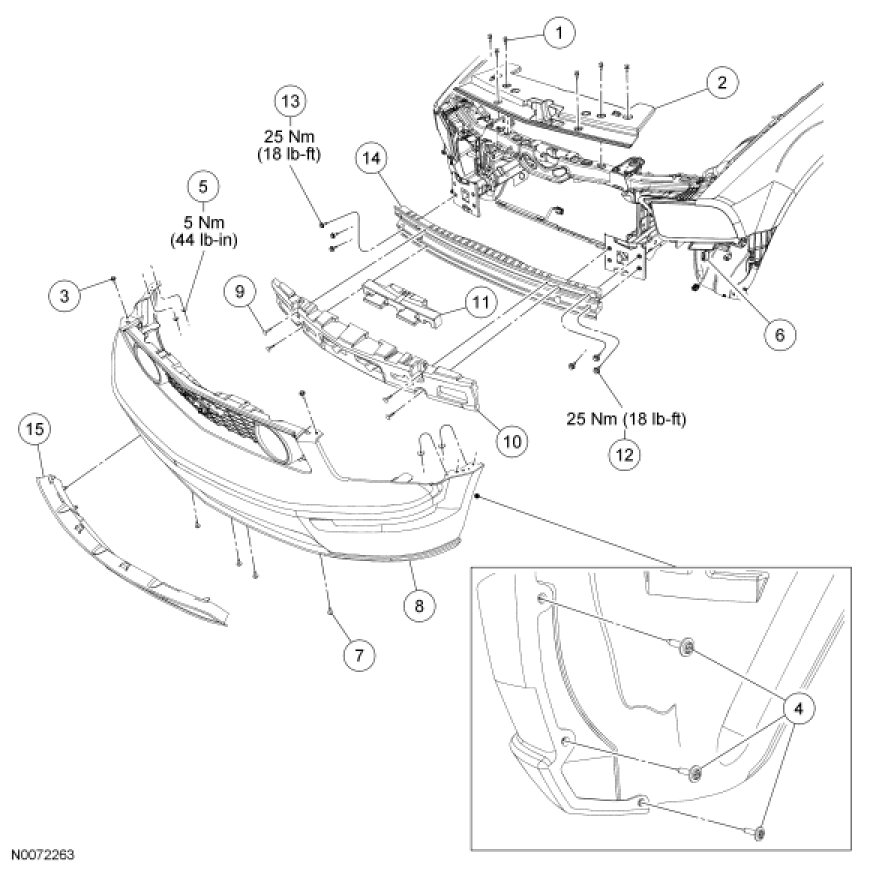

Base Vehicle and GT

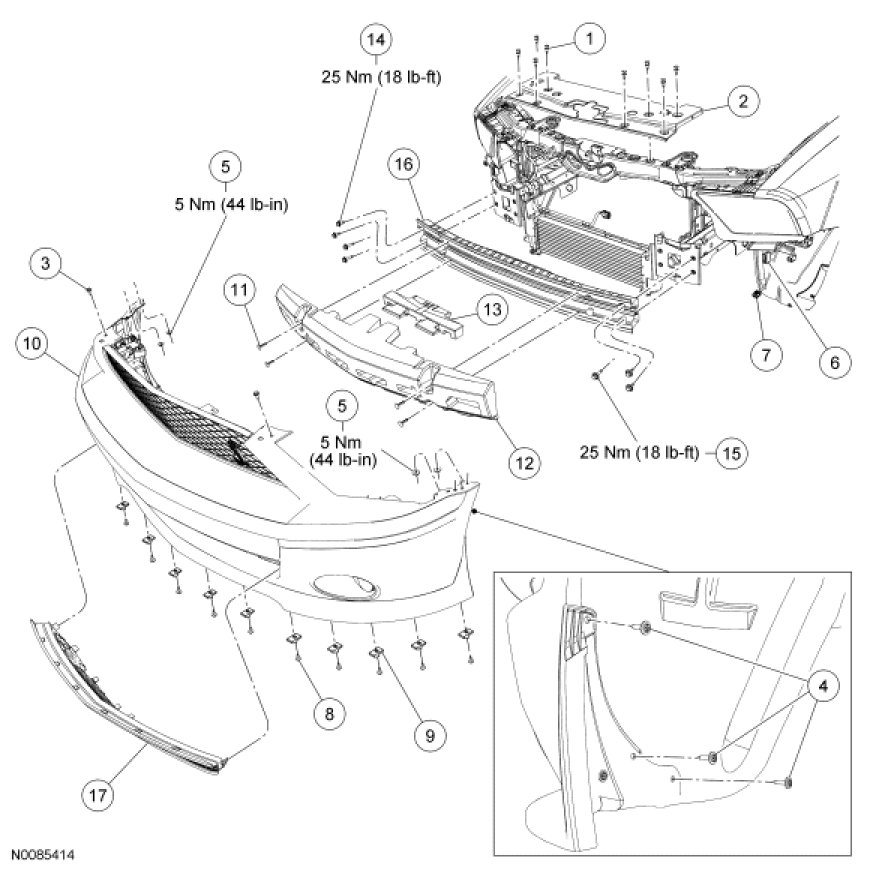

Shelby GT 500

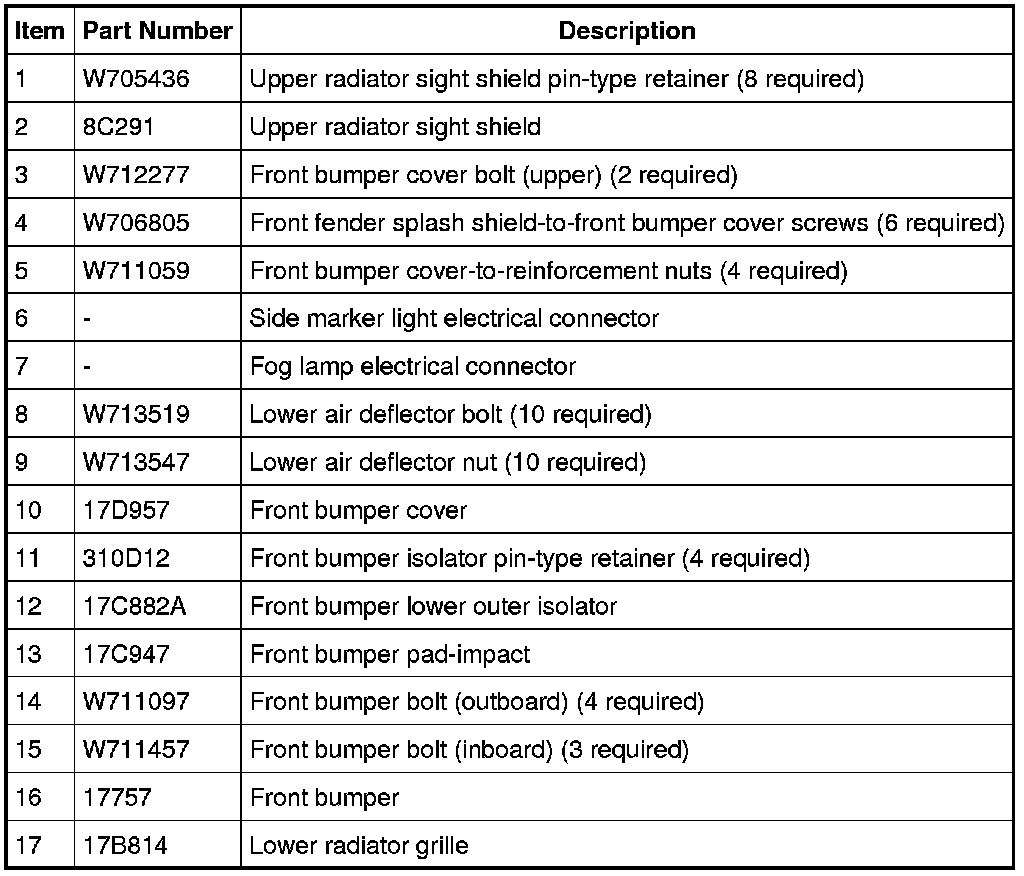

1. For additional information, refer to the procedures.
