Removal and Replacement

Satellite Digital Audio Receiver System (SDARS) Module









Removal and Installation

1. NOTE: Module configuration is only required if a new Satellite Digital Audio Receiver System (SDARS) module is being installed.

Upload the SDARS module configuration information to the scan tool.

2. Set the RH luggage compartment trim aside.
- Remove the push-pins, as required.

3. NOTE: When installing the nuts, tighten the 2 rear nuts before tightening the front 2 nuts.

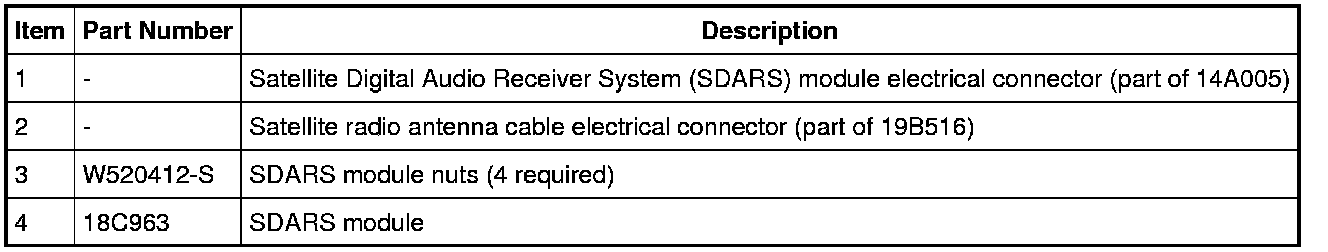

Remove the 4 nuts and the SDARS module.

- Disconnect the electrical connectors.

- To install, tighten the nuts to 7 Nm (62 lb-in).

4. To install, reverse the removal procedure.
- Download the configuration information to the SDARS module.
