Alarm Horn: Service and Repair

Anti-Theft Alarm Horn









Removal and Installation

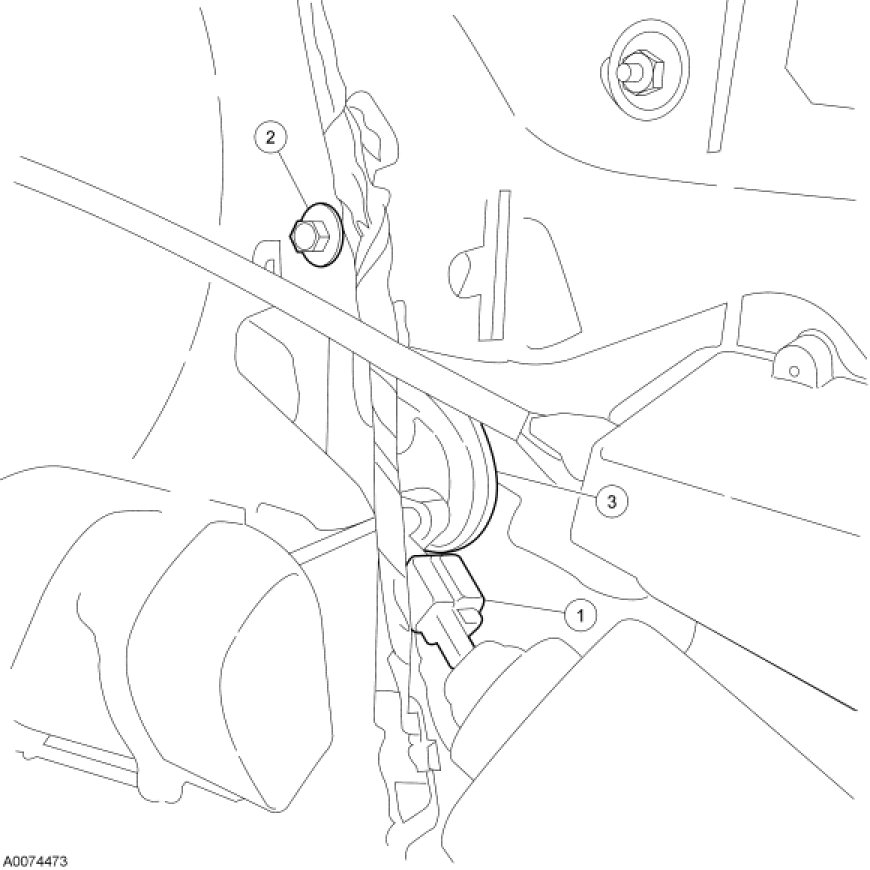

1. Remove the RH quarter trim panel.

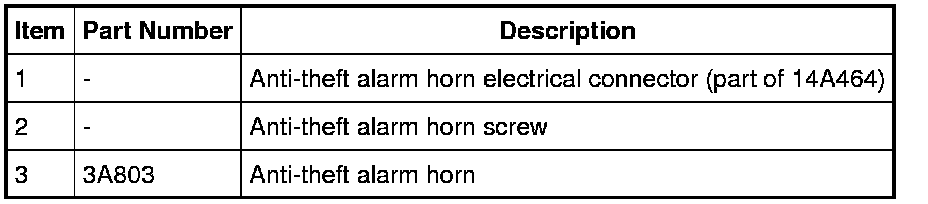

2. Disconnect the anti-theft alarm horn electrical connector.

3. Remove the screw and the anti-theft alarm horn.

4. To install, reverse the removal procedure.
