FNR5

Transaxle Support Insulator

Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the battery and battery tray.

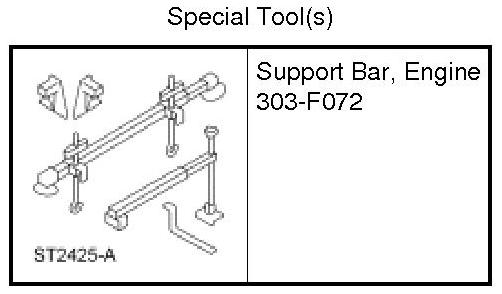

3. Using the Engine Support Bar, support the engine.

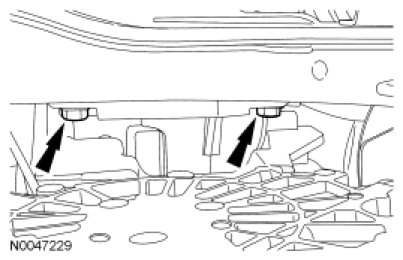

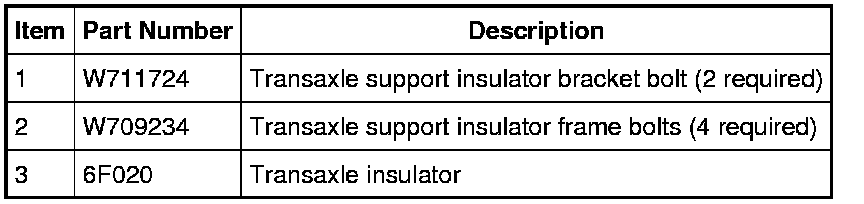

4. Remove the transaxle support insulator bracket bolts.

5. Remove the transaxle support insulator frame bolts.

6. Remove the 4 screws and position the LH fender splash shield aside.

7. Remove the 6 pin-type retainers and the LH front structure-to-subframe splash shield.

8. Remove the transaxle support insulator frame bolts and remove the insulator.

Installation

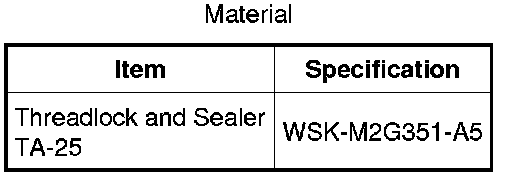

1. Clean the transaxle support insulator frame bolts using a wire brush and apply new threadlock to the threads.

2. Position the transaxle support insulator in place and install the transaxle support insulator frame bolts.
- Tighten to 62 Nm (46 lb-ft).

3. Position the LH front structure-to-subframe splash shield in place and install the 6 pin-type retainers.

4. Position the LH splash shield in place and install the 4 screws.

5. Install the 2 upper transaxle support insulator frame bolts.
- Tighten to 62 Nm (46 lb-ft).

6. Install the 2 transaxle support insulator bracket bolts.
- Tighten to 90 Nm (66 lb-ft).

7. Remove the Engine Support Bar.

8. Install the battery and battery tray.
