Transmission Fluid Cooler Tubes - FNR5

Transmission Fluid Cooler Tubes - FNR5

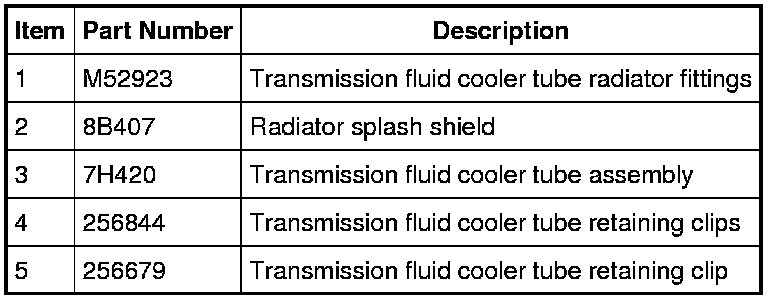

Transmission Cooler Tubes - FNR5









Removal

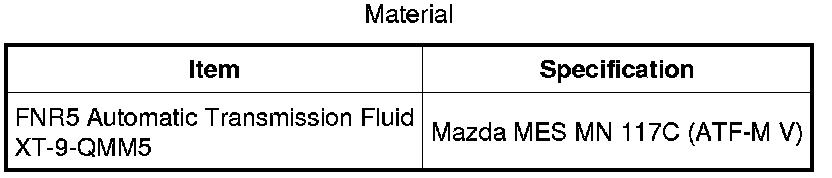

NOTICE: The use of any transmission fluid other than what is recommended for this transaxle will cause transaxle damage.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the upper transmission fluid cooler tube from the radiator.





3. Remove the bolts and the splash shield.





4. Remove the front splash shield.

1. Remove the 2 screws.

2. Remove the 4 retainers.

3. Remove the 4 bolts and the splash shield.





5. Disconnect the lower transmission fluid cooler tube from the radiator.





6. NOTICE: Use care not to overstretch or extend the hose clamps as damage may occur to the hose clamp and cause a leak.

NOTICE: The hose clamps are held on the hose with a special epoxy. Damage may occur to the hose if the clamp is removed from the hose. If the clamp or hose is damaged, install a new fluid cooler tube.

Disconnect the transmission fluid cooler hoses from the transmission.





7. NOTE: When removing the transmission fluid cooler tubes from the retainers, do not remove the retainers from the shroud.

Remove the transmission fluid cooler tubes from the retainers.





8. Remove the transmission fluid cooler tube retainer and remove the transmission fluid cooler tubes.





Installation

1. Position the transmission fluid cooler tubes in place and install the retainer.





2. Install the transmission fluid cooler tubes in the retainers.





3. NOTE: The power steering hose is routed between the 2 transmission fluid cooler hoses.

Position the transmission fluid cooler hoses in place.





4. NOTICE: Use care not to overstretch or extend the hose clamps as damage may occur to the hose clamp and cause a leak.

NOTICE: The hose clamps are held on the hose with a special epoxy. Damage may occur to the hose if the clamp is removed from the hose. If the clamp or hose is damaged, install a new fluid cooler tube.

Connect the transmission fluid cooler hoses to the transaxle.





5. Install the lower transmission fluid cooler tube to the radiator.
- Tighten to 30 Nm (22 lb-ft).





6. Install the front splash shield.

1. Position the splash shield in place and install the 2 screws.

2. Install the 4 retainers.

3. Install the 4 bolts.





7. Install the splash shield and the bolts.





8. Install the upper transmission fluid cooler tube to the radiator.
- Tighten to 30 Nm (22 lb-ft).





9. Check the transmission fluid level and add transmission fluid as necessary.
