Evaporative Emissions Hose: Service and Repair

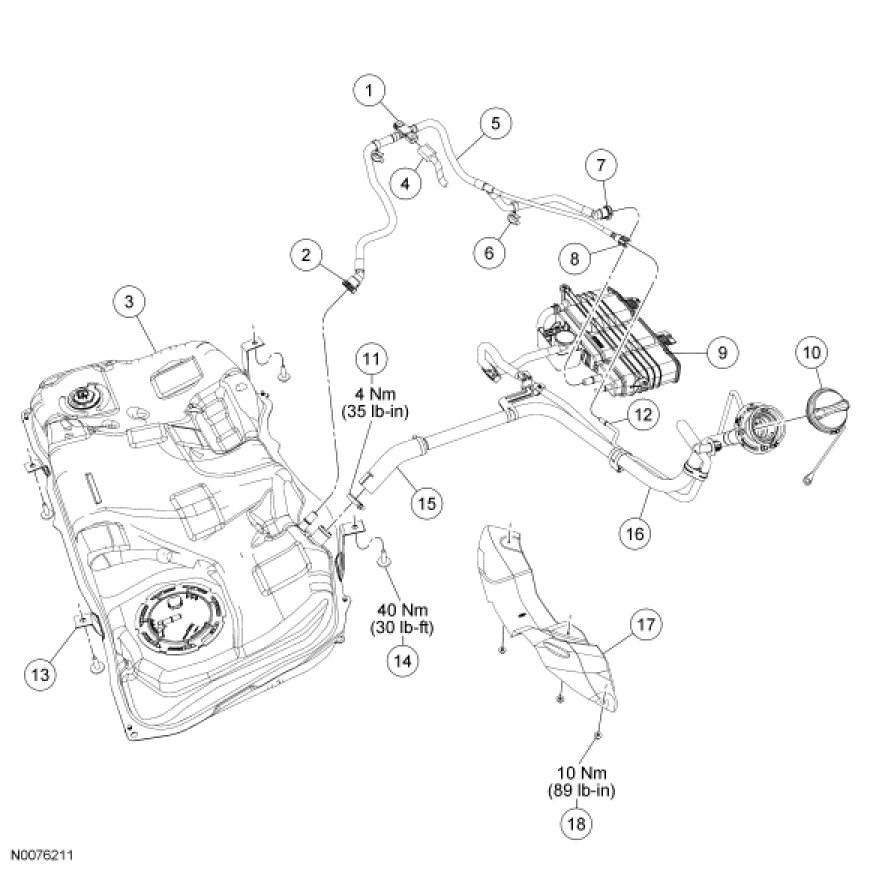

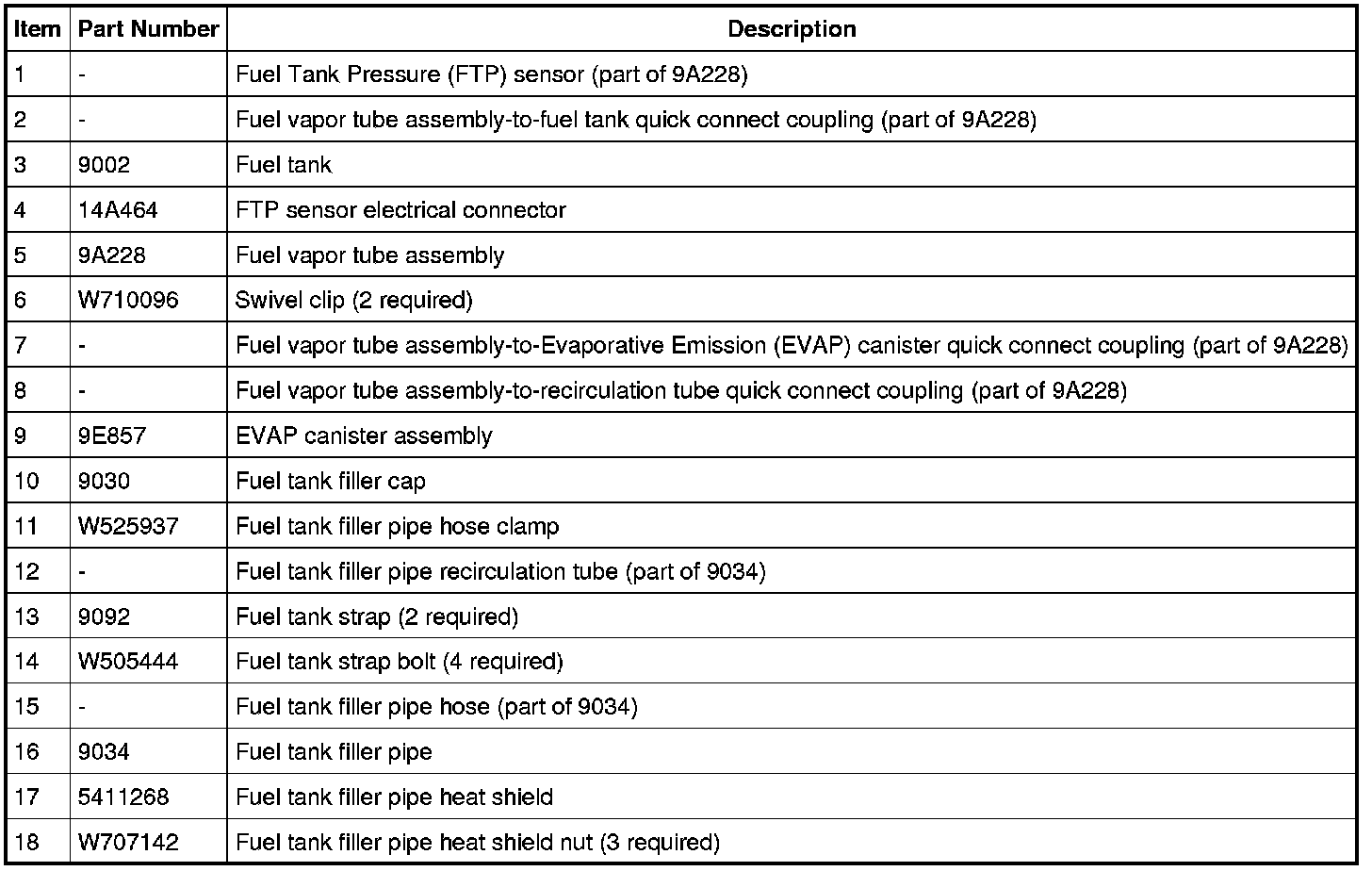

Fuel Vapor Tube Assembly - All Wheel Drive (AWD)
Removal and Installation
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Remove the fuel filler cap slowly. The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap. Otherwise, fuel may spray out. Failure to follow these instructions may result in serious personal injury.
WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Carefully turn the fuel tank filler cap counterclockwise approximately one-fourth turn until the thread disengages and position aside.
4. NOTICE: When the Fuel Draining Hose is removed, the fitting on the end of the hose can become detained by the safety valve. Carefully remove the hose using a gentle agitating motion to avoid detaching the hose from the fitting.

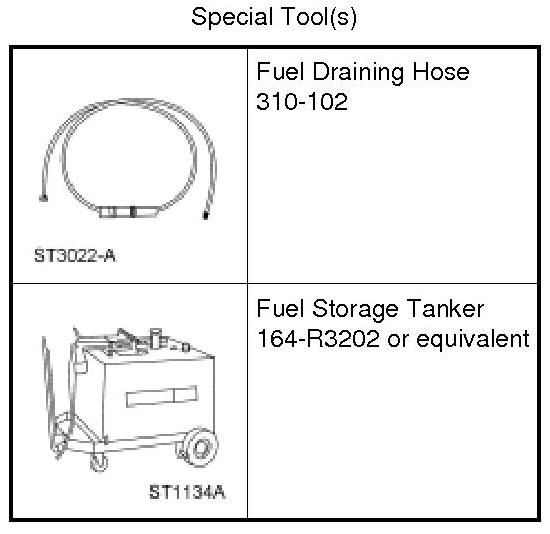

NOTE: The Fuel Draining Hose must be inserted into the fuel tank filler pipe until the fitting on the end of the hose enters into the fuel tank, opening the safety valve.
Insert the Fuel Draining Hose into the fuel tank filler pipe.
5. NOTE: This step will remove approximately one-eighth tank of the fuel from a completely full fuel tank and the majority of any residual fuel in the fuel tank filler pipe.
Attach the Fuel Storage Tanker to the Fuel Draining Hose and remove as much fuel as possible from the fuel tank and fuel tank filler pipe.
6. Remove the 3 nuts and the fuel tank filler pipe heat shield.
- To install, tighten to 10 Nm (89 lb-in).
7. Disconnect the Fuel Tank Pressure (FTP) sensor electrical connector.
8. Disconnect the fuel vapor tube assembly-to-Evaporative Emission (EVAP) canister quick connect coupling.
9. Disconnect the fuel vapor tube assembly-to-recirculation tube quick connect coupling.
10. Release the 2 swivel clips.
11. Install a suitable lifting device under the fuel tank.
12. Remove the 4 bolts and the fuel tank straps.
- To install, tighten to 40 Nm (30 lb-ft).
13. Partially lower the fuel tank enough to access the fuel tank filler pipe hose clamp.
14. NOTE: Some residual fuel may remain in the fuel tank filler pipe. When removing the filler pipe, carefully drain the fuel into a suitable container.
Release the clamp and disconnect the fuel tank filler pipe hose from the fuel tank.
- To install, tighten to 4 Nm (35 lb-in).
15. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling.
16. Remove the fuel vapor tube assembly.
17. To install, reverse the removal procedure.
- Carry out the Evaporative Emission System Leak Test. For additional information, refer to Evaporative Emission System Leak Test Testing and Inspection.
