Instrument Cluster / Carrier: Locations

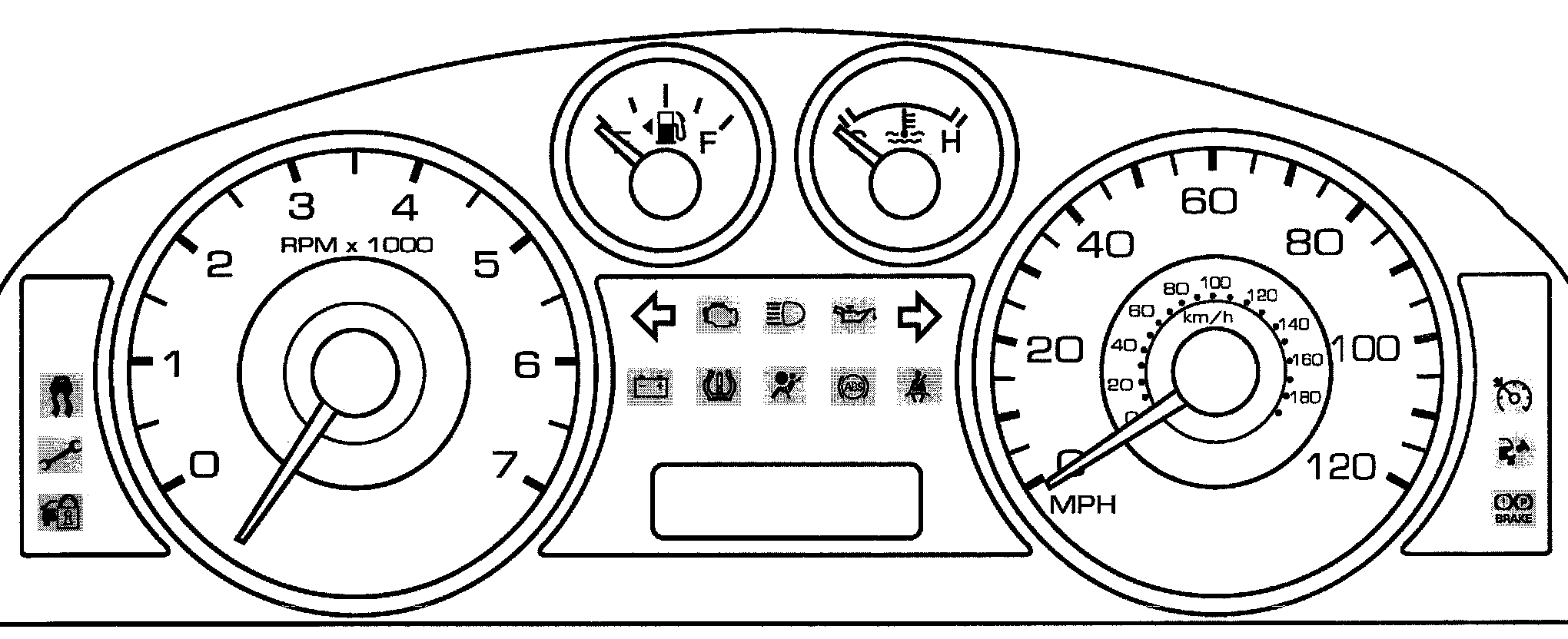

Standard Instrument Cluster:

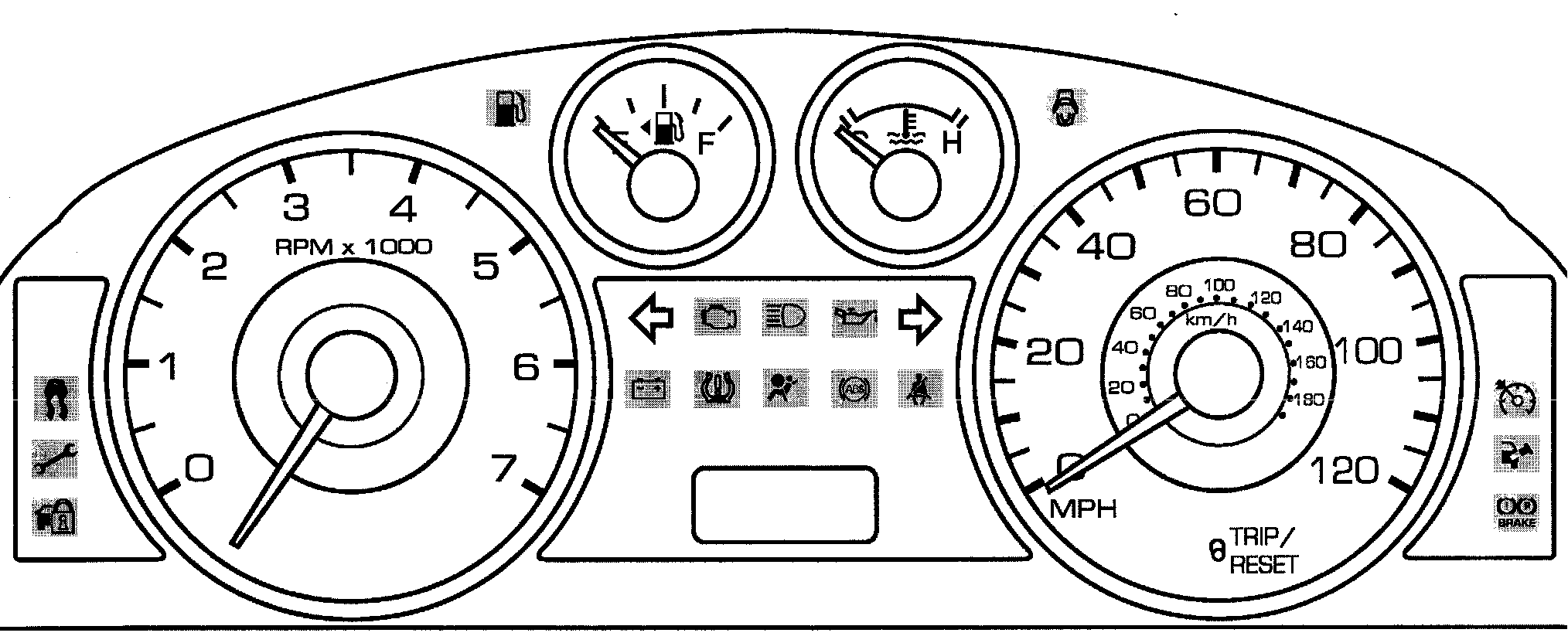

Optional Instrument Cluster:

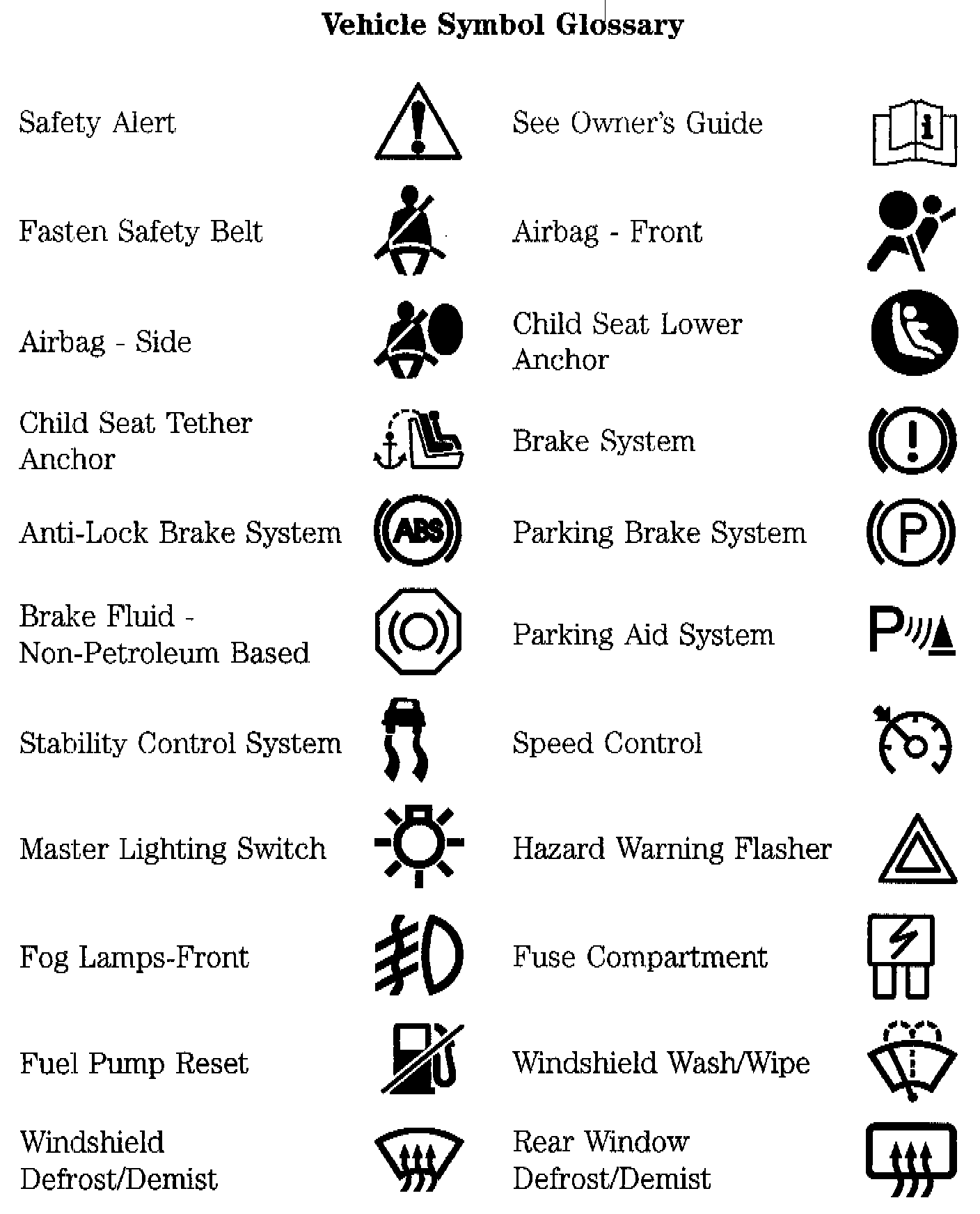

Vehicle Symbol Glossary Part 1 Of 2:

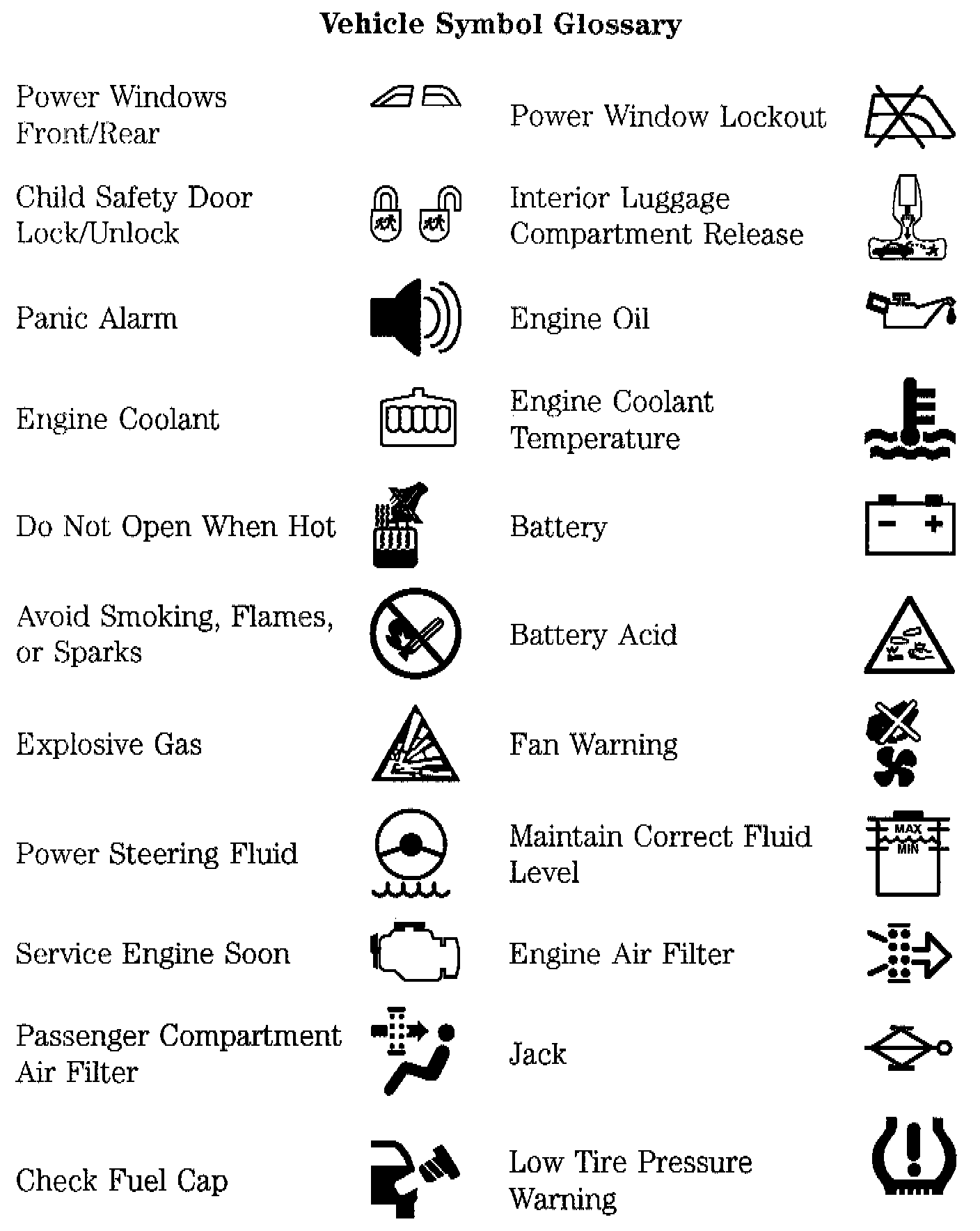

Vehicle Symbol Glossary Part 2 Of 2:
