Splices

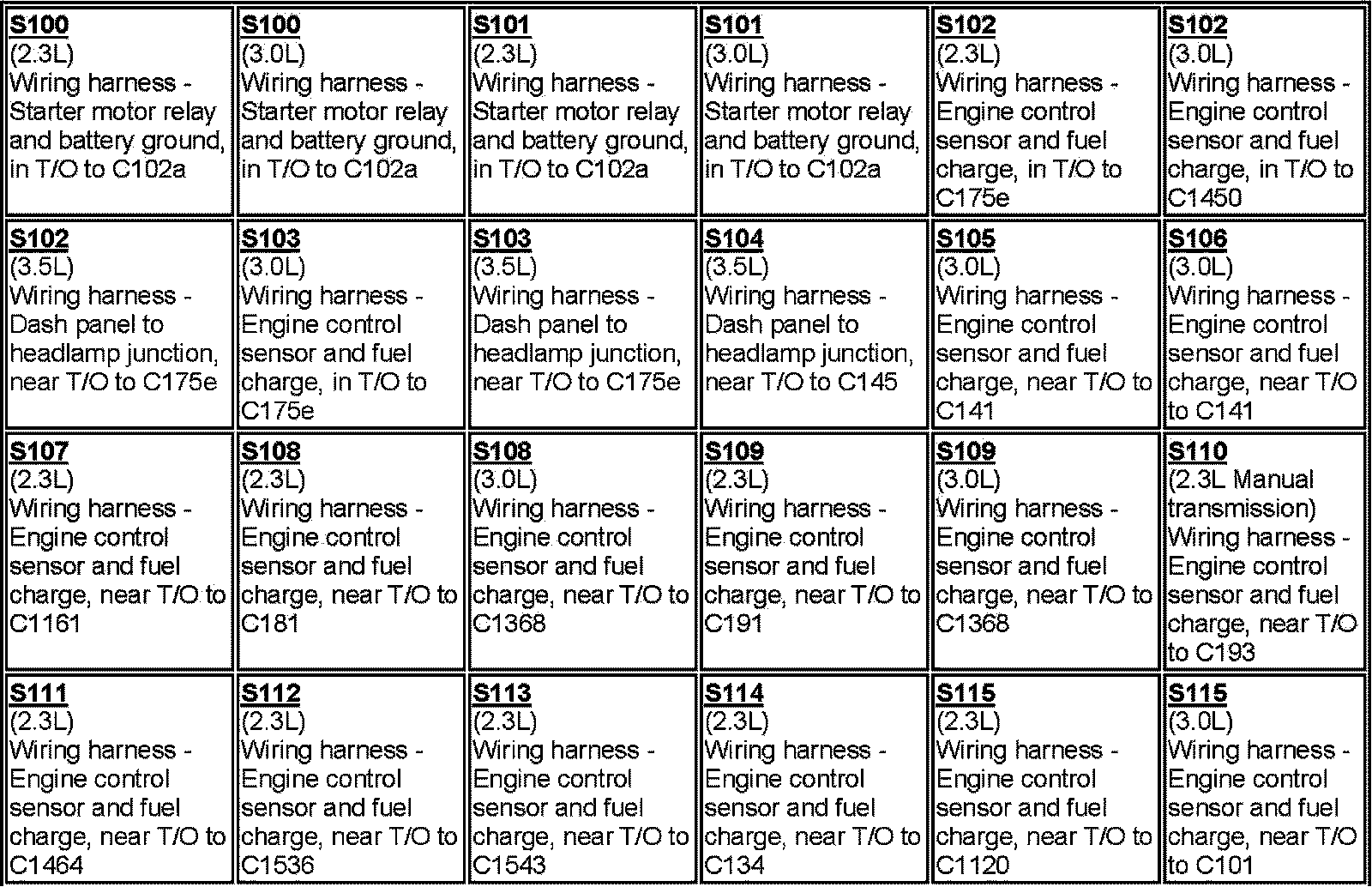

S100-S115:

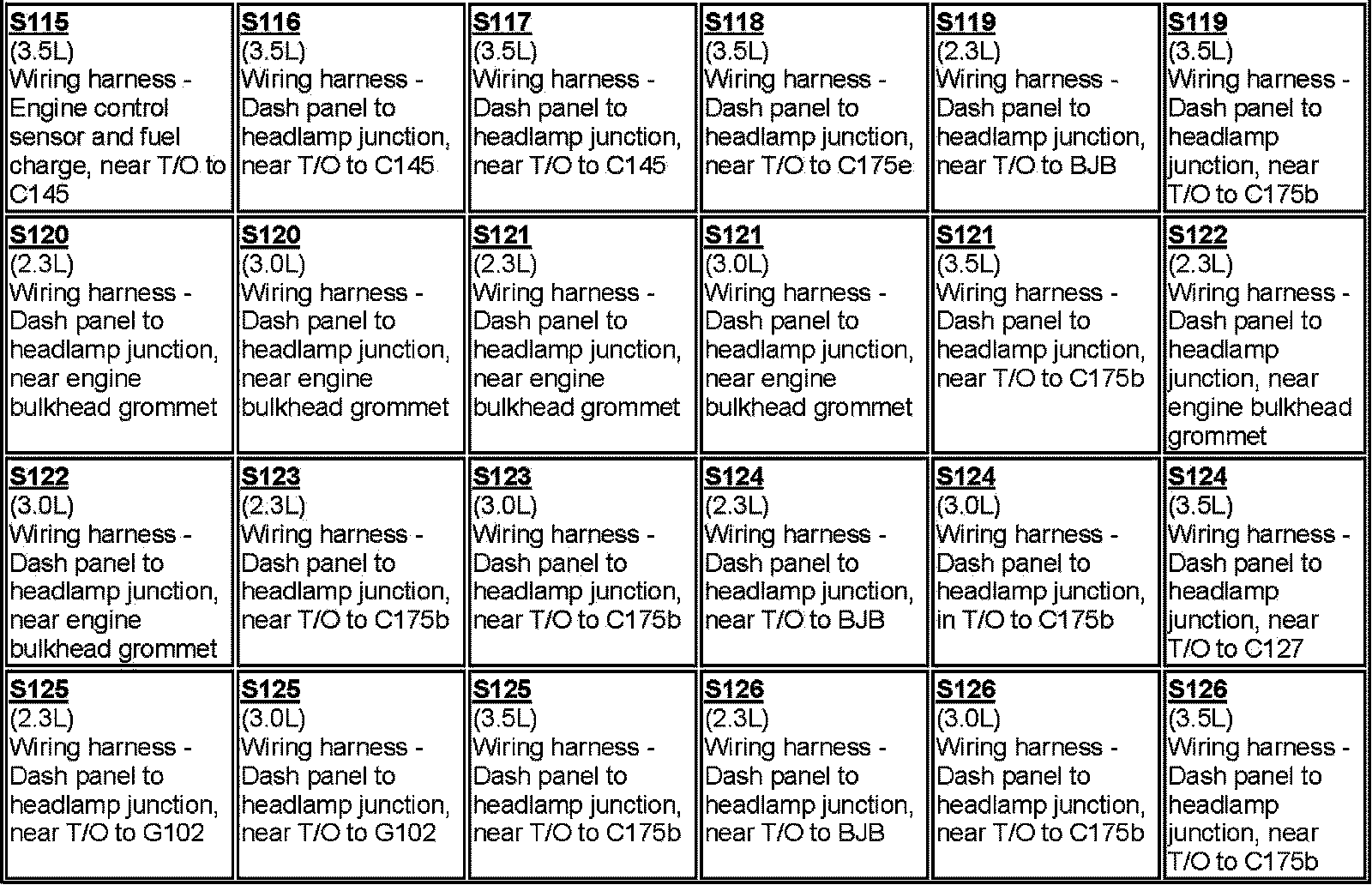

S115-S126:

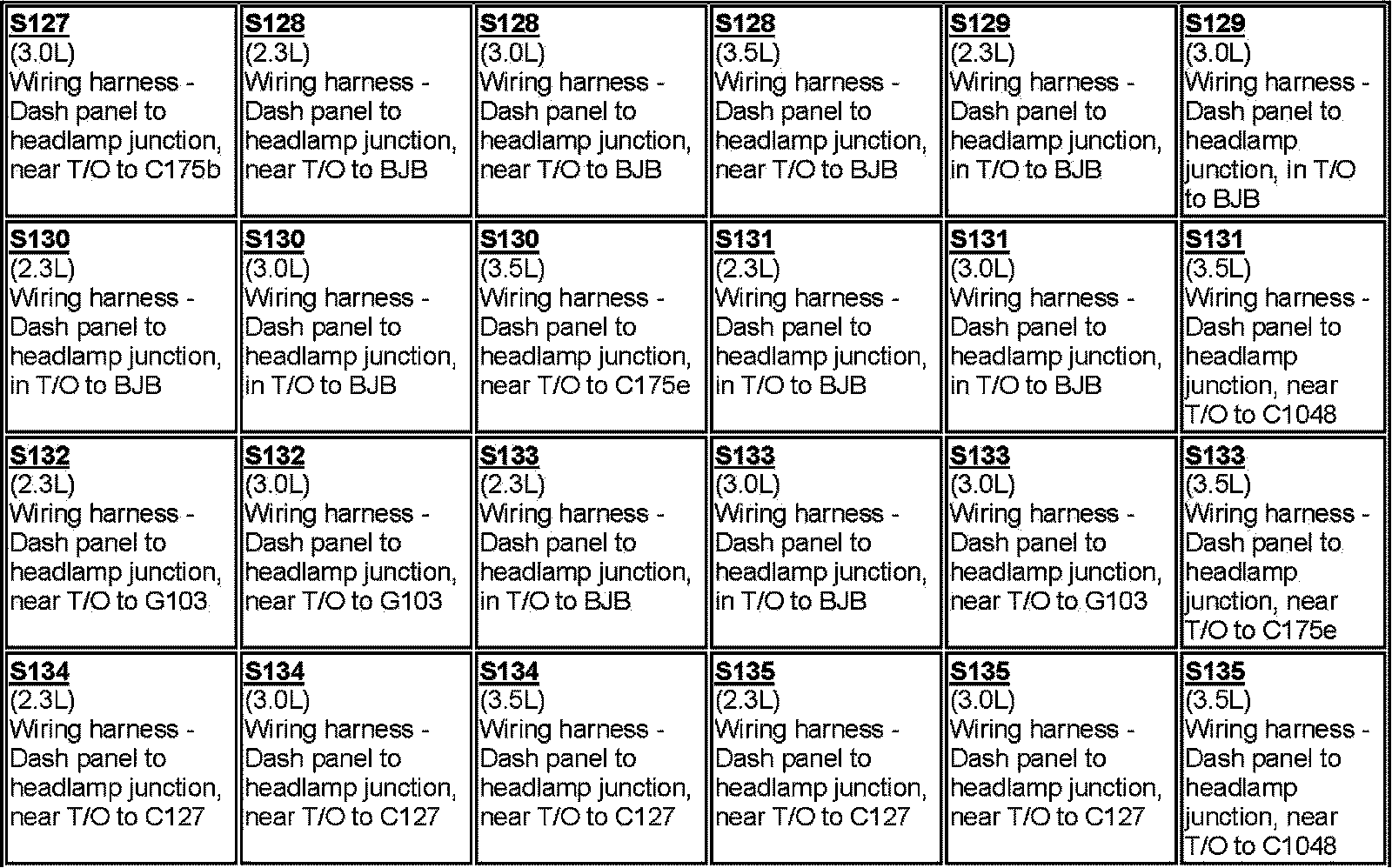

S127-S135:





S136-S145:

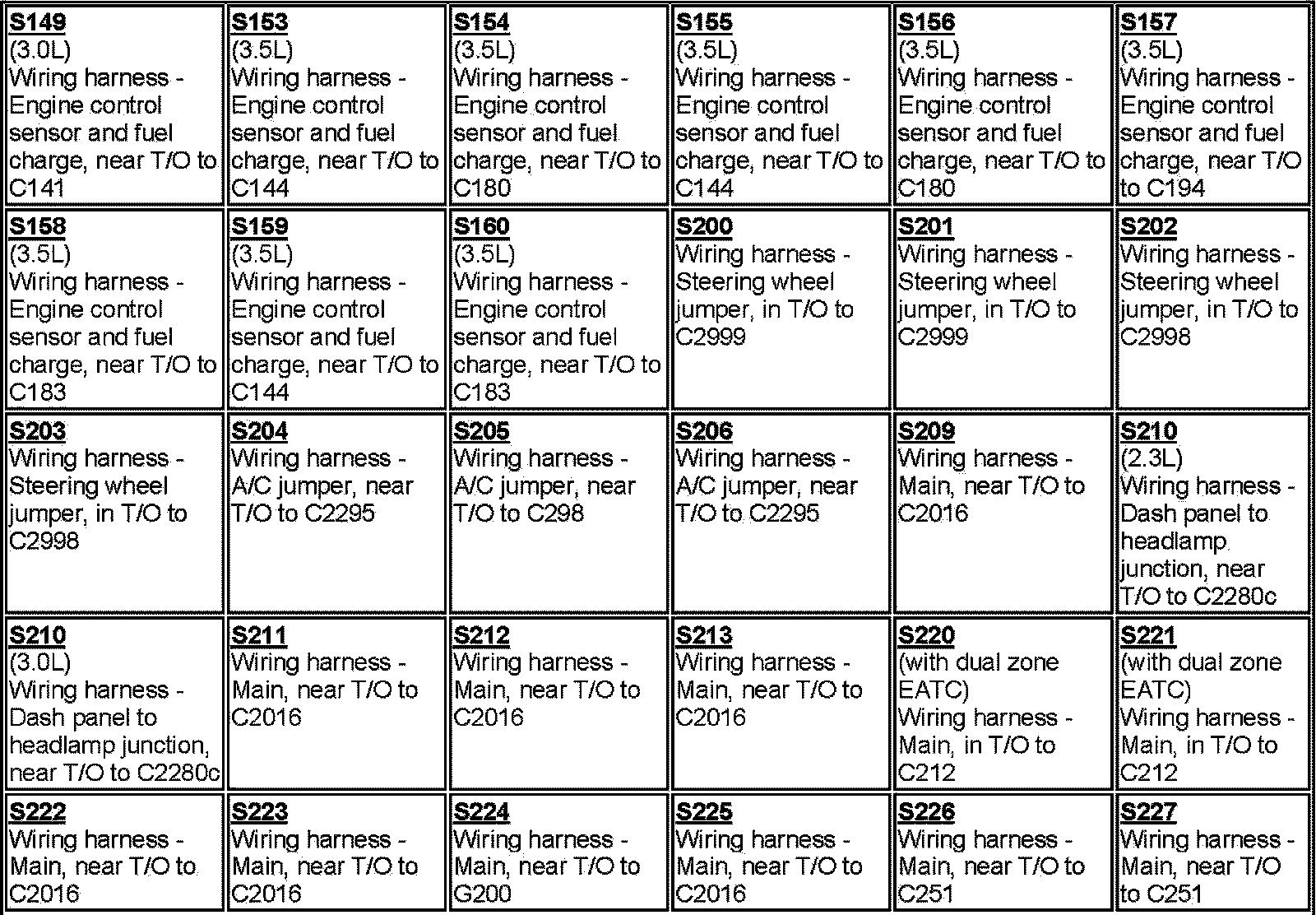

S149-S227:





S228-S327:

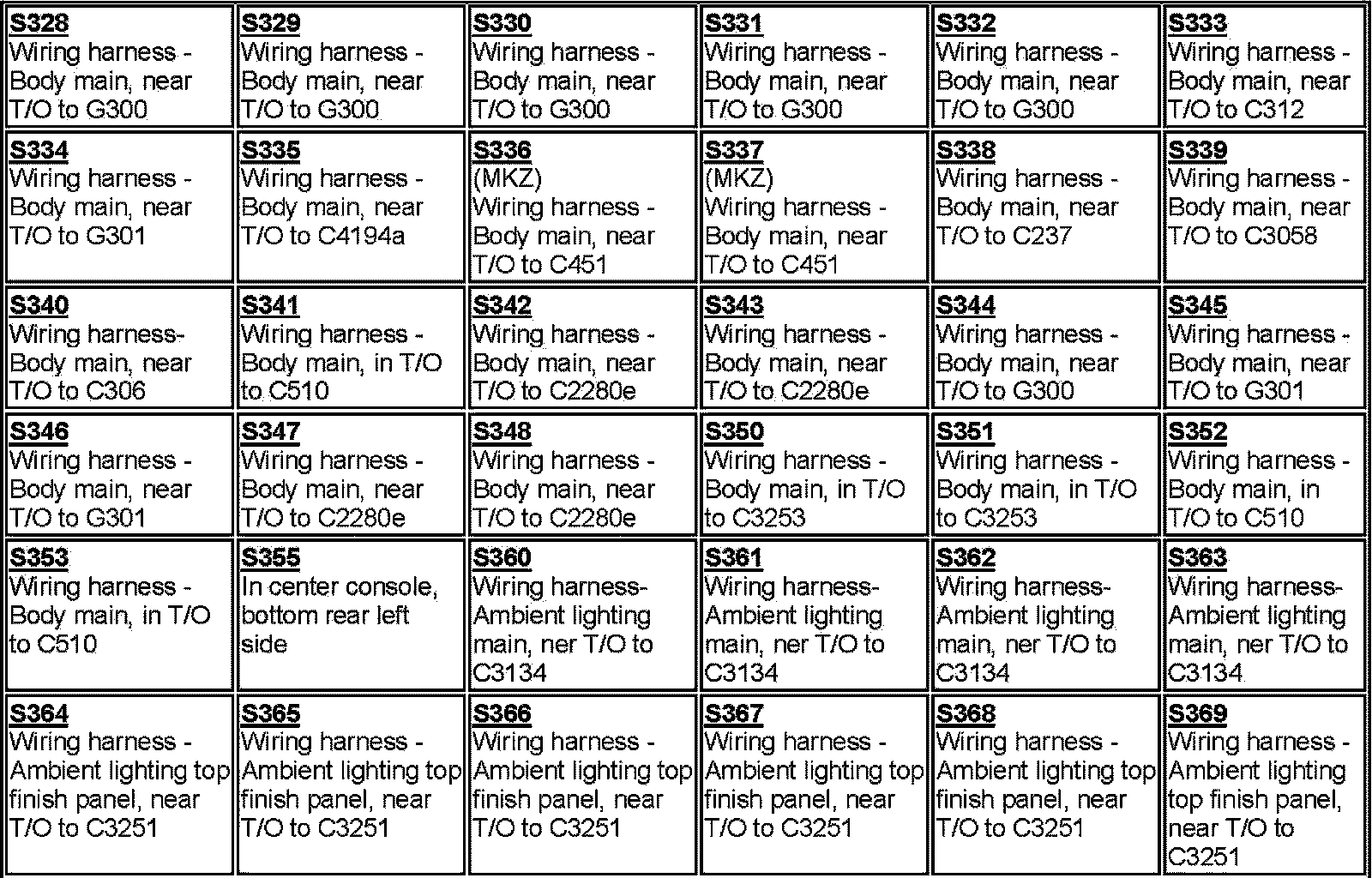

S328-S369:

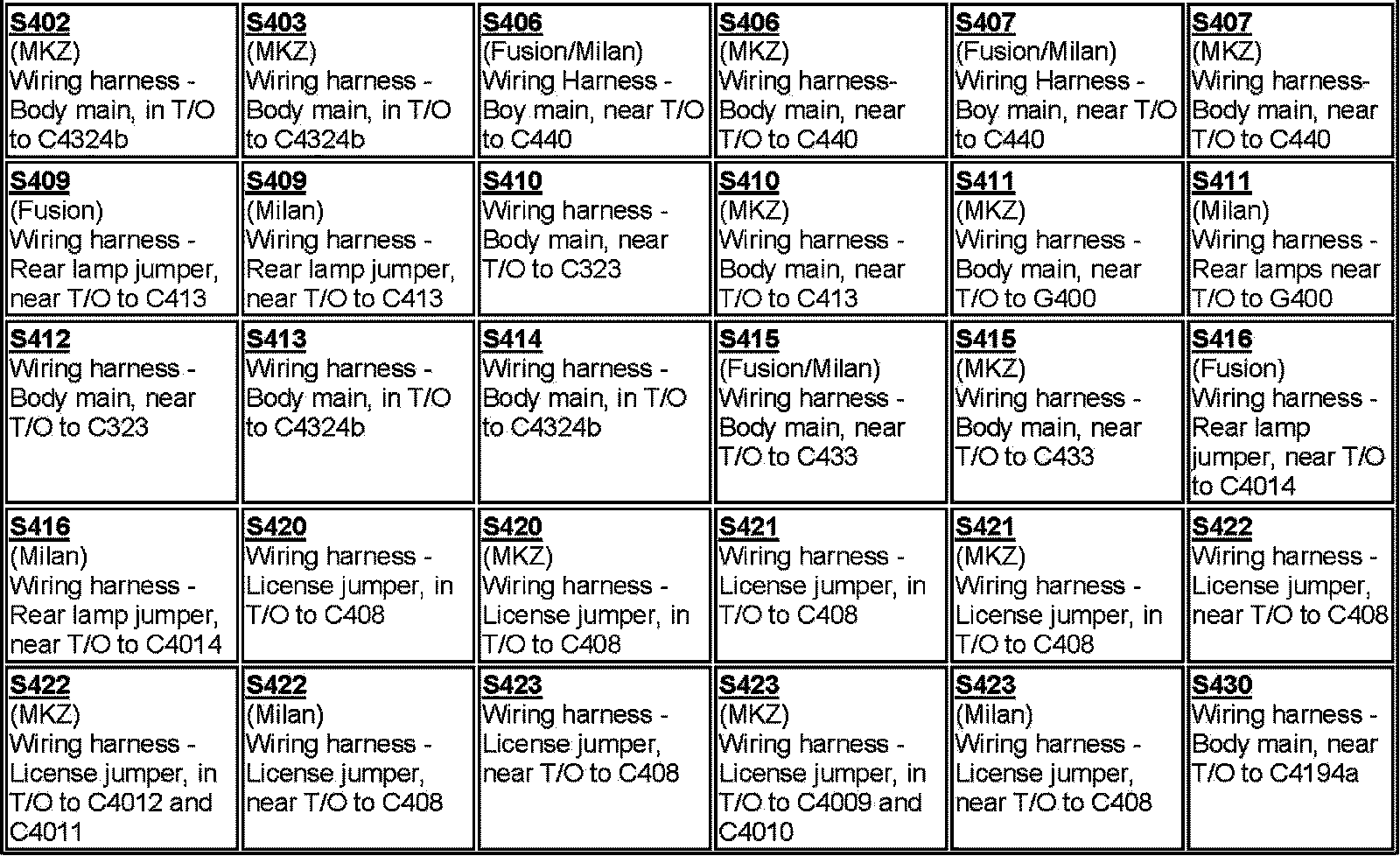

S402-S430:





S431-S903:
