Drive Belt




Accessory Drive

Accessory Drive Belt Routing

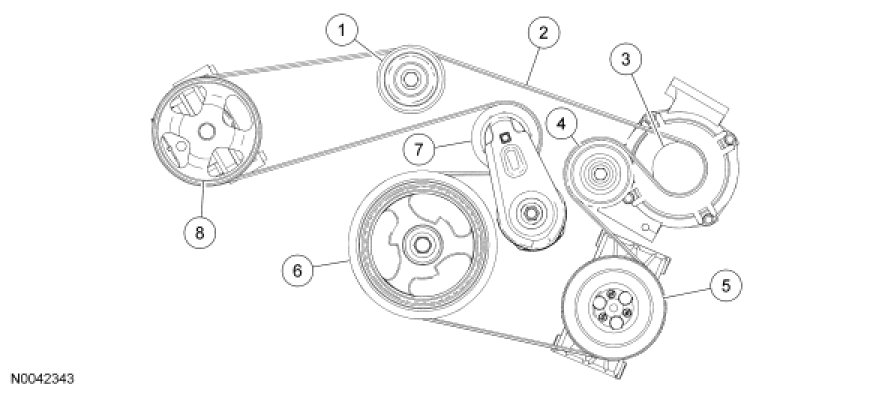

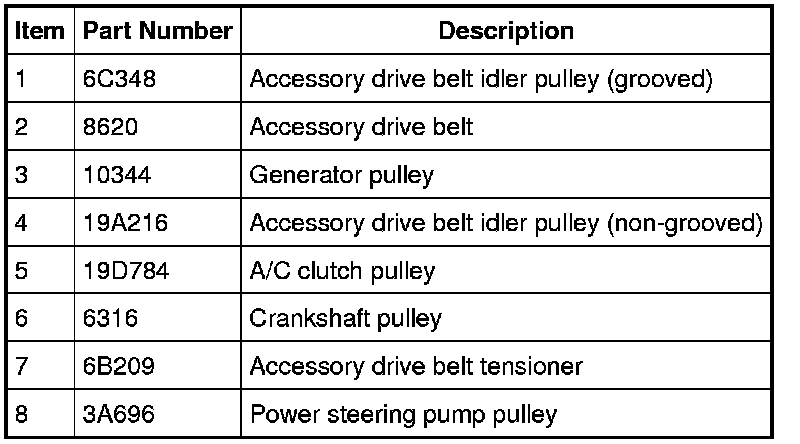

Front End Accessory Drive (FEAD)

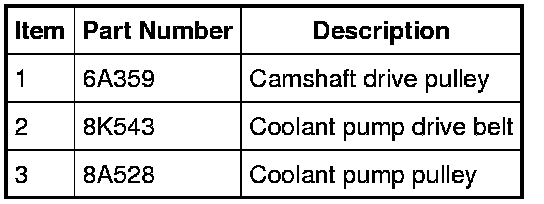

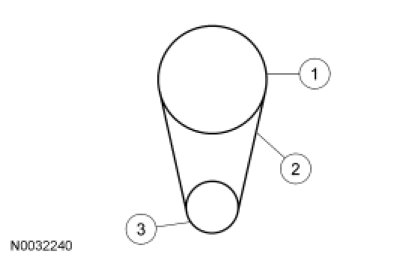

Rear Engine Accessory Drive
