Brake Disc

Brake Disc





NOTE: Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.

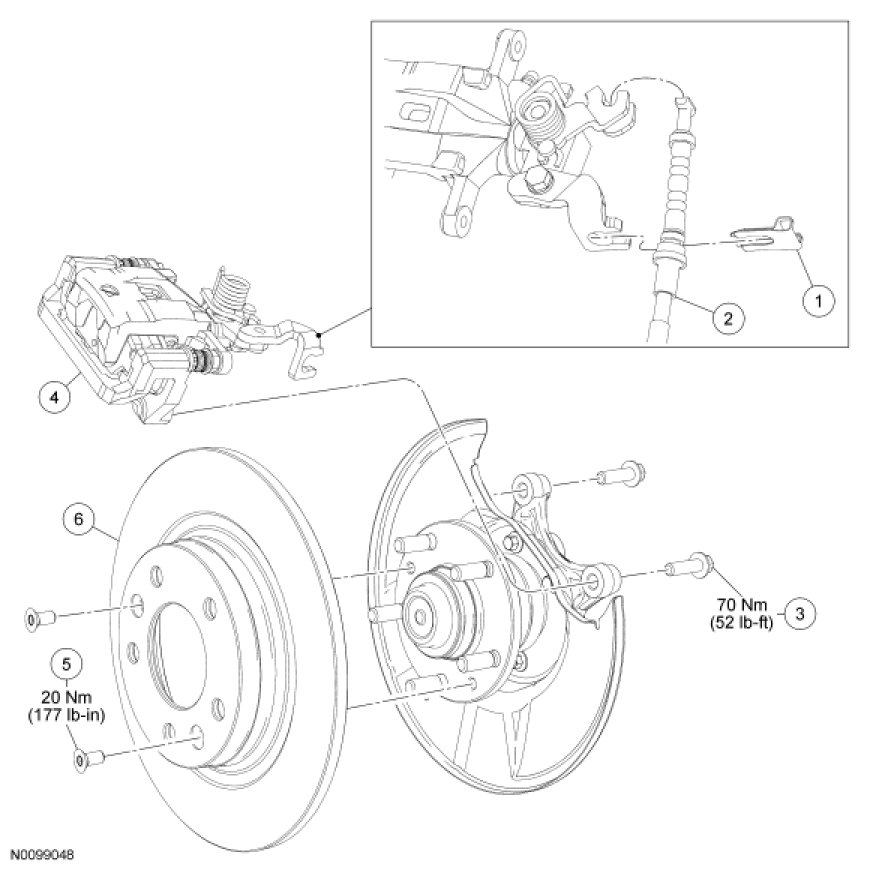

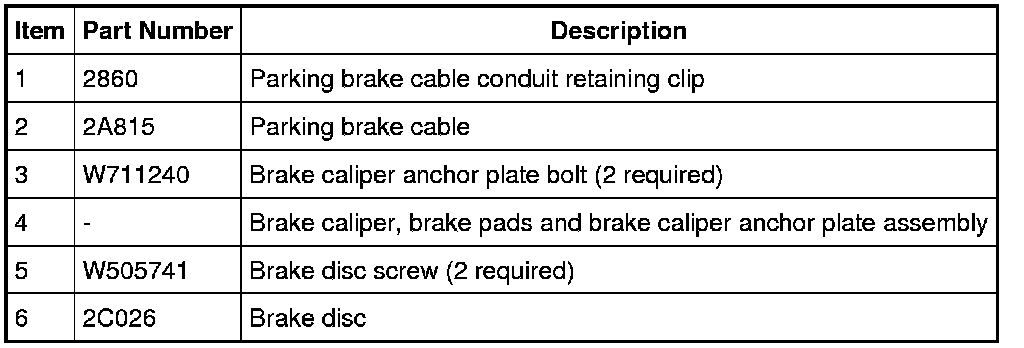

Removal

1. Remove the wheel and tire.

2. Disconnect the parking brake cable from the brake caliper.
- Pull back the parking brake lever.

- Disconnect the cable from the parking brake lever.

- Remove the cable conduit retaining clip.

- Disconnect the cable from the brake caliper.

3. NOTICE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

Remove the 2 brake caliper anchor plate bolts and position the brake caliper, brake pads and brake caliper anchor plate aside as an assembly.

- Support the brake caliper, brake pads and brake caliper anchor plate assembly using mechanic's wire.

4. Remove the 2 brake disc screws and the brake disc.

Installation

1. NOTE: Make sure the brake disc-to-hub mounting surface is free of rust and foreign material before applying anti-seize lubricant.

Install the brake disc and the 2 brake disc screws.

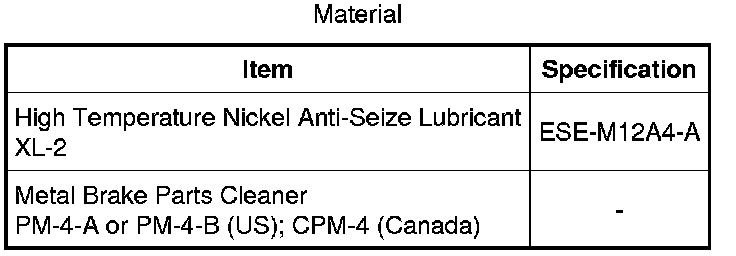

- Using the specified brake cleaner, clean the mating surfaces.

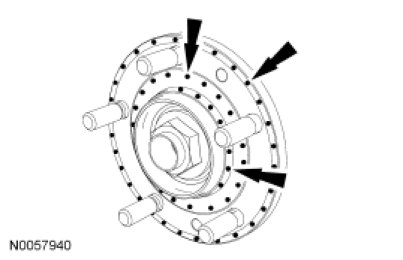

- Apply specified lubricant as shown.

- Tighten the screws to 20 Nm (177 lb-in).





2. NOTE: Make sure that the brake caliper hose is not twisted.

Position the brake caliper, brake pads and brake caliper anchor plate assembly and install the 2 brake caliper anchor plate bolts.

- Tighten to 70 Nm (52 lb-ft).

3. Install the parking brake cable to the brake caliper.
- Pull back the parking brake lever.

- Connect the cable to the parking brake lever.

- Install the cable conduit retaining clip.

4. Install the wheel and tire.

5. Cycle the park brake several times to verify normal operation.
- Apply brakes several times to verify correct brake operation.
