Spoiler: Service and Repair

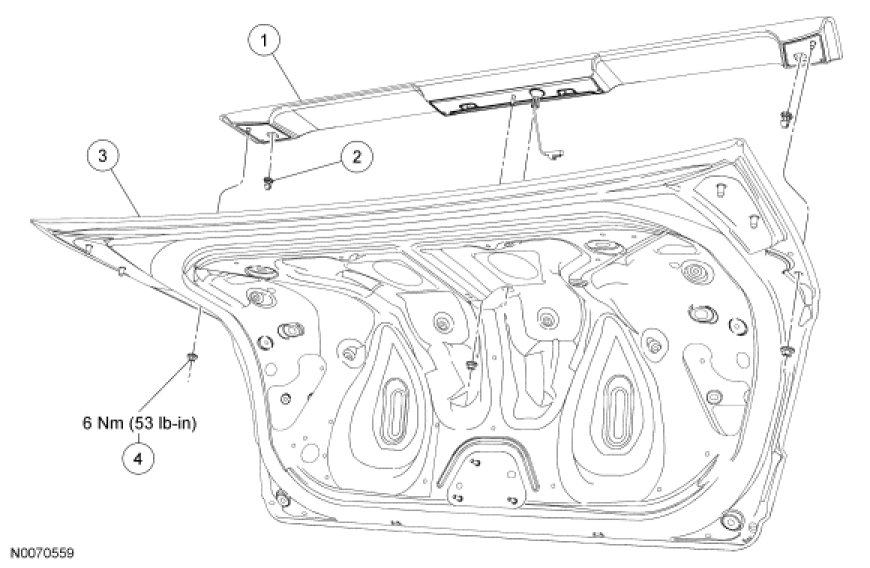

Spoiler

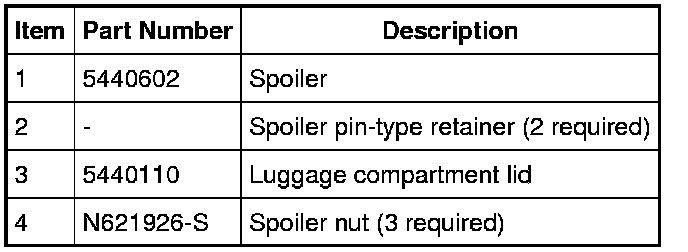

Spoiler

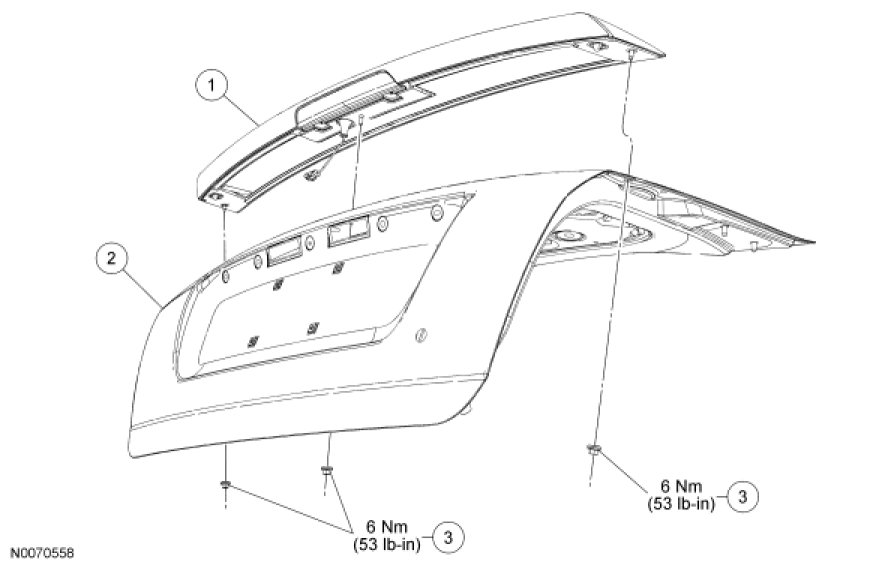

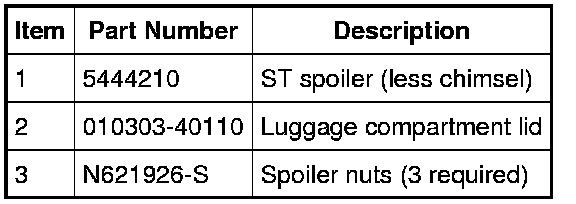

Spoiler - ST









Removal and Installation

All vehicles

1. Open the luggage compartment lid.

2. Remove the luggage compartment lid.
- Remove the pushpin retainers.

- Remove the insulator.

3. Disconnect the spoiler electrical connector.

4. Remove the spoiler-to-luggage compartment lid nuts.
- To install, tighten to 6 Nm (53 lb-in).

ST spoiler only

5. Separate the tape from the luggage compartment lid along the front edge of the spoiler.

All vehicles

NOTE: There are 2 pin-type retainers on the bottom of the spoiler. If the pin-type retainers break during removal, a new spoiler must be installed.

NOTE: Clean the luggage compartment lid surface prior to installing the spoiler, and press along the front edge of the spoiler after securing the fasteners to make sure of correct tape adhesion.

6. Using a suitable tool, slide between the luggage compartment lid and the spoiler at each end until contact is made with the pin-type retainers. Push in the pin-type retainer and pull up on the spoiler to release the spoiler from the luggage compartment lid.

7. Remove the spoiler.

8. To install, reverse the removal procedure.
