Radiator Grille - Fusion

Radiator Grille - Fusion

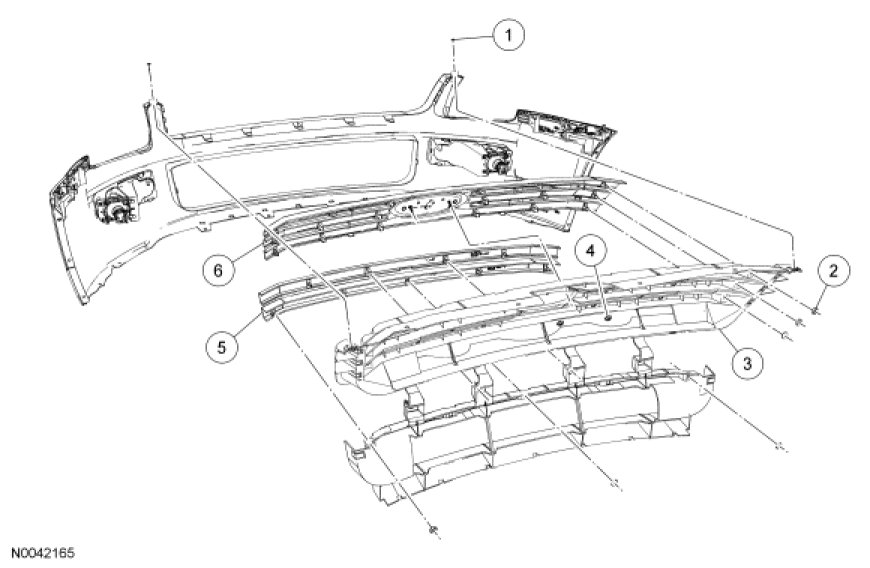

1. Remove the front bumper cover.

2. Remove the screws from the radiator grille-to-bumper cover.

3. Disengage the radiator grille from the clips on the bumper cover.

4. Remove the radiator grille.

5. To install, reverse the removal procedure.
