Test C: The Wipers Do Not Operate Correctly

PINPOINT TEST C: THE WIPERS DO NOT OPERATE CORRECTLY

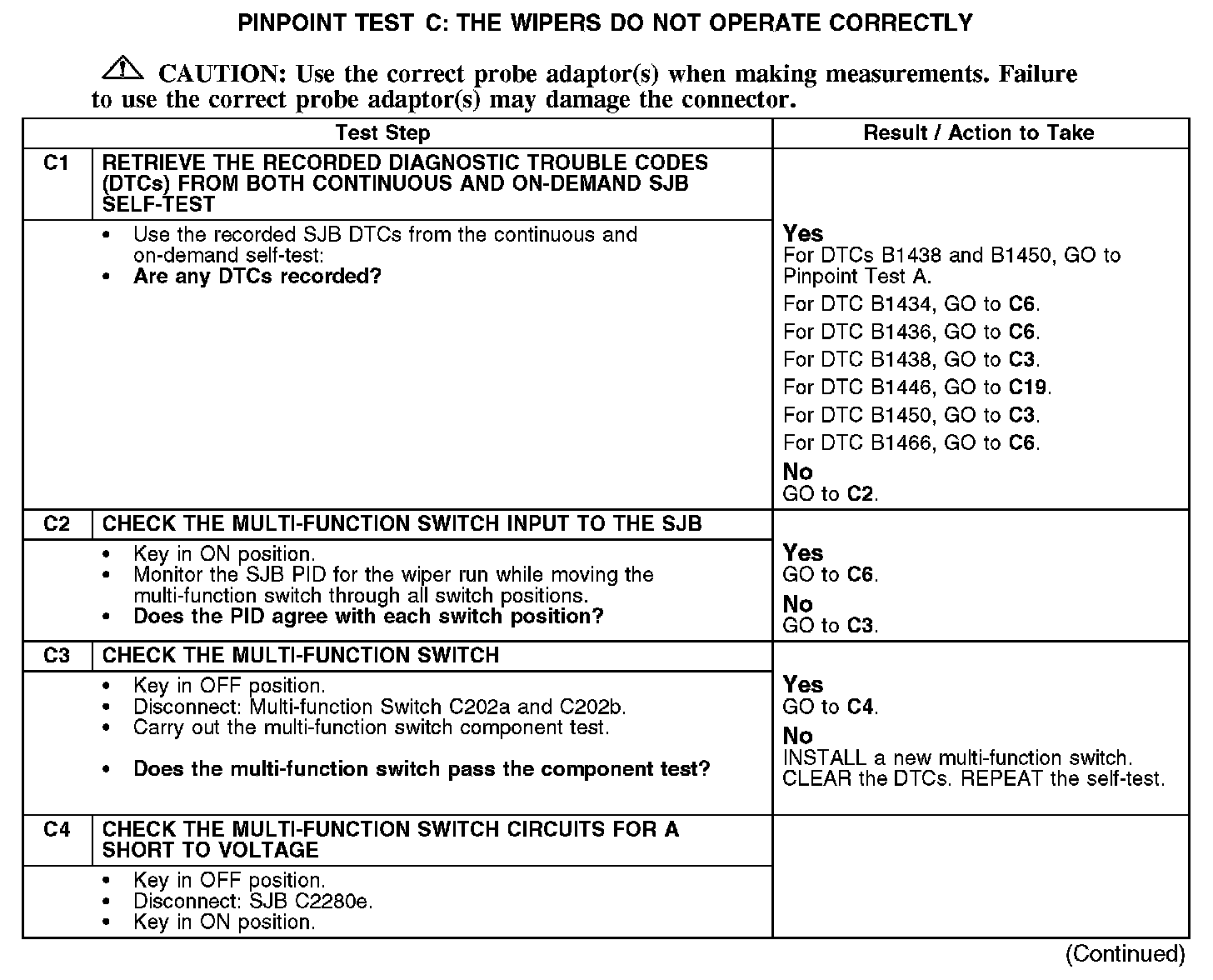

C1-C4:

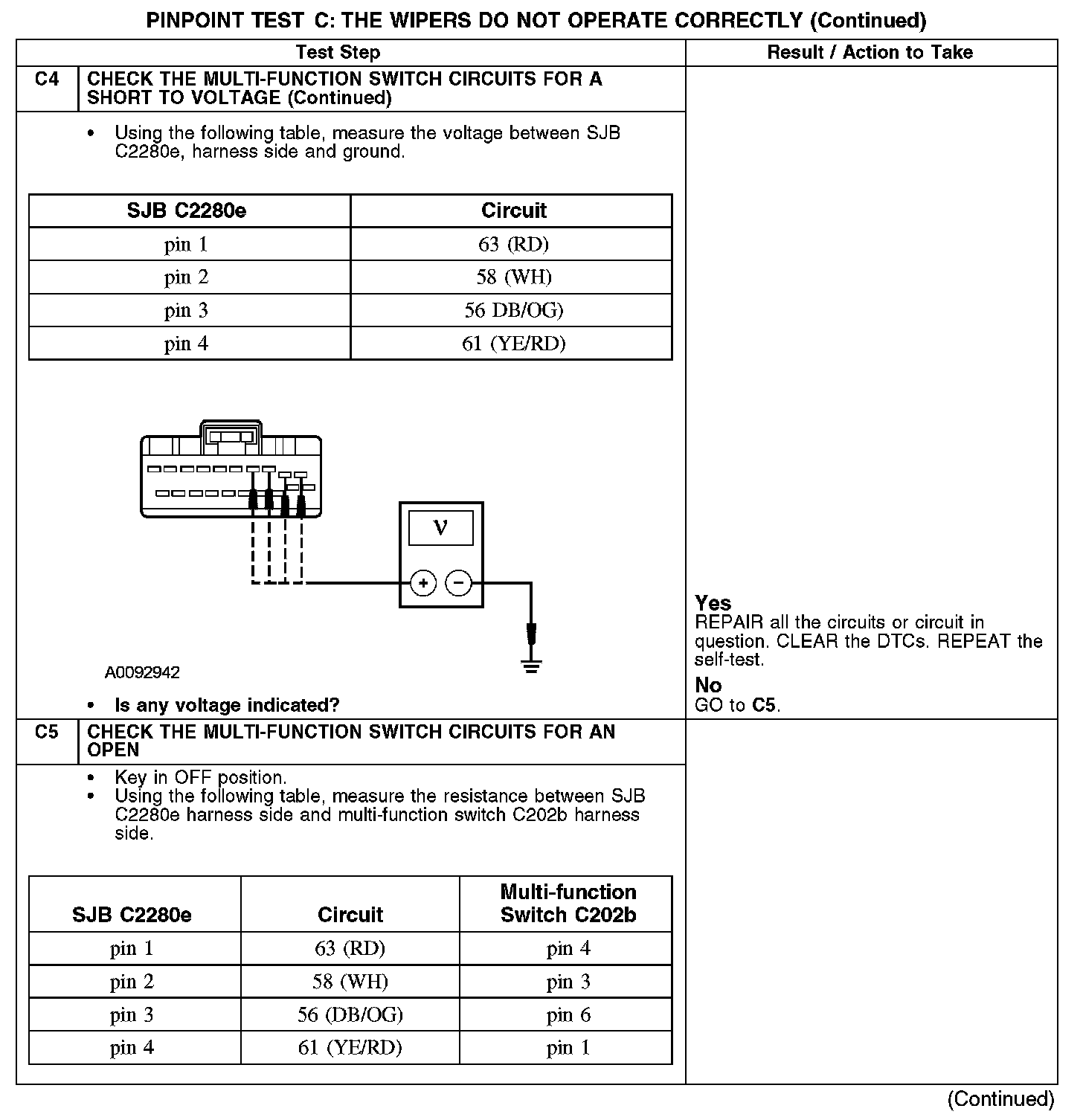

C4-C5:

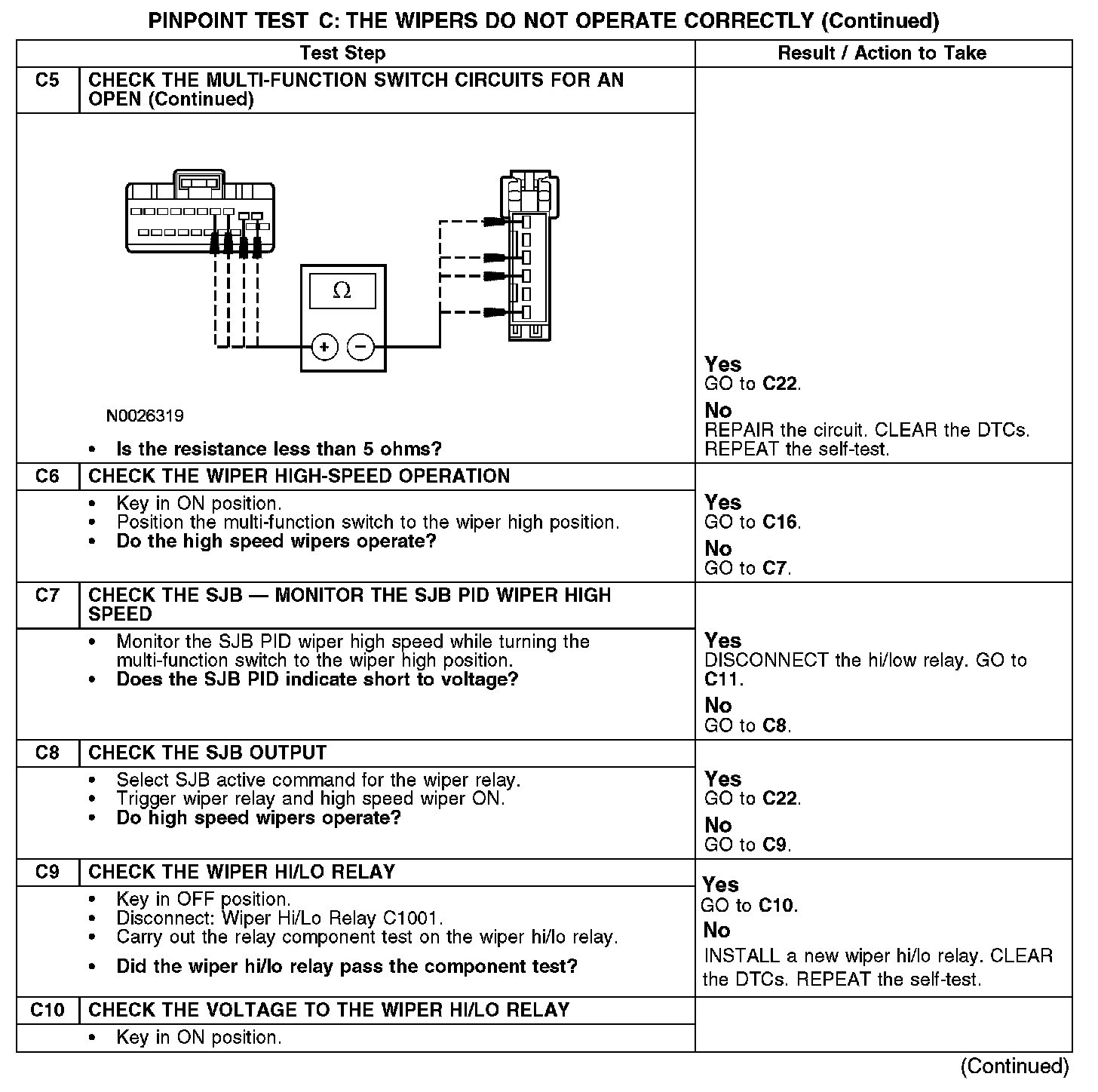

C5-C10:

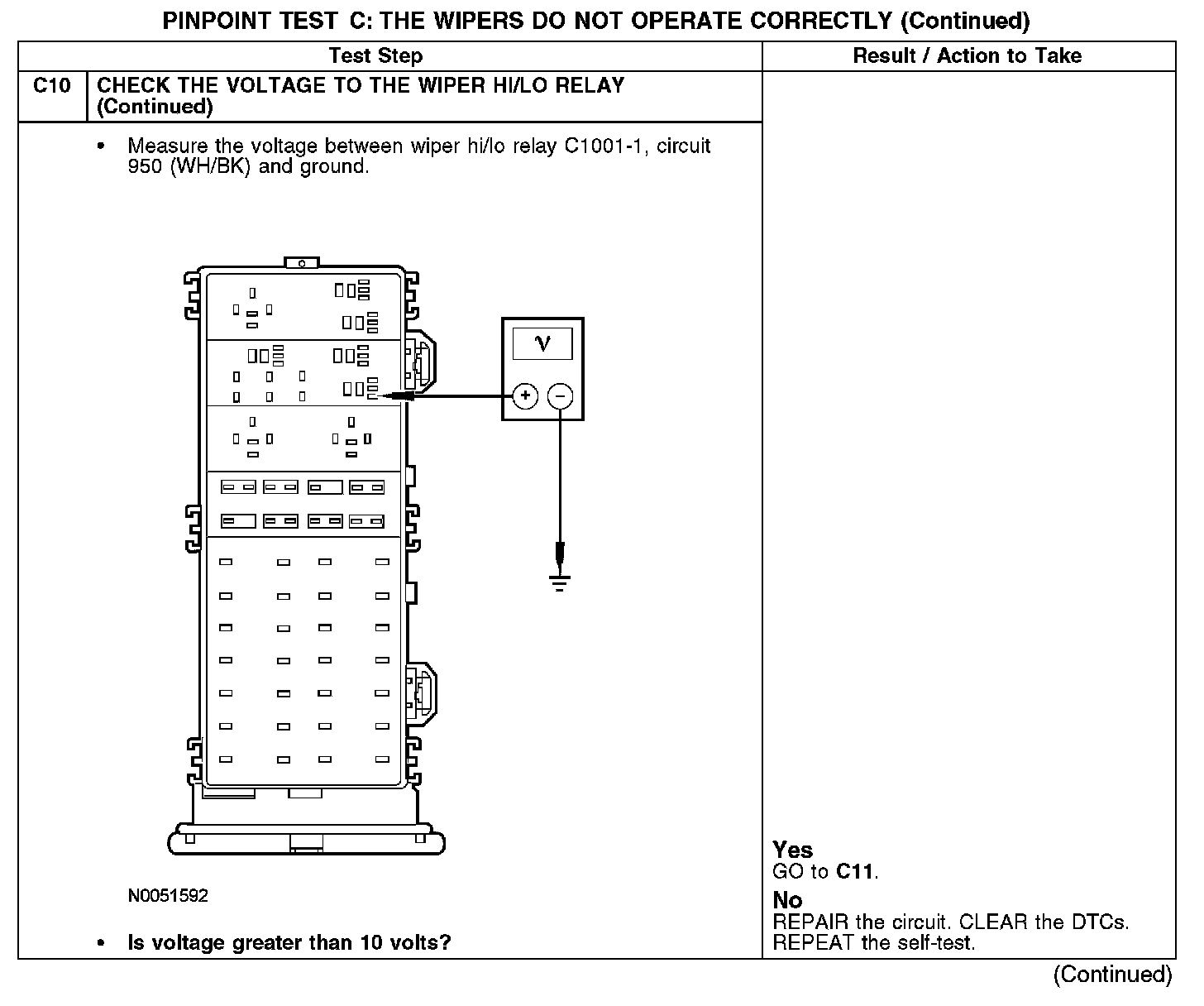

C10 Continued:

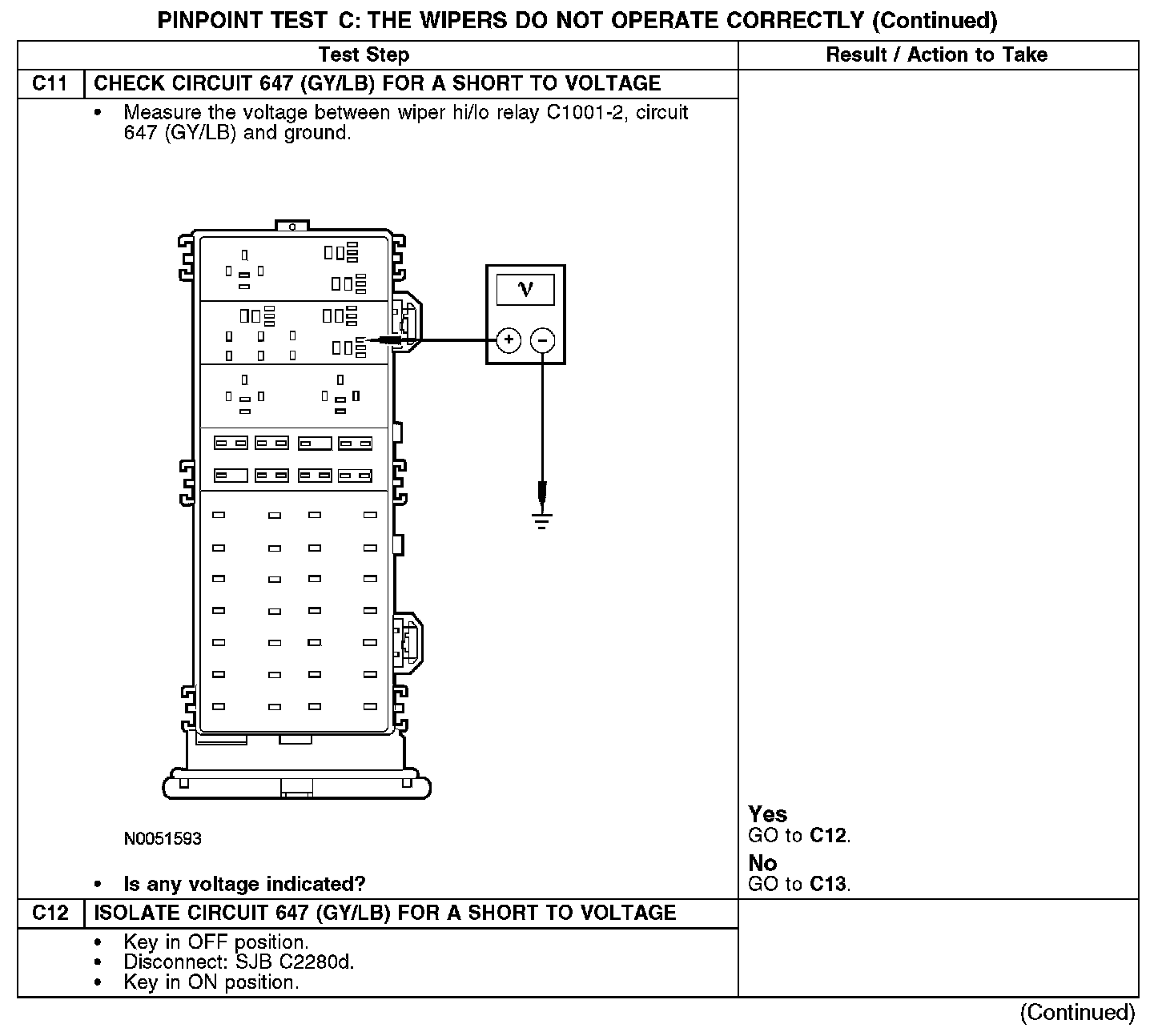

C11-C12:

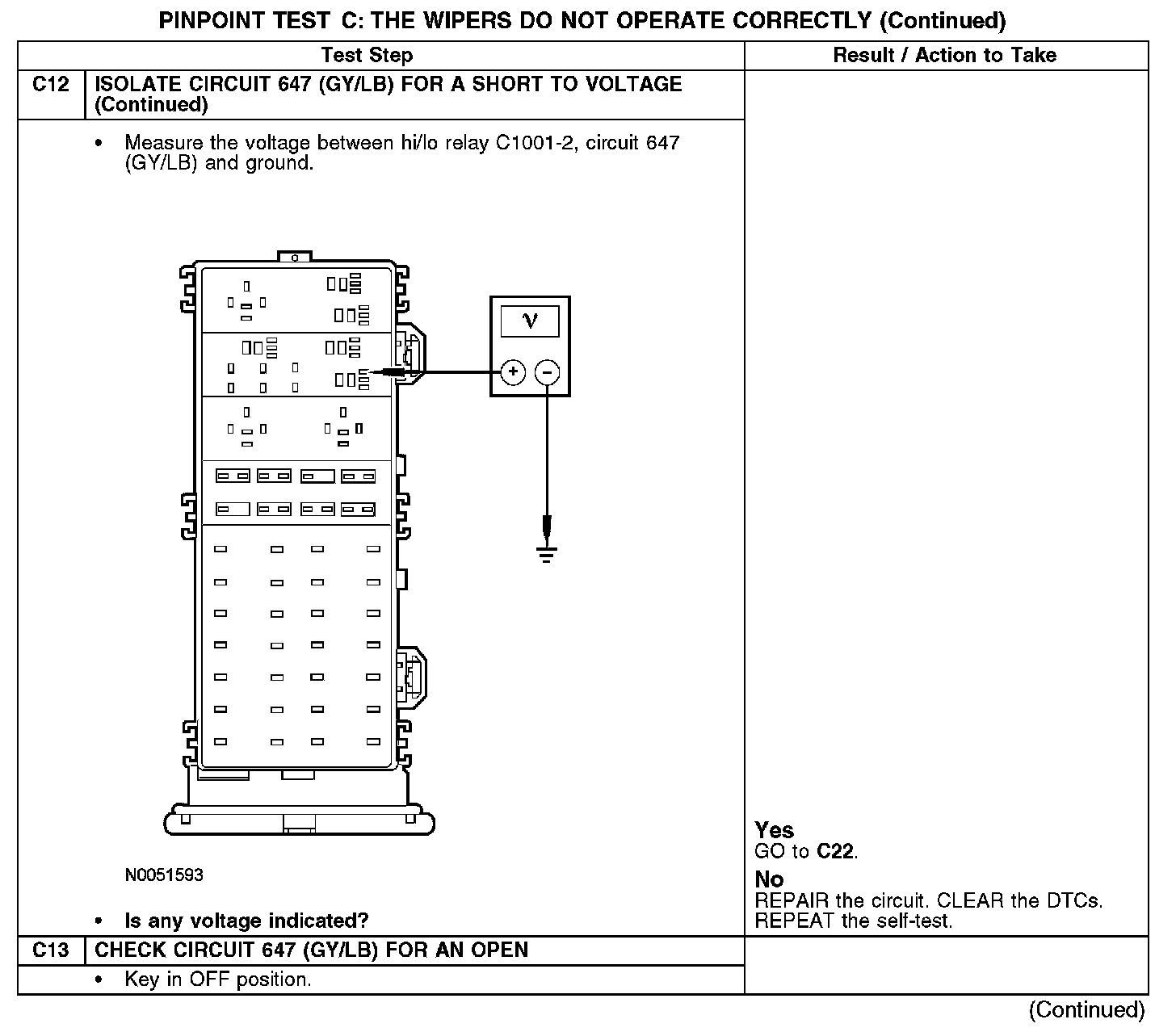

C12-C13:

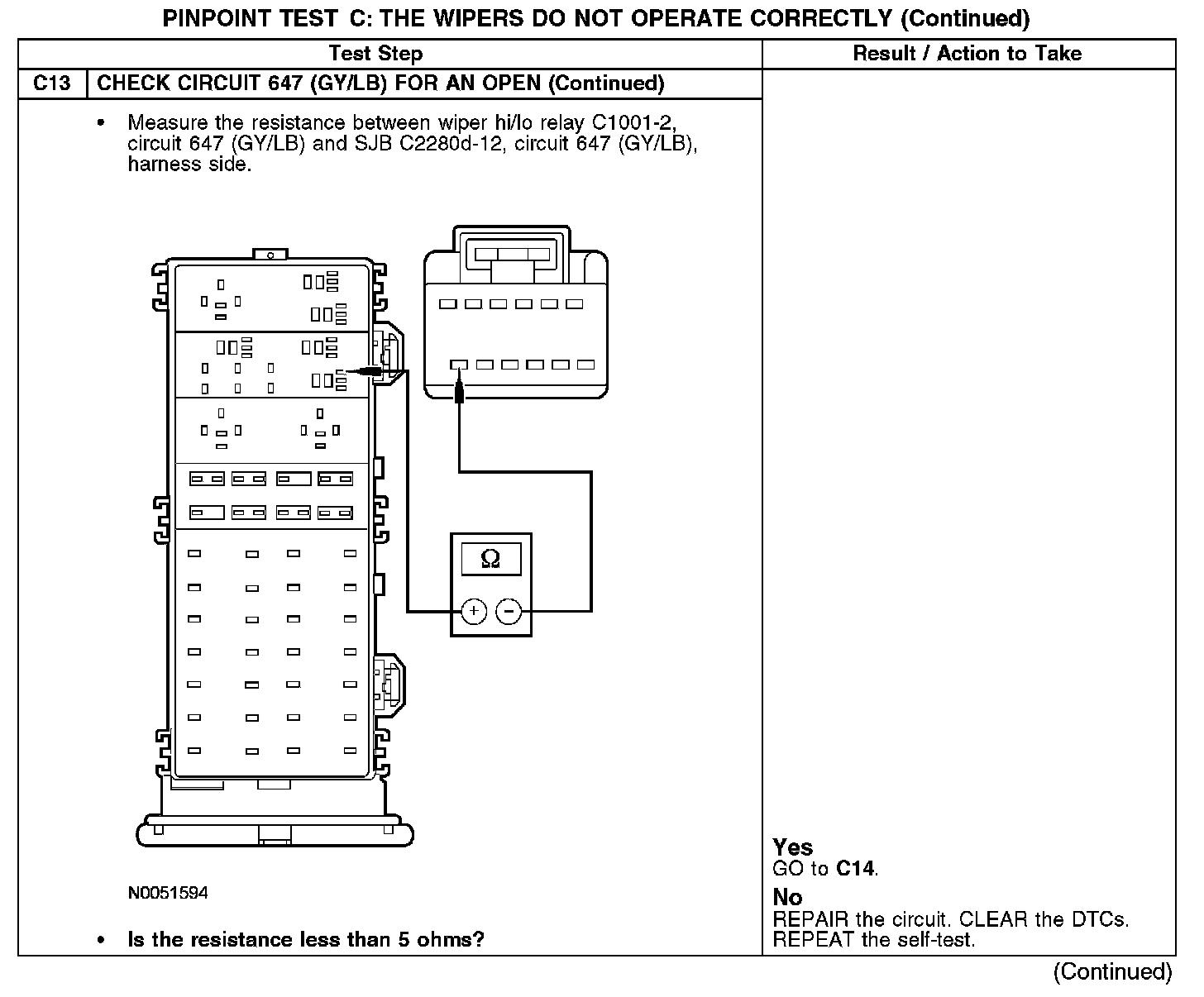

C13 Continued:

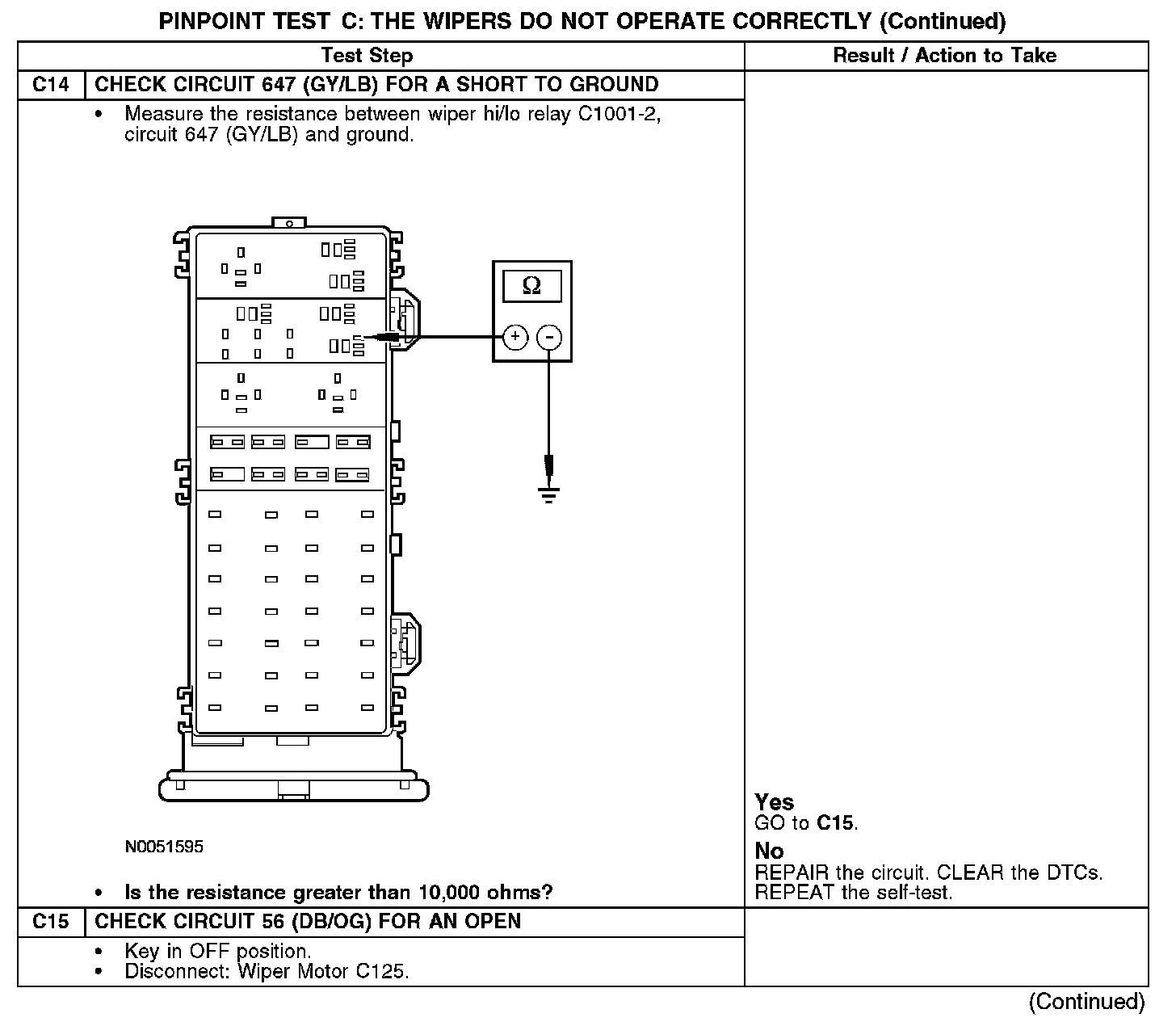

C14-C15:

C15-C17:

C17-C19:

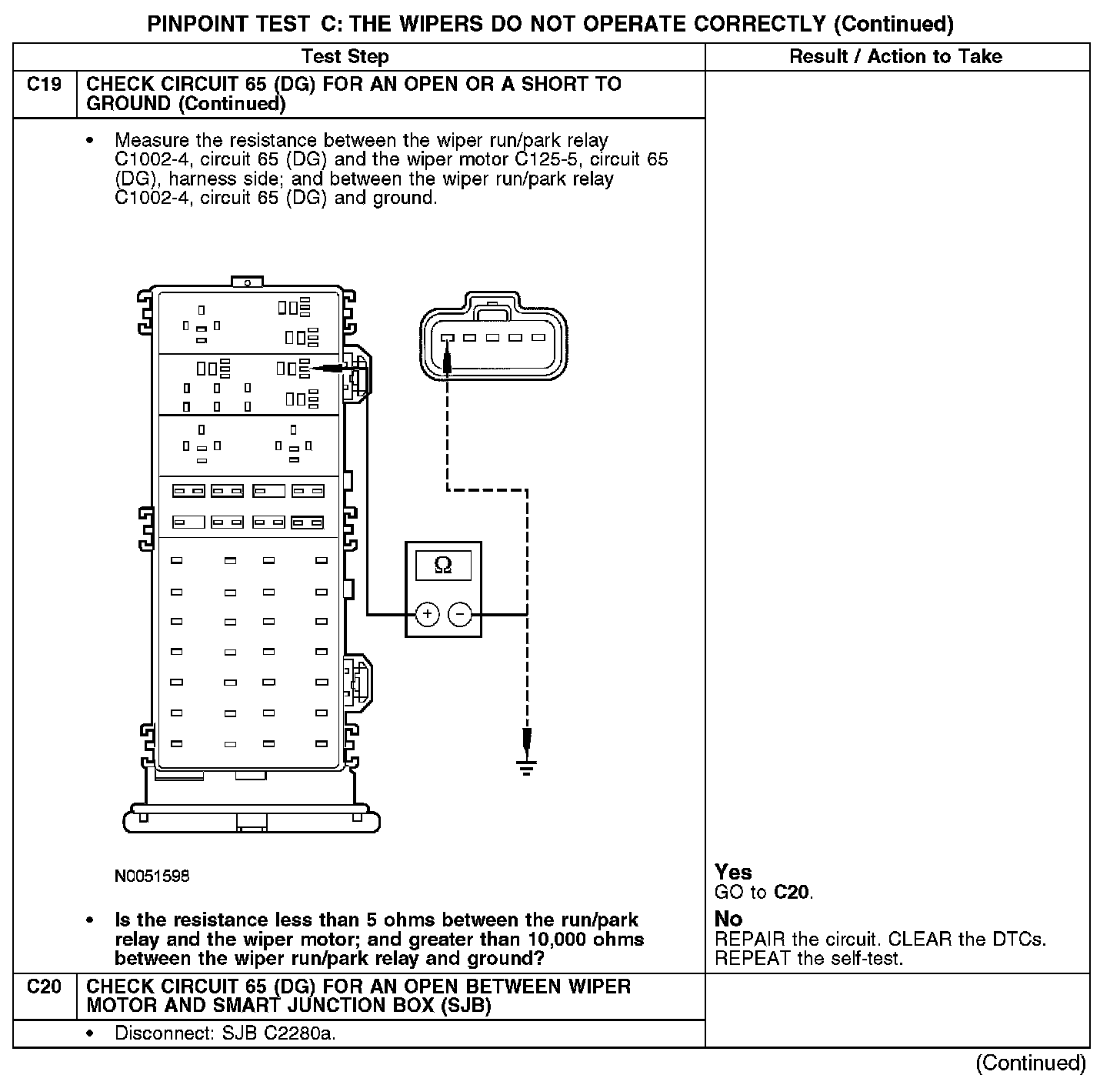

C19-C20:

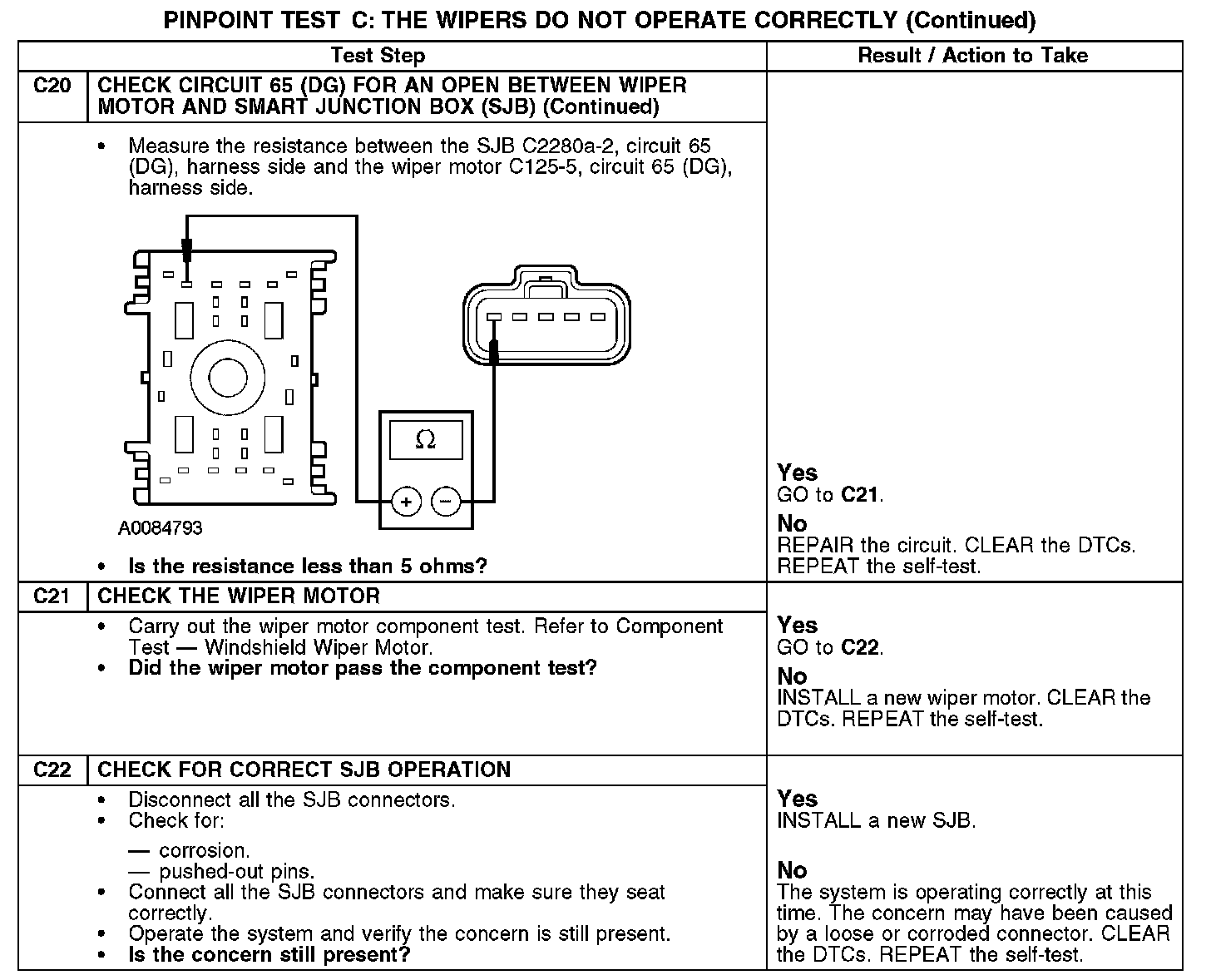

C20-C22:

Normal Operation
With the ignition switch in the RUN or ACC position, the wiper run/park relay receives voltage from the smart junction box (SJB) through circuit 950 (WH/BK). When low speed wiper operation is selected, the SJB provides a ground path for the run/park relay coil through circuit 646 (YE/WH). The relay directs voltage from circuit 61 (YE/RD) through the hi/low relay to the wiper motor through circuit 58 (WH). When high speed wiper operation is selected, the SJB also provides a ground path for the hi/low relay coil through circuit 647 (GY/LB). Voltage is sent from the hi/low relay through circuit 58 (DB/OG) to the wiper motor. The wiper motor is grounded through circuit 57 (BK). When the wipers are turned off, the SJB de-energizes the run/park relay coil. Voltage continues to supply the hi/low relay through circuit 65 (DG) until the wiper mechanism contacts the run/park switch, which opens the circuit.

Possible Causes
- Circuit 56 (DB/OG) open or short to voltage
- Circuit 57 (BK) open
- Circuit 58 (WH) open or short to voltage
- Circuit 61 (YE/RD) open or short to voltage
- Circuit 63 (RD) open or short to voltage
- Circuit 65 (DG) open or short to ground
- Circuit 647 (GY/LB) open, short to voltage or short to ground
- Circuit 950 (WH/BK) open
- Multi-function switch
- Wiper hi/low relay
- SJB
- Wiper motor
